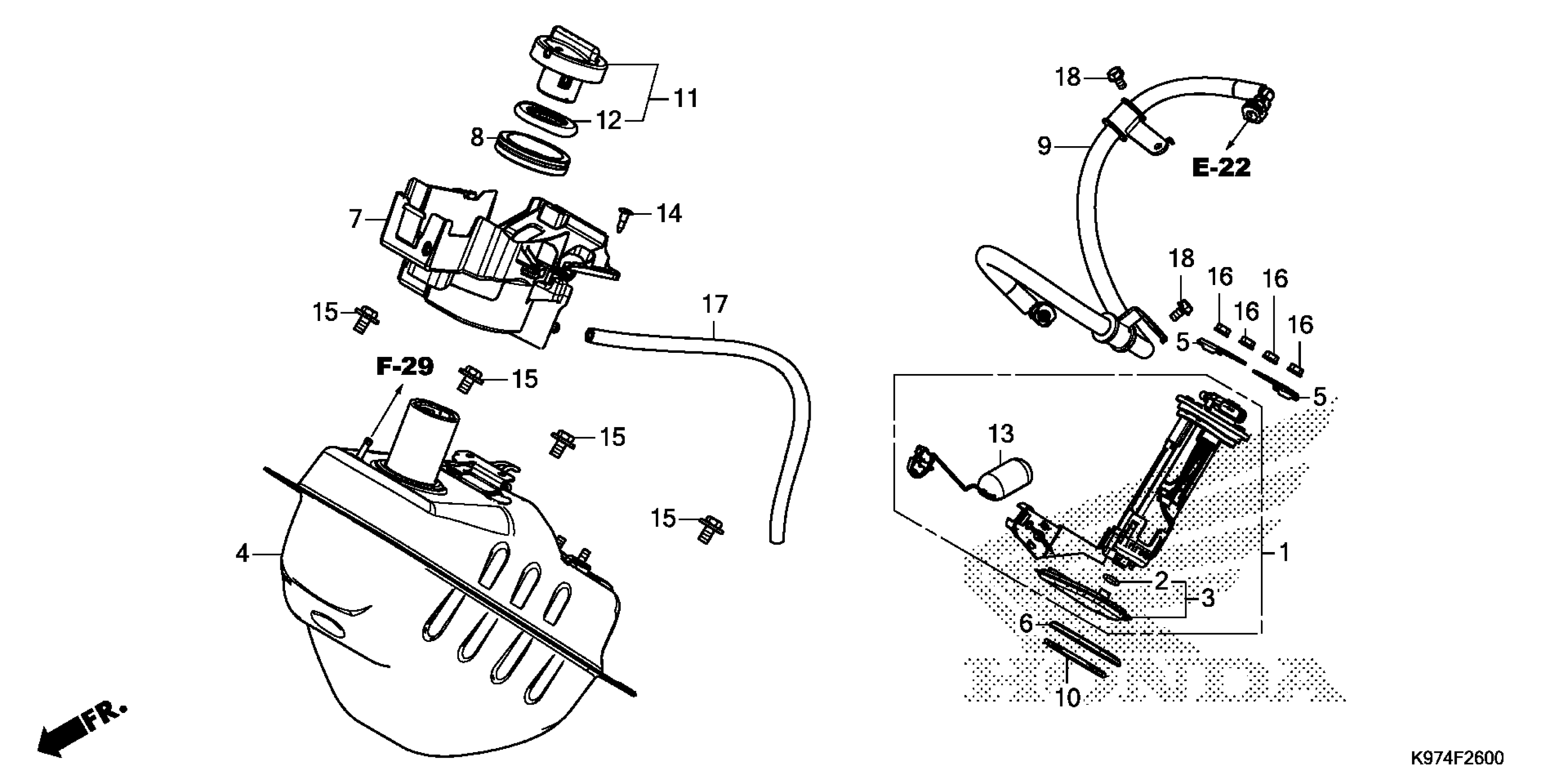

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 FUEL TANK Diagram

UNIT, FUEL PUMP

16700-K97-T01

$152.18

O-RING (6.8X1.9)

16706-GGL-J01

$4.85

FILTER SET

16707-K12-901

$136.11

TANK, FUEL

17510-K96-V00

$50.52

RETAINER, FUEL PUMP

17517-GGL-J00

$7.36

DUST SEAL

17518-GHB-603

$1.85

TRAY, FUEL

17525-K97-T00

$5.83

RUBBER, FUEL SEAL

17527-K35-V00

$1.49

HOSE COMP, FUEL FEED

17570-K97-T01

$79.08

O-RING, FUEL PUMP (ARAI)

17572-GHB-601

$9.32

CAP, FUEL FILLER This part replaces 17620-KWN-981.

17620-KWN-982

$42.93

CAP, FUEL FILLER

17620-KWN-982

$42.93

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

$7.79

GASKET, FUEL FILLER CAP

17632-383-832

$7.79

FUEL UNIT

37800-K97-T01

$119.07

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

BOLT-WASHER (8X16)

93404-08016-08

$1.83

NUT, FLANGE (6MM)

94050-06000

$1.49

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62
