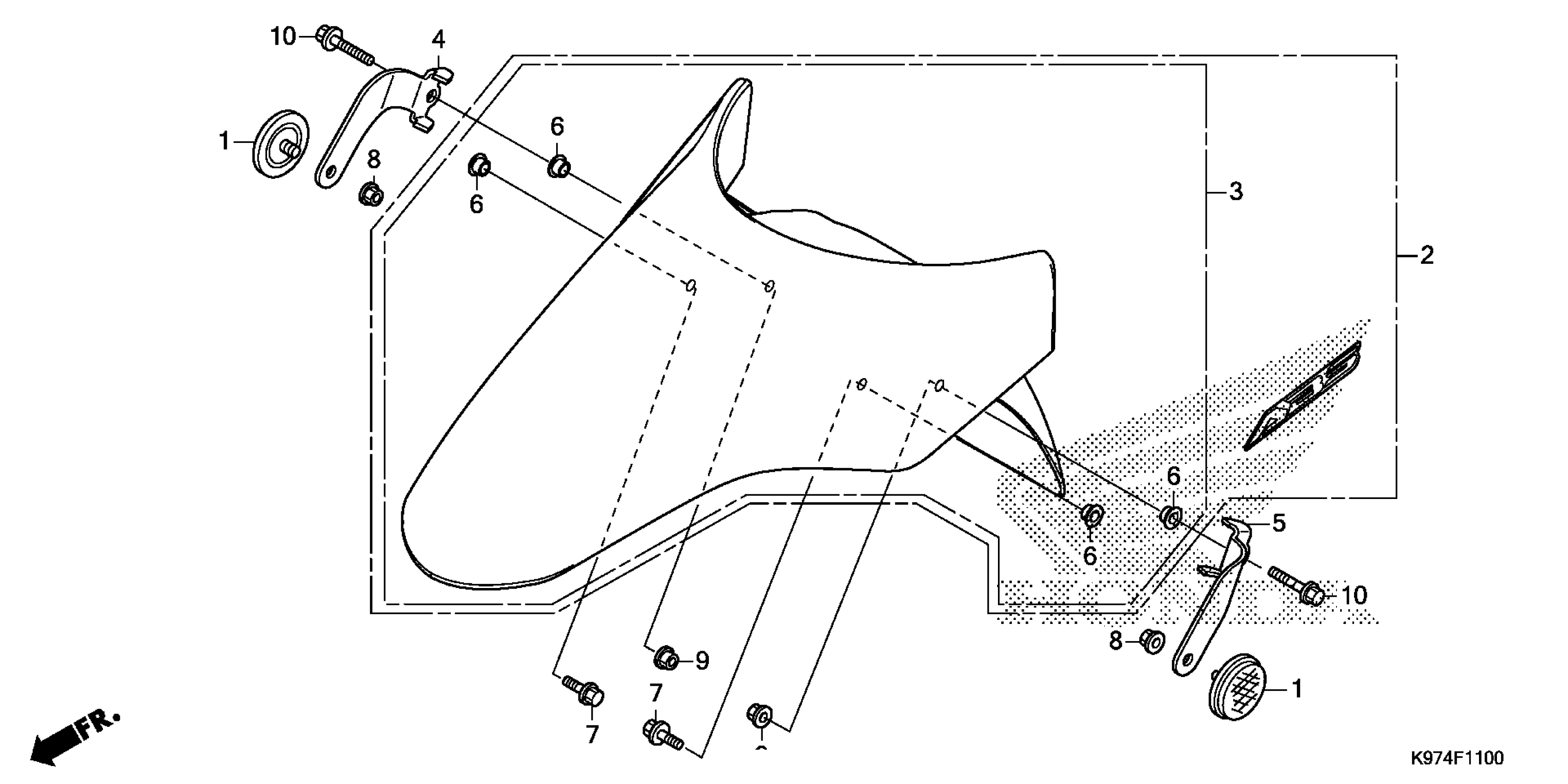

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 FRONT FENDER Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$8.74

2

FENDER SET, FR. (TYPE2) (WL)

61000-K97-J30ZD

$21.59

4

STAY R, FR.

61104-K96-T00

$1.07

5

STAY L, FR.

61105-K96-T00

$1.07

6

COLLAR, FR. FENDER

61112-K97-T00

$1.90

7

BOLT, SETTING (6X16)

90101-KVY-900

$1.10

8

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26

9

NUT, FLANGE (6MM)

94050-06080

$0.59

10

BOLT, FLANGE (6X40)

96001-06040-07

$1.28
