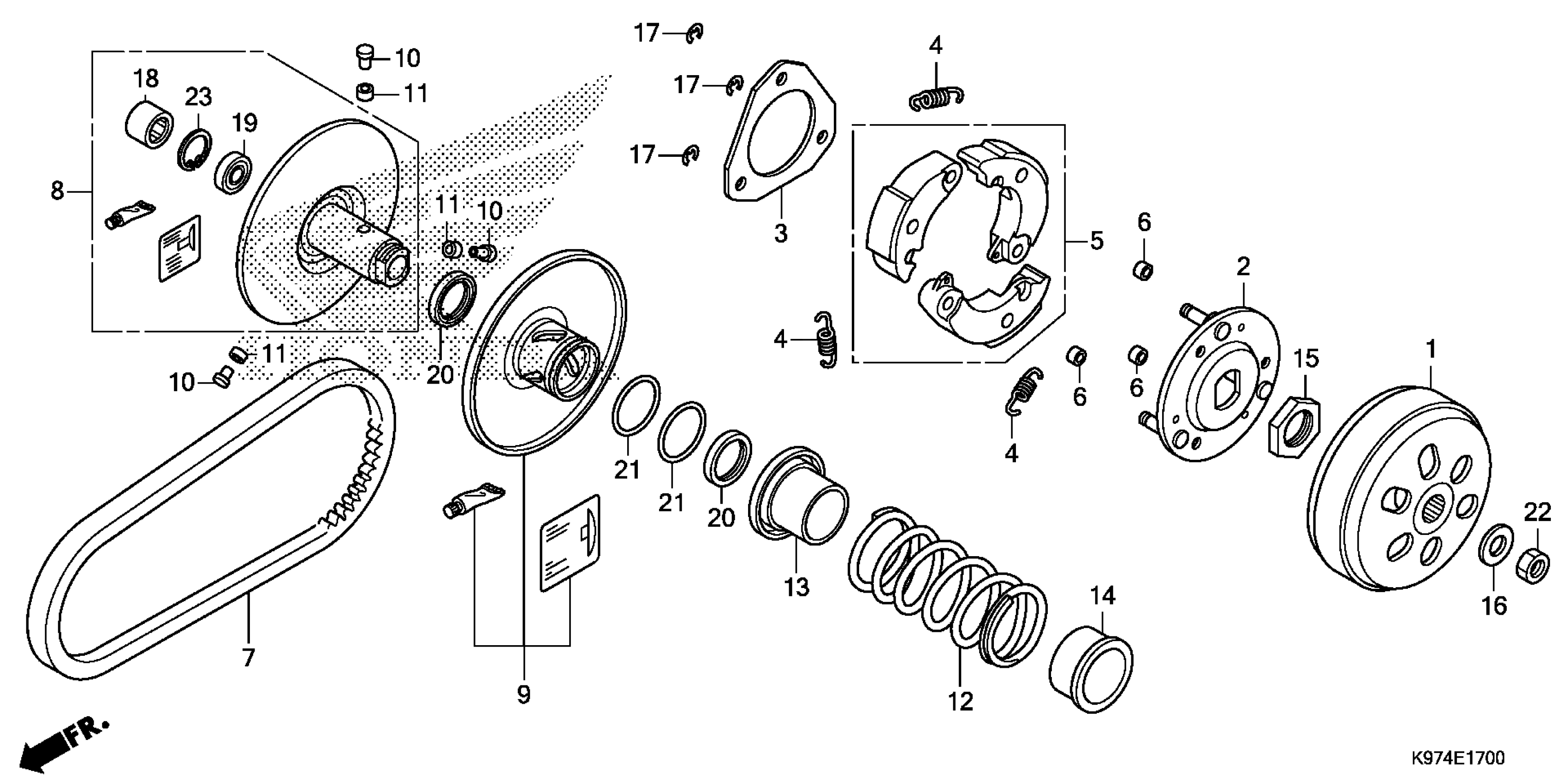

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH OUTER

22100-KWN-900

$24.34

2

PLATE, DRIVE

22350-GFM-900

$37.26

2

PLATE, DRIVE

22350-KVB-900

$6.15

2

PLATE COMP, DRIVE

22350-K97-T01

$8.79

3

PLATE, CLUTCH SIDE

22361-KVB-900

$2.80

4

SPRING, CLUTCH

22401-KVB-900

$0.50

5

WEIGHT SET, CLUTCH

22535-K12-V00

$83.43

6

RUBBER, CLUTCH DAMPER

22804-148-000

Unavailable

7

BELT, DRIVE

23100-K97-T01

$45.33

8

FACE SET, DRIVEN

23205-K97-T00

$55.97

9

FACE SET, MOVABLE DRIVEN

23224-K97-T00

$58.99

10

PIN, ROLLER GUIDE

23225-KSY-900

$2.65

11

ROLLER, GUIDE

23226-GFM-900

$1.78

11

ROLLER, GUIDE This part replaces 23226-KVB-900.

23226-GFM-900

$1.78

12

SPG (32KGF)

23233-K35-V00

$12.19

13

COLLAR, SEAL

23237-K35-V00

$3.28

14

COLLAR, SPRING

23238-KVB-900

$2.79

15

NUT, SPECIAL (28MM)

90202-KN7-670

$6.17

16

WASHER (12.2X29X2.5)

90441-GY6-940

$2.59

17

CIRCLIP (7MM)

90605-166-720

$1.66

18

BEARING, NEEDLE (20X29X18) (NTN)

91001-KCW-003

$8.75

18

BEARING, NEEDLE (20X29X18)

91109-GGC-G01

$3.22

18

BEARING, NEEDLE (20X29X18) (SCHAEFFLER)

91109-KVY-902

$6.36

19

BEARING, RADIAL BALL (6902U) (TOYO)

91002-GA7-701

$22.58

19

BEARING, RADIAL BALL (6902U)

91004-GGC-G01

$6.50

19

BEARING, RADIAL BALL (6902U) (NSK)

91009-KVY-961

$4.17

19

BRG (6902U)

91009-K93-T01

$5.97

20

SEAL, DRIVEN FACE (34X41X4)

91211-KN7-671

$6.06

20

SEAL (34X41X4)

91211-K97-T01

$3.71

21

O-RING (38.8X1.9)

91384-KVB-900

$0.87

22

NUT, HEX. (12MM)

94030-12200

$1.74

23

CIRCLIP (INNER) (28MM)

94520-28000

$1.51
