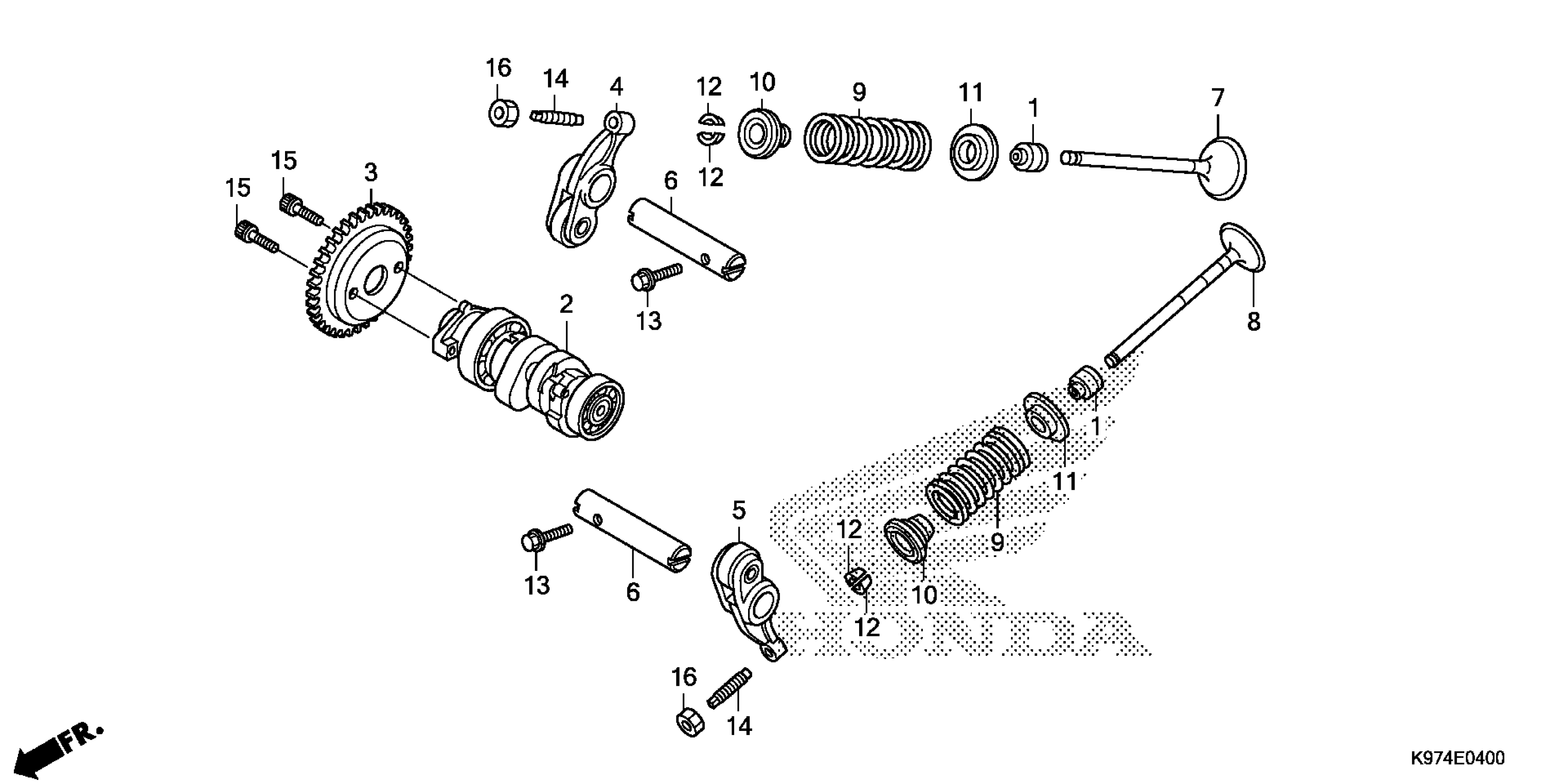

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 CAMSHAFT@VALVE Diagram

SEAL, VALVE STEM (NOK) (EXHAUST SIDE)

12209-GB4-681

$6.32

SEAL, VALVE STEM (ARAI)

12209-GB4-682

$6.57

SHAFT COMP, CAM

14100-K77-V00

$51.82

SPROCKET, CAM (34T)

14321-KWN-900

$3.92

ARM, IN. VALVE ROCKER

14430-KZR-600

$22.41

ARM, EX. VALVE ROCKER

14440-KZR-600

$23.72

SHAFT, ROCKER ARM

14451-KZR-600

$1.97

VALVE, IN.

14711-KZY-700

$7.14

VALVE, EX.

14721-KZY-700

$19.00

SPRING, VALVE

14751-KWN-900

$1.92

SPRING, VALVE

14751-KZR-601

$5.08

RETAINER, VALVE SPRING

14771-KWN-900

$1.66

SEAT, VALVE SPRING

14775-KZR-600

$2.56

COTTER, VALVE

14781-MA6-000

$2.92

BOLT, FLANGE (5X12)

90002-KWB-600

$1.49

SCREW, TAPPET ADJUSTING

90012-KWB-600

$1.49

BOLT, SOCKET KNOCK (5MM)

90083-KVB-900

$1.49

NUT, TAPPET ADJUSTING

90206-001-000

$1.66
