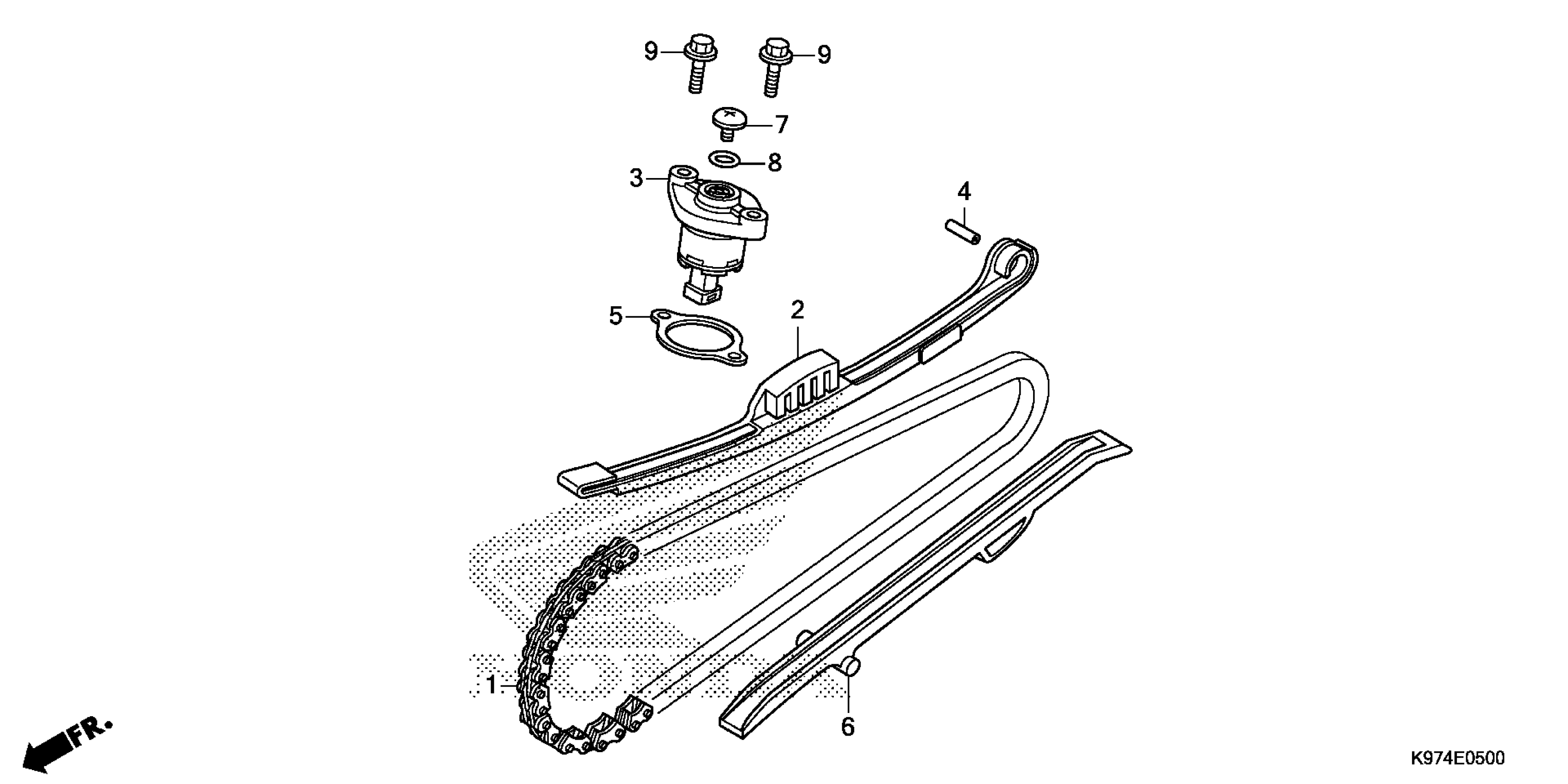

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 CAM CHAIN@TENSIONER Diagram

CHAIN (SCZ-0404)

14401-K97-T01

$27.13

TENSIONER ASSY., CAM CHAIN

14510-KZR-600

$13.09

LIFTER, TENSIONER

14520-K60-T01

$36.29

PIVOT, CAM CHAIN TENSIONER

14531-KZR-600

$0.63

GASKET, TENSIONER LIFTER

14560-KZR-600

$1.12

GUIDE, CAM CHAIN

14611-K97-T00

$8.07

SCREW, PAN (6X6)

90005-KY7-000

$3.10

O-RING (1.5X9.5)

91306-MG3-000

$2.15

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
