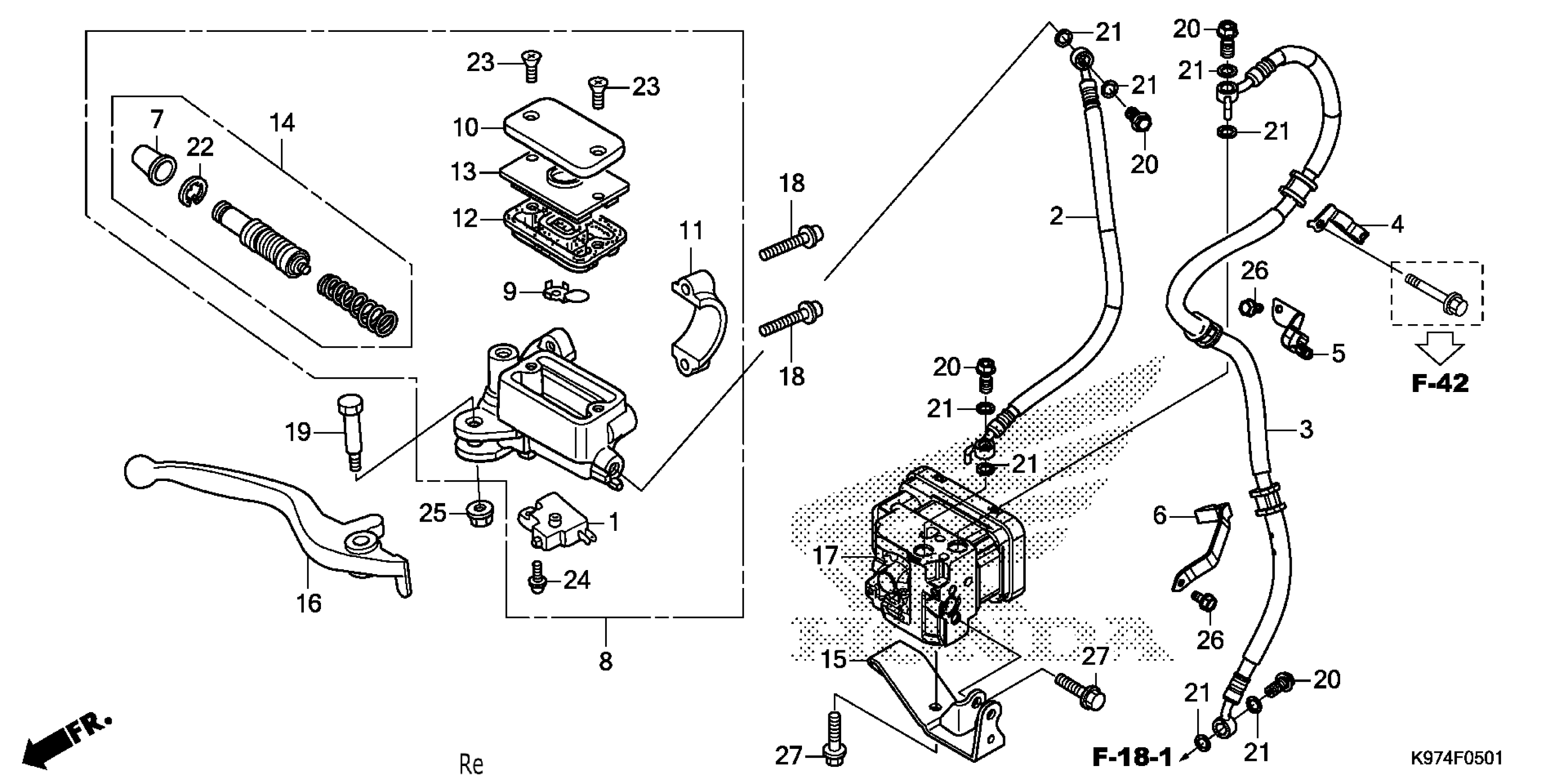

Honda PCX150AAC (19) MOTOR SCOOTER, VNM, VIN# RLHKF301-KY000001 TO RLHKF301-KY099999 FRONT BRAKE MASTER CYLINDER (2) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

HOSE A, FR. BRAKE

45126-K97-J11

$42.89

HOSE B, FR. BRAKE

45127-K97-J11

$68.79

CLAMP A, FR. BRAKE HOSE

45156-K97-J10

$3.67

CLAMP B, FR. BRAKE HOSE

45157-K97-J10

$4.23

CLAMP C, FR. BRAKE HOSE

45158-K97-J10

$9.23

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) This part replaces 45510-K35-V01.

45510-K36-305

$64.11

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)

45510-K36-305

$64.11

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

DIAPHRAGM

45520-GE2-006

$9.58

PLATE, DIAPHRAGM

45521-K21-901

$2.34

MASTER CYLINDER SET

45530-471-831

$40.86

STAY, ABS MODULATOR

50316-K97-J10

$9.00

LEVER, R. HANDLEBAR

53175-KWN-901

$31.72

MODULATOR ASSY.

57110-K97-J11

$455.89

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$1.49

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$1.49

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
