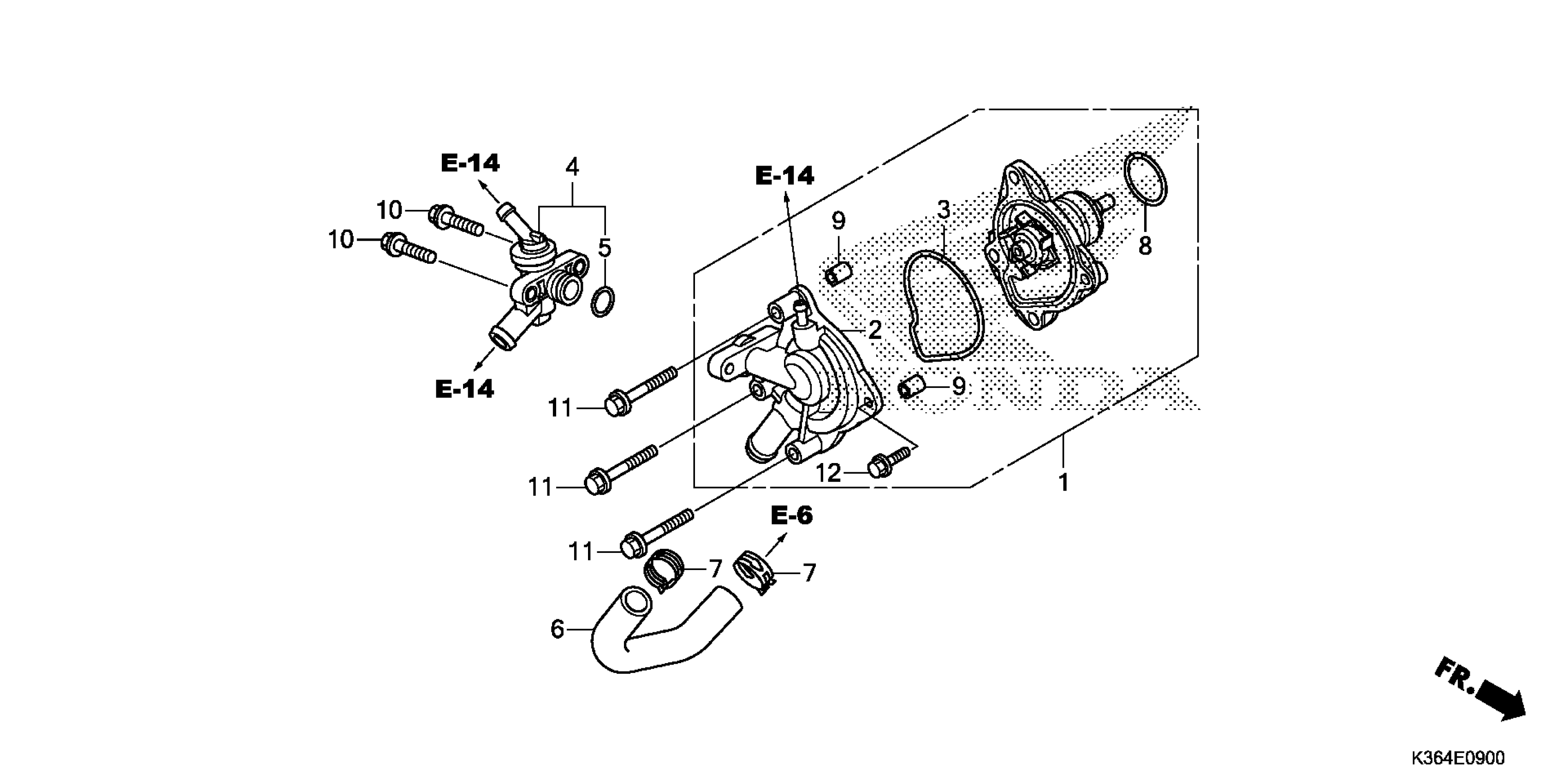

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 WATER PUMP Diagram

WATER PUMP ASSY.

19200-KWN-901

$77.00

COVER, WATER PUMP

19220-KWN-901

$18.25

GASKET, WATER PUMP COVER

19226-KWN-900

$1.00

THERMOSTAT ASSY.

19300-K35-V01

$20.57

O-RING

19310-K35-V01

$0.77

HOSE C, WATER

19503-KWN-900

$6.64

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$0.75

O-RING (34X2)

91302-KWN-900

$0.59

PIN A, DOWEL (8X10)

94301-08100

$2.04

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.71

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
