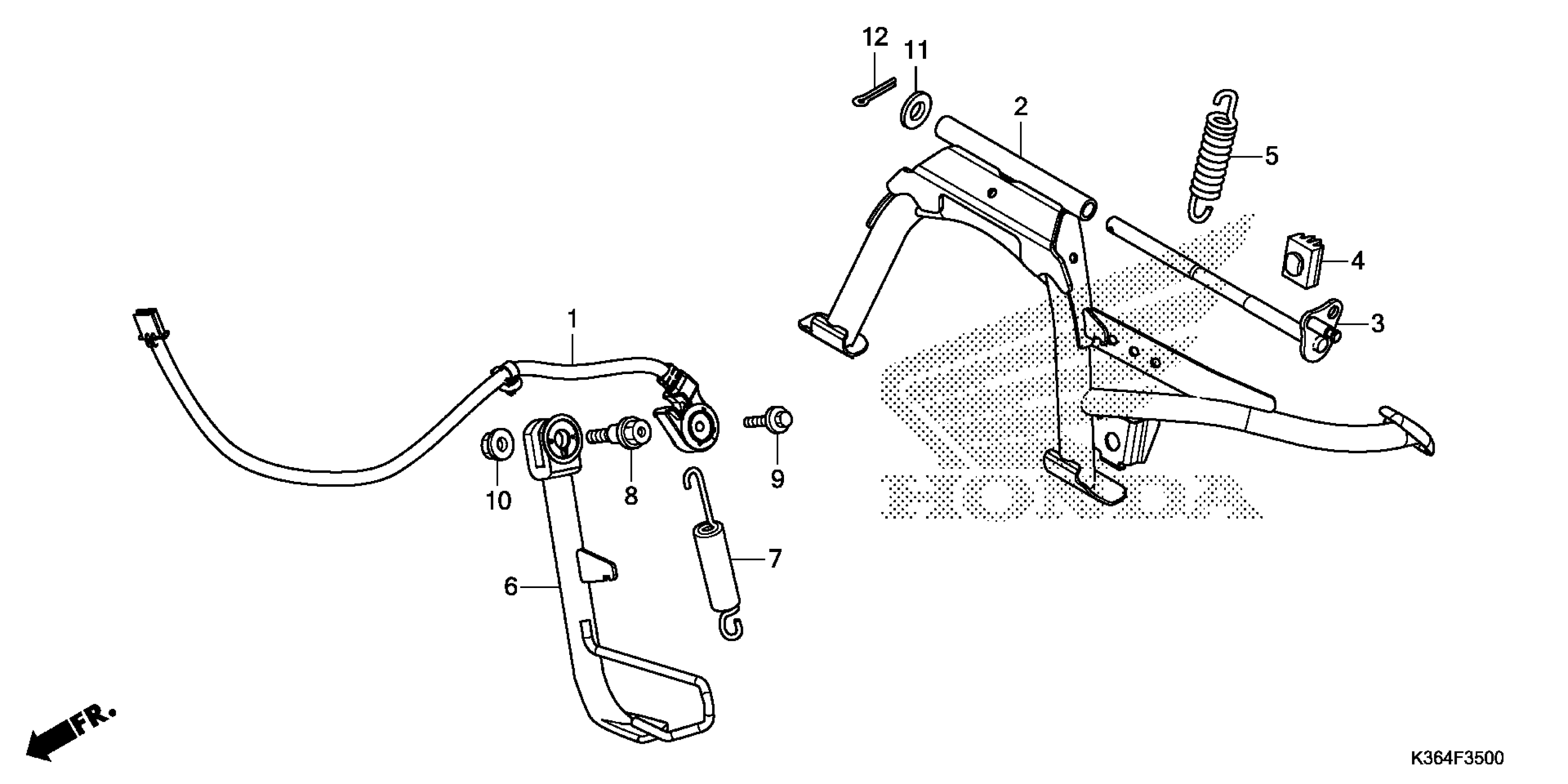

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 STAND Diagram

SWITCH ASSY., SIDE STAND

35700-K35-V01

$65.08

STAND, MAIN (COO)

50500-K35-305

$36.25

SHAFT, MAIN STAND

50503-KWN-900

$3.36

RUBBER, STAND STOPPER

50505-GR1-710

$2.72

SPRING, MAIN STAND

50520-KVB-900

$2.05

BAR, SIDE STAND (COO)

50530-K35-305

$14.72

SPRING ASSY., SIDE STAND

50543-K35-V00

$6.93

BOLT, SIDE STAND PIVOT

90108-KZL-860

$3.46

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

NUT, SIDE STAND

90203-KVB-900

$1.79

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.89

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49
