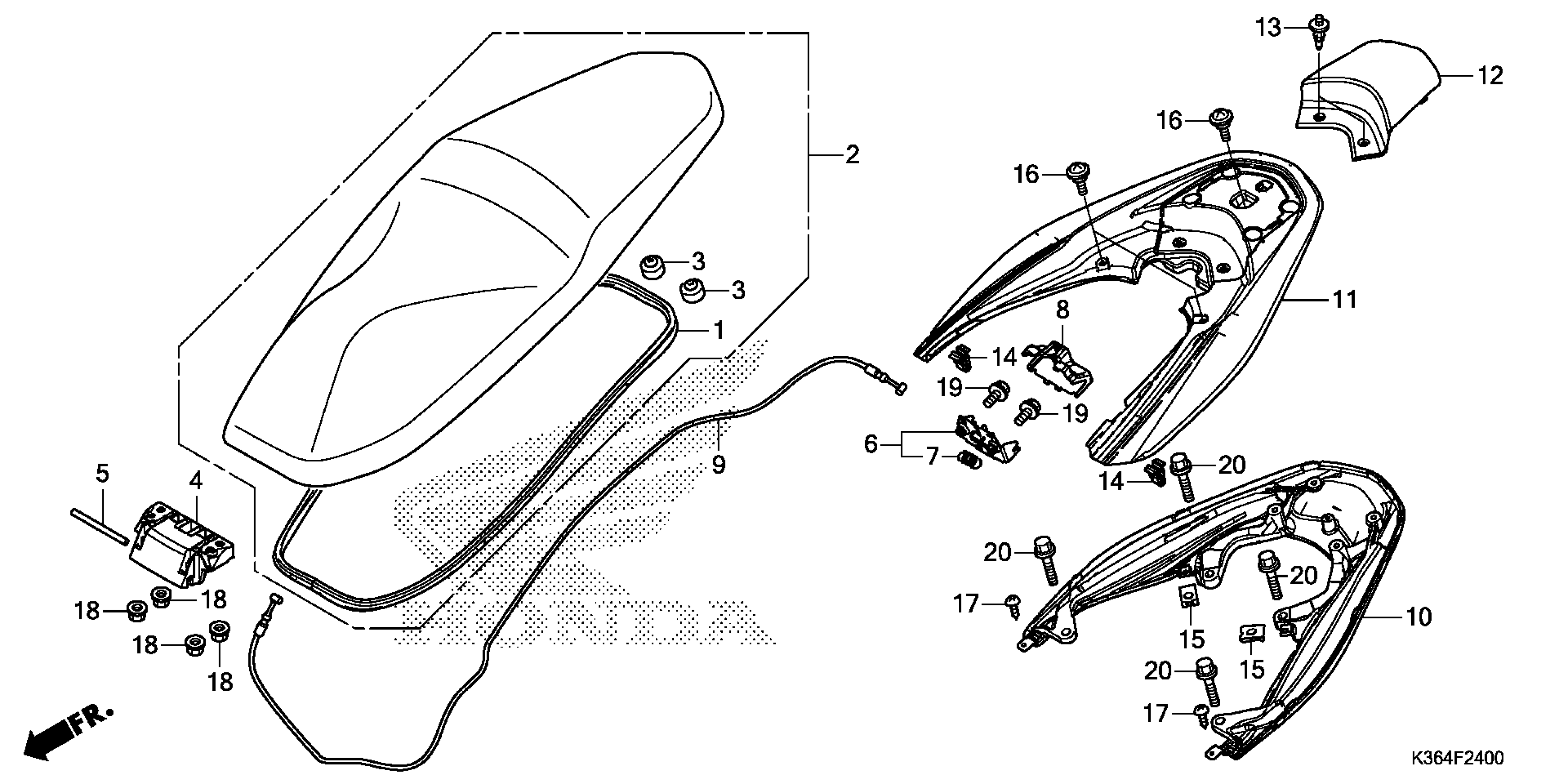

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 SEAT Diagram

RUBBER, SEAL

77115-K35-V00

$8.64

SEAT, DOUBLE (TYPE1)

77200-K35-V00ZB

$144.64

RUBBER, SEAT SETTING

77206-KG8-000

$6.31

HINGE, SEAT

77211-K35-V00

$4.80

PIN, SEAT HINGE

77213-K35-V00

$1.49

CATCH, SEAT

77230-K35-V00

$5.10

SPRING, SEAT LOCK

77234-K35-V00

$1.49

COVER, SEAT CATCH

77237-K35-V00

$1.49

CABLE, SEAT LOCK

77240-K35-V01

$6.18

GRAB RAIL, RR.

84100-K35-V00

$62.26

COVER, GRAB RAIL *NHB35P* (PEARL JASMINE WHITE)

84151-K35-V00ZC

$63.61

COVER, GRAB RAIL *PB403P* (PEARL DARK ASH BLUE)

84151-K35-V00ZW

$74.26

LID, GRAB RAIL COVER *NHB35P* (PEARL JASMINE WHITE)

84152-K35-V00ZC

$25.67

LID, GRAB RAIL COVER *PB403P* (PEARL DARK ASH BLUE)

84152-K35-V00ZW

$31.98

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

CLIP, SNAP FITTING

90601-SJA-003

$3.25

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

SCREW, PAN (5X11.5)

91509-GE2-760

$2.38

SCREW, TAPPING (4X16)

93903-34420

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
