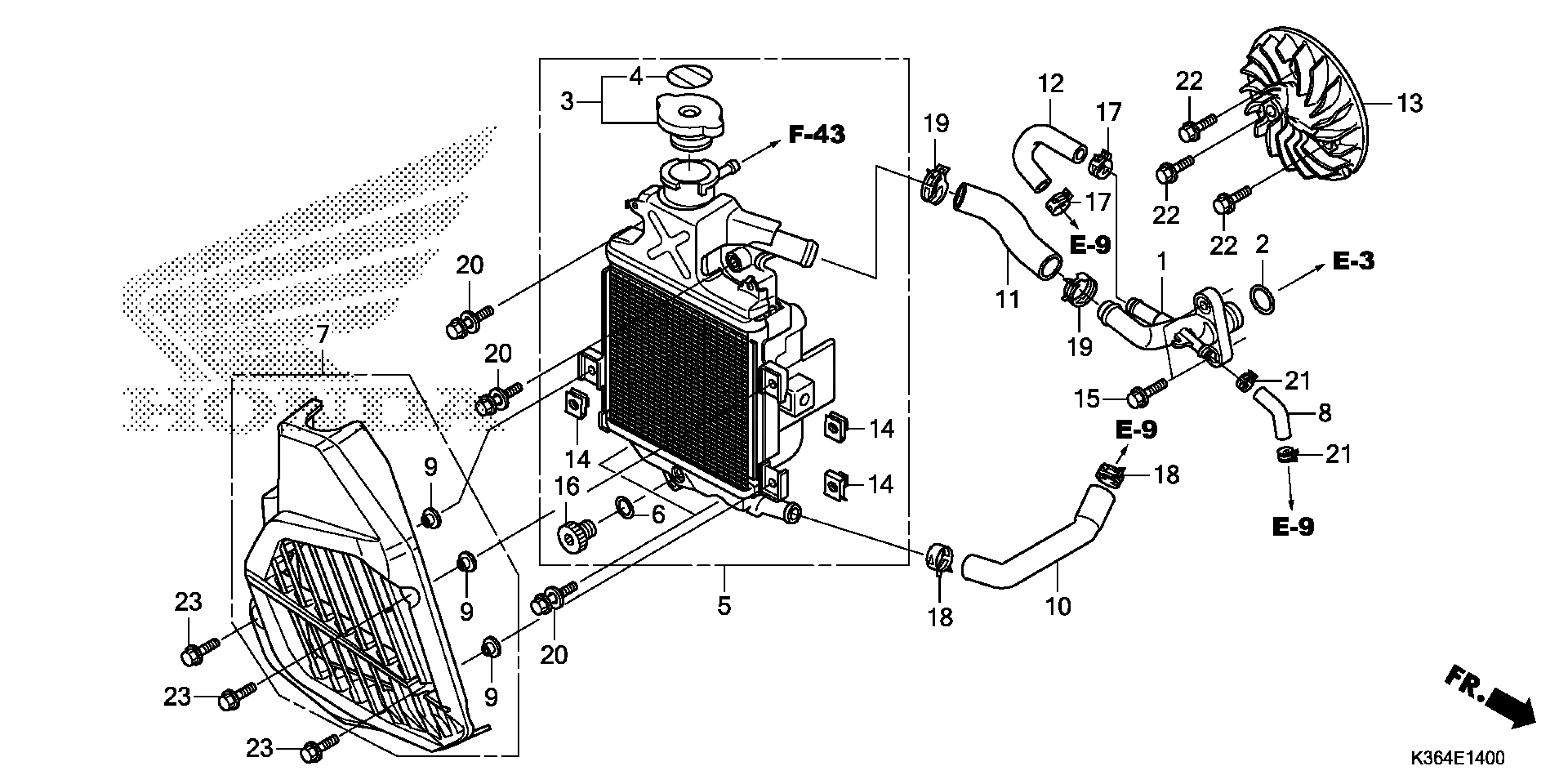

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 RADIATOR Diagram

#

Description
Price

1

JOINT, WATER HOSE

12206-KZR-600

$20.10

2

O-RING (15.4X2)

12207-KWN-900

$1.49

3

CAP, RADIATOR

19037-GEE-710

$30.28

4

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

5

RADIATOR ASSY.

19100-KZY-901

$197.64

6

SEAL, DRAIN

19109-GET-003

$2.26

7

COVER, RADIATOR

19150-KWN-781

$9.30

8

TUBE, AIR BREATHER

19332-KWN-900

$1.49

9

COLLAR

19416-KEY-900

$1.49

10

HOSE A, WATER

19501-KZR-600

$6.57

11

HOSE B, WATER

19502-KZR-600

$7.56

12

HOSE, BYPASS

19504-KZR-600

$8.90

13

FAN, COOLING

19510-K01-900

$8.89

14

NUT, FENDER SETTING

84601-HA7-670

$5.54

15

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.77

16

BOLT, DRAIN

90103-GET-003

$4.08

17

CLAMP, HOSE (D15.5)

90601-K27-V01

$2.49

18

CLAMP, HOSE (D20)

90602-K27-V01

$4.41

19

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$1.49

20

BOLT-WASHER (6X25)

93401-06025-08

$1.78

21

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34

22

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

23

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
