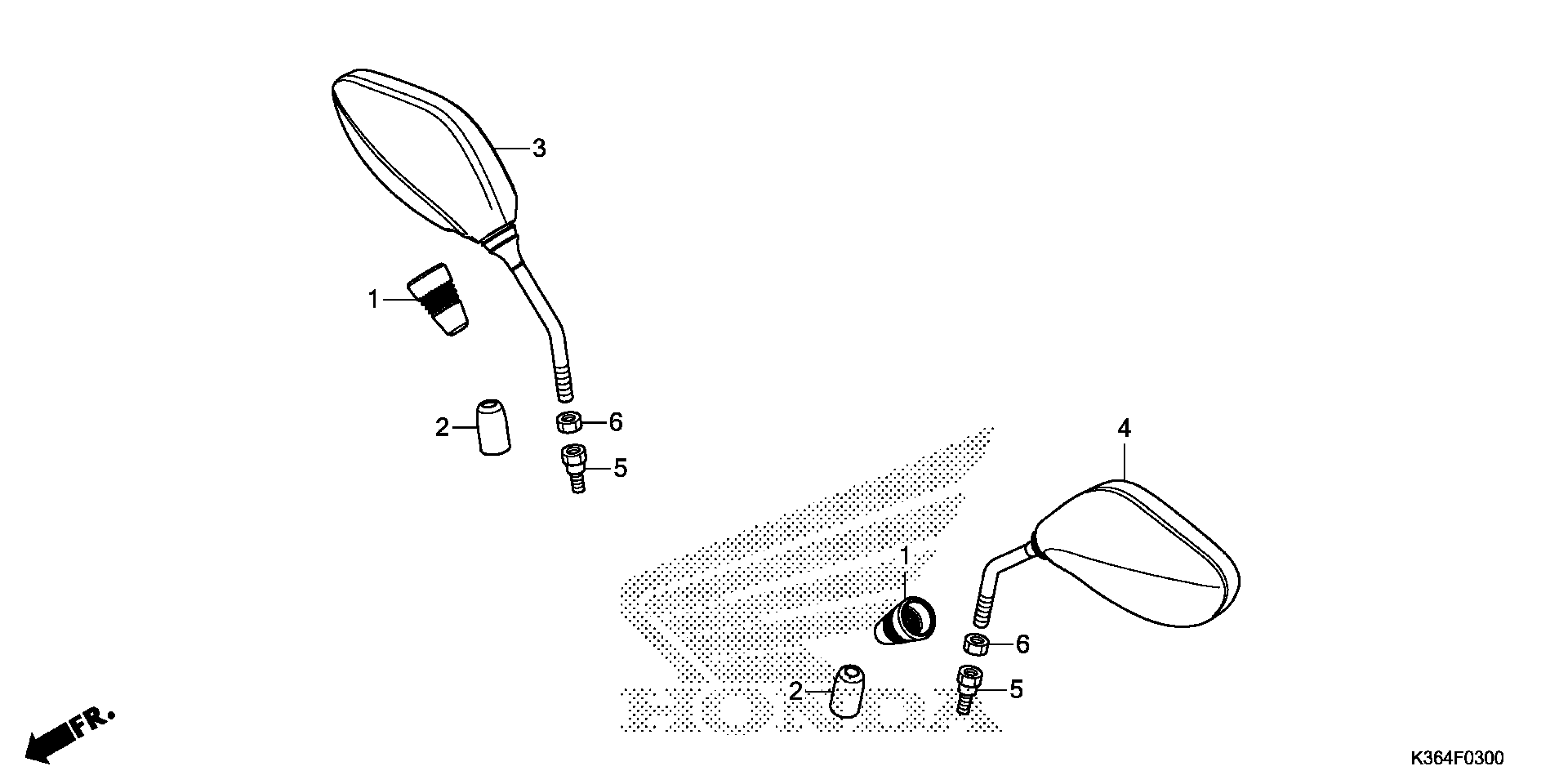

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 MIRROR Diagram

#

Description

Price

1

BOOT, MIRROR

88113-K35-J00

$1.03

2

CAP, LOCK NUT

88115-KWN-980

$0.68

3

MIRROR, R. (COO)

88210-K35-305

$11.15

4

MIRROR, L. (COO)

88220-K35-305

$16.04

5

BOLT, ADAPTER (10MM)

90003-MY5-720

$6.08

6

NUT, HEX. (10MM) (LEFT HAND THREAD)

90201-MW3-620

$4.09
