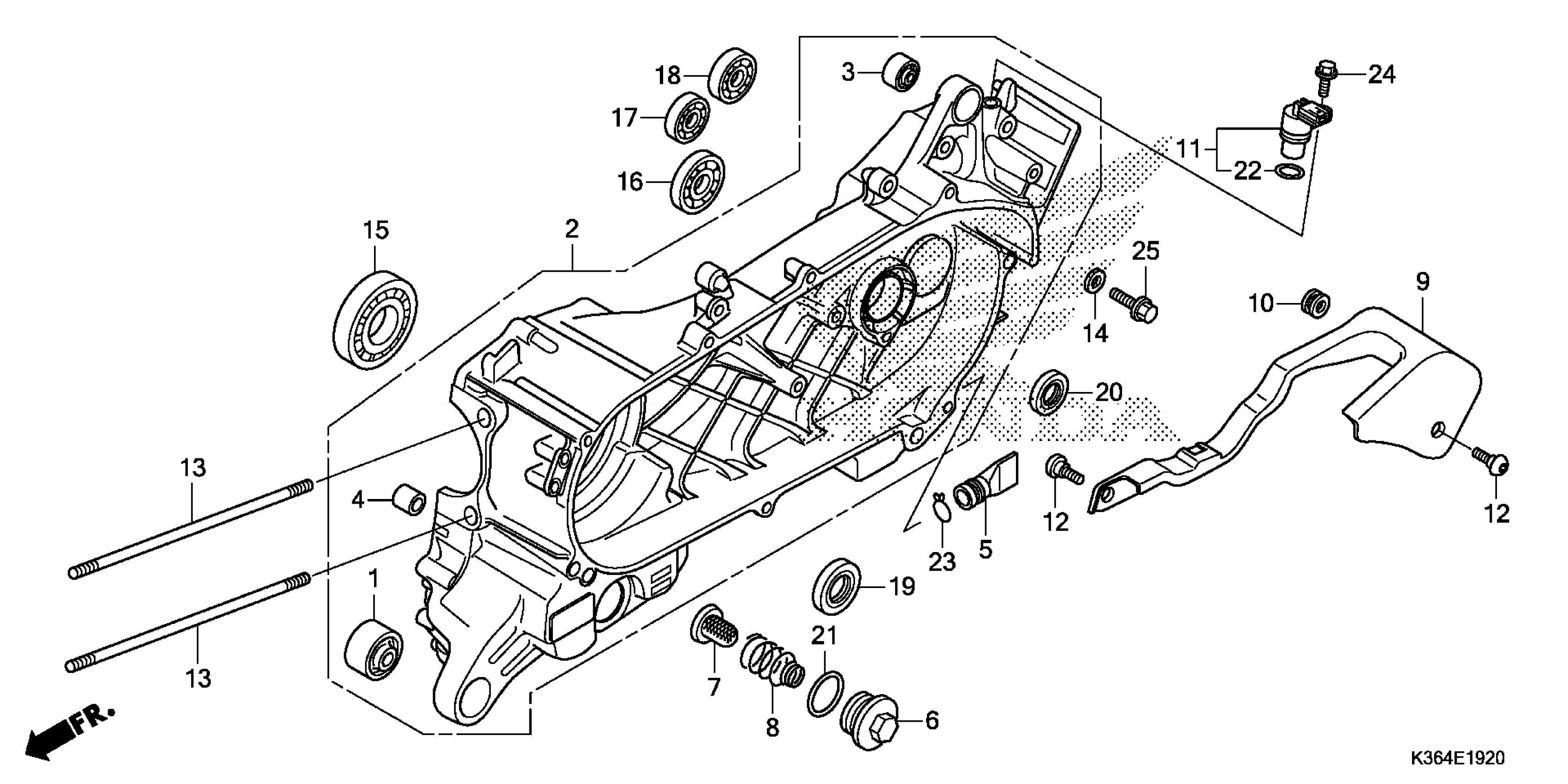

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 LEFT CRANKCASE Diagram

#

Description
Price

1

BUSH, ENGINE HANGER RUBBER (HOKUSHIN)

11103-KVB-901

$3.67

1

BUSH, ENGINE HANGER RUBBER (HOKUSHIN) This part replaces 11103-KVB-930.

11103-KVB-901

$3.67

2

CRANKCASE, L.

11200-K36-J00

$125.07

3

BUSH, RR. CUSHION RUBBER (LOWER)

11203-K35-J00

$2.41

4

BUSH, MAIN STAND

11205-GBC-300

$1.49

5

TUBE, DRAIN

11343-KVG-900

$1.49

6

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

6

CAP, VALVE ADJ.

12361-300-000

Unavailable

6

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

7

SCREEN, OIL FILTER

15421-KPL-900

$1.64

8

SPRING, OIL FILTER SCREEN

15426-KVB-900

$1.64

9

PROTECTOR, SPEED SENSOR

32112-KZR-600

$4.31

10

GROMMET, SPEED SENSOR PROTECTOR

32113-KWN-900

$1.49

11

SENSOR ASSY., SPEED

37700-K27-V01

$32.54

12

BOLT, SOCKET (6X18)

90001-KWR-000

$1.49

13

BOLT B, STUD (8X206)

90032-KWN-900

$2.30

14

WASHER, SEALING (8MM)

90495-MN5-000

$3.56

15

BEARING, RADIAL BALL SPECIAL (6207) (FUJIKOSHI)

91002-KZR-602

$18.72

16

BEARING, RADIAL BALL (6204) (FUJIKOSHI)

91003-KZR-602

$10.79

17

BEARING, RADIAL BALL (6301) (NTN)

91005-KZR-601

$6.51

18

BEARING, RADIAL BALL (6302) (NTN)

91008-KZR-601

$7.15

19

OIL SEAL (26X45X6)

91202-KWN-901

$1.49

20

OIL SEAL (20X32X6) (ARAI)

91203-K35-J01

$2.75

21

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

22

O-RING (14.8X2.4)

91303-K27-V01

$1.49

23

CLIP, TUBE (C12)

95002-80000

$1.49

24

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

25

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
