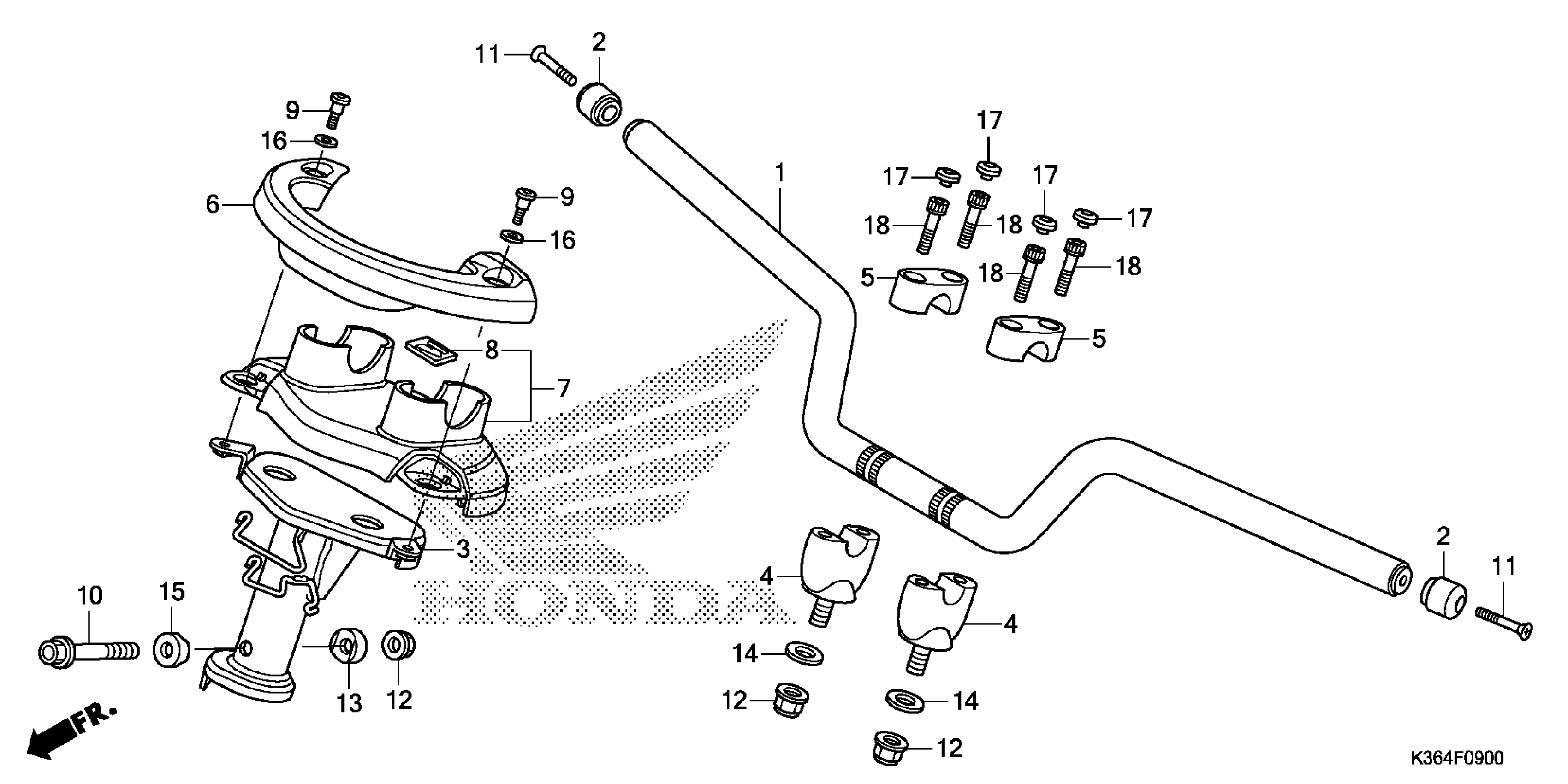

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 HANDLEBAR@HANDLE COVER Diagram

HANDLEBAR (COO)

53100-KZY-305

$48.70

WEIGHT A, HANDLE

53102-KWN-710

$7.61

POST, HANDLE

53110-K35-V00

$25.67

HOLDER, HANDLE (LOWER)

53130-KWN-900

$7.96

HOLDER, HANDLEBAR (UPPER)

53131-KR8-000

$25.30

COVER, FR. HANDLE

53205-K35-V00

$7.39

COVER SET, RR. HANDLE

53250-K35-V00

$26.94

EMBLEM, PRODUCT (SHINKO)

86150-KTJ-C60

$3.64

BOLT, SOCKET (6X17)

90107-GGZ-J00

$1.10

BOLT, FLANGE (10X55) BOLT, FLANGE (10X50)

90120-HC4-000

$6.01

SCREW, OVAL (6X45)

90191-KWB-600

$0.74

NUT, U (10MM)

90304-KGH-901

$2.94

COLLAR A, HANDLE SETTING

90501-KPH-880

$1.22

WASHER (10MM)

90502-KWN-670

$0.59

COLLAR B, HANDLE SETTING

90505-KPH-880

$1.06

WASHER, NYLON (8MM)

90507-921-000

Unavailable

CAP, SOCKET BOLT (8MM)

91455-KEA-000

$3.48

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

96600-08032-10

$1.88

BOLT, SOCKET (8X32)

96600-08032-10

$1.88
