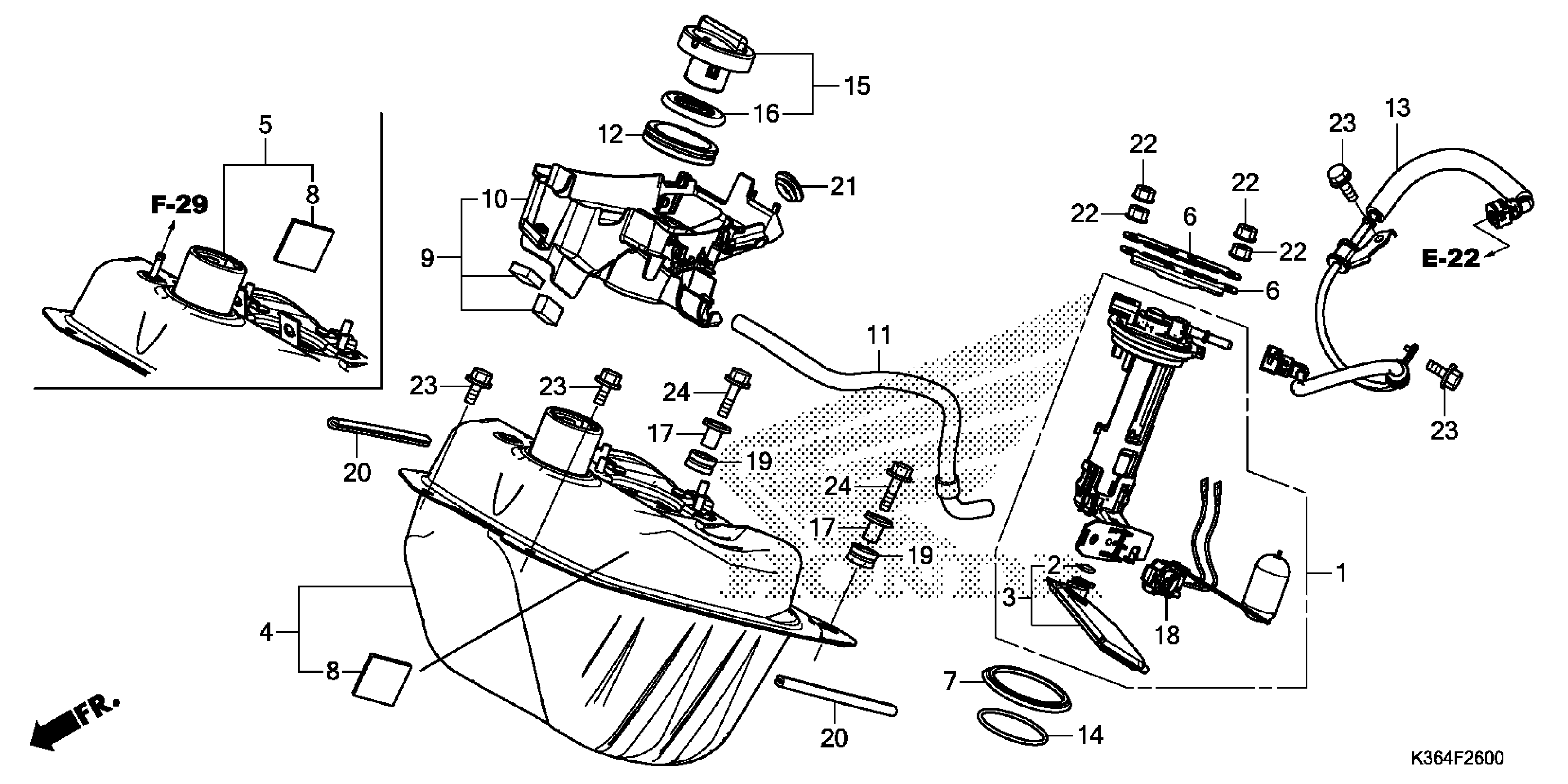

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 FUEL TANK Diagram

#

Description
Price

1

PUMP UNIT, FUEL

16700-K35-V01

$87.40

2

O-RING (6.8X1.9)

16706-GGL-J01

$4.51

3

FILTER SET

16707-K35-V01

$10.93

5

TANK, FUEL

17510-K35-V00

$67.03

6

RETAINER, FUEL PUMP

17517-GGL-J00

$6.65

7

DUST SEAL

17518-GGL-J00

$11.12

8

FILM, TANK PROTECTOR

17519-K35-V00

$20.62

9

TRAY SET, FUEL

17520-K35-V00

$250.52

11

TUBE, FUEL TRAY DRAIN

17526-K35-V00

$12.62

12

RUBBER, FUEL SEAL

17527-K35-V00

$1.10

13

HOSE, FUEL FEED

17570-K36-J01

$37.42

14

O-RING, FUEL PUMP (ARAI)

17572-GHB-601

$8.37

15

CAP, FUEL FILLER This part replaces 17620-KWN-981.

17620-KWN-982

$37.96

16

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

Unavailable

16

GASKET, FUEL FILLER CAP

17632-383-832

Unavailable

17

COLLAR, MUFFLER

18357-KA4-710

$6.18

18

FUEL UNIT

37800-K35-V01

$22.46

19

GROMMET, HORN STAY

38119-MM8-000

$4.32

20

RUBBER, BODY COVER SETTING

64415-KPH-B30

$4.91

21

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

22

NUT, FLANGE (6MM)

94050-06000

$0.59

23

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
