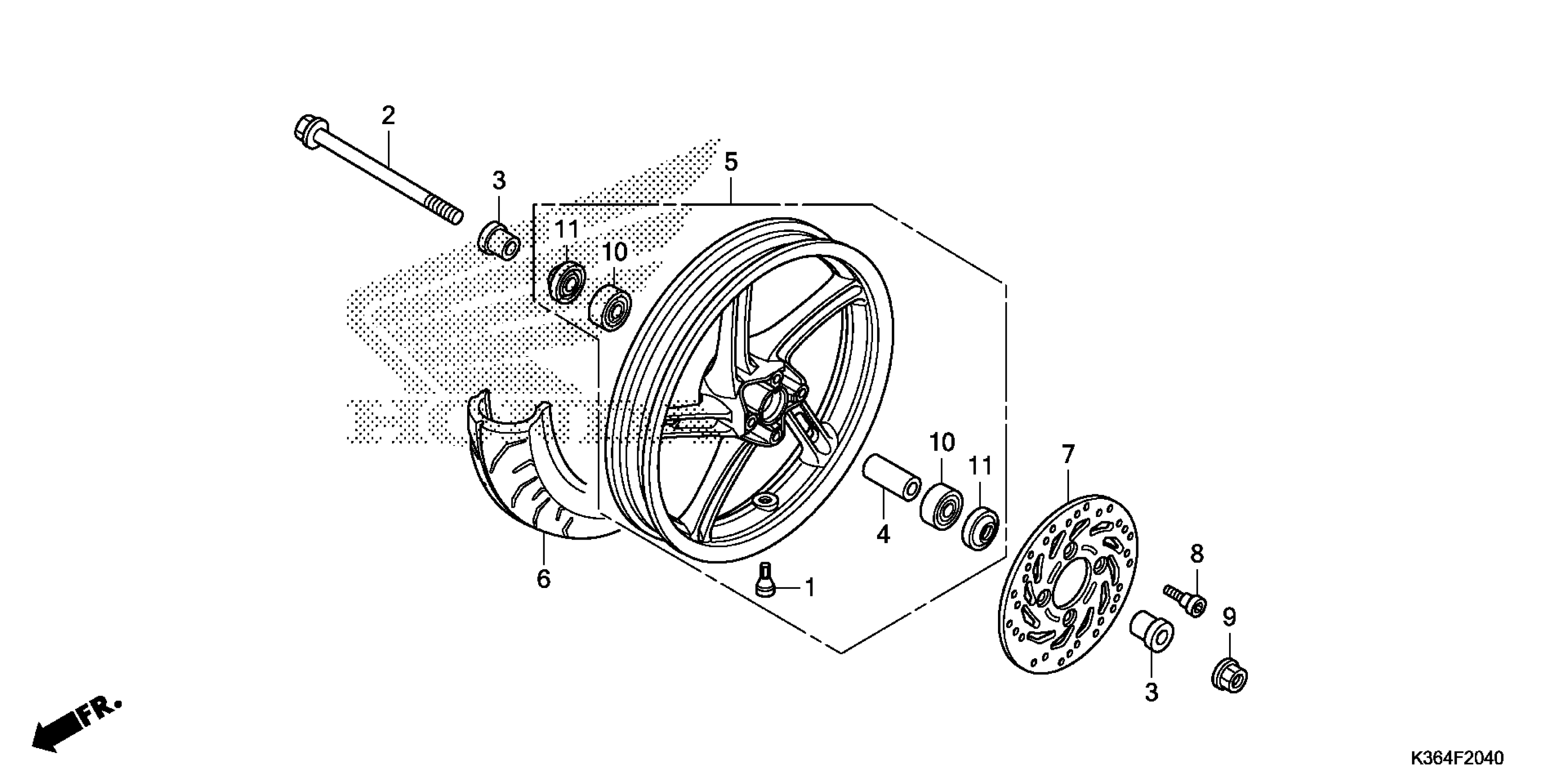

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 FRONT WHEEL Diagram

#

Description

Price

1

VALVE, RIM (IRC)

42753-GM9-743

$7.99

2

AXLE, FR. WHEEL

44301-KWW-640

$16.87

3

COLLAR, FR. WHEEL SIDE

44311-KWN-700

$2.38

4

COLLAR, FR. AXLE DISTANCE

44620-KPH-950

$2.32

5

WHEEL SUB-ASSY., FR. NH303M (COO) (MAT AXIS GRAY METALLIC)

44650-K36-305ZA

$203.03

6

TIRE, FR. (90/90-14 M/C 46P) (IRC)

44711-K35-V03

Unavailable

7

DISK, FR. BRAKE (NISSIN)

45351-KVG-951

$25.37

8

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.76

9

NUT, U (12MM)

90306-KWN-701

$3.87

10

BEARING, RADIAL BALL (6201U L) (NSK)

91052-K24-901

$4.15

11

DUST SEAL (21X37X7) (ARAI)

91251-K35-V01

$4.01
