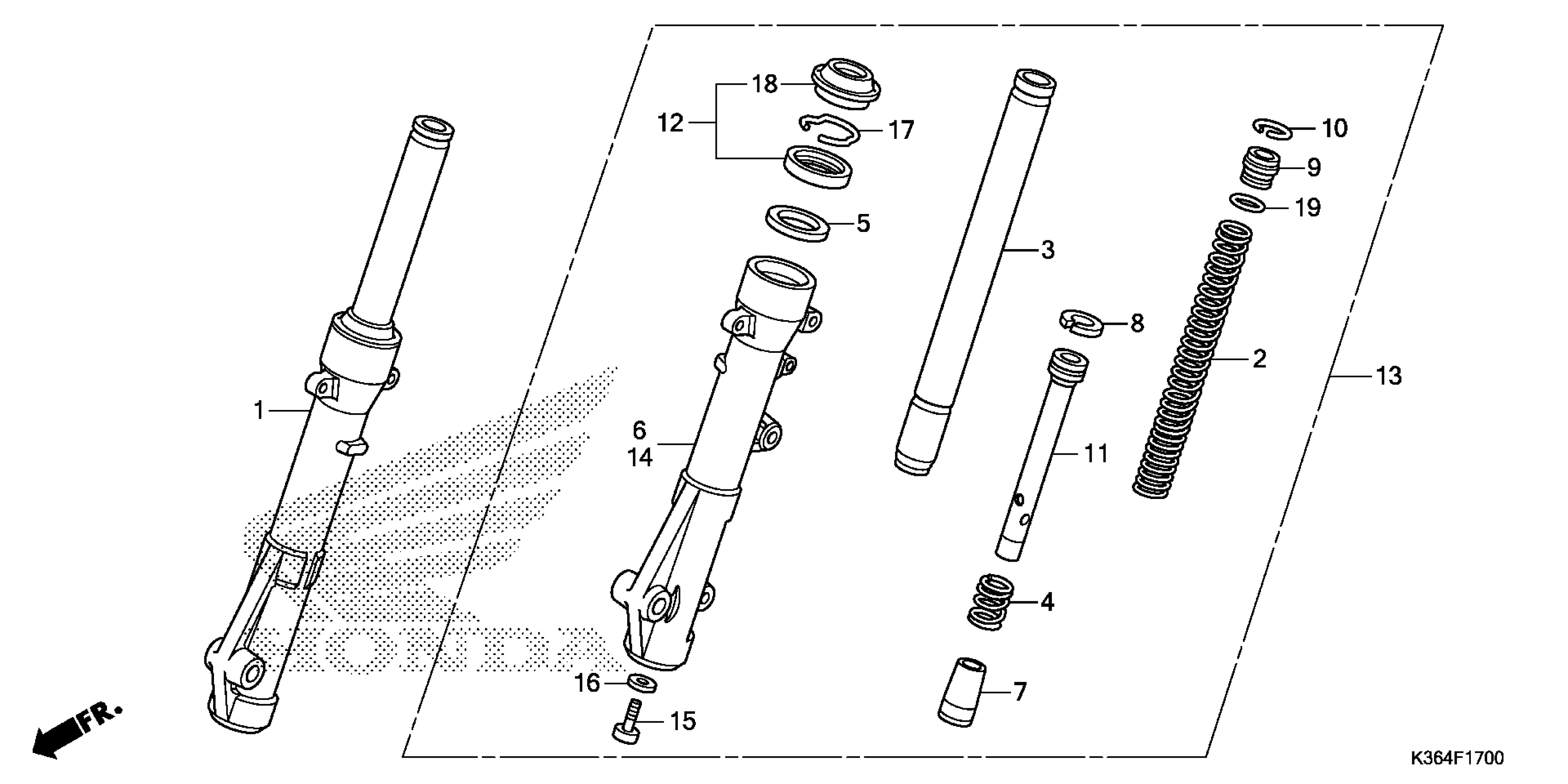

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 FRONT FORK Diagram

FORK ASSY., R. FR. (COO) (SHOWA)

51400-K36-305

$197.51

SPRING, FR. FORK

51401-KWN-711

$60.47

PIPE, FR. FORK

51410-KWN-711

$37.29

SPRING, FR. FORK REBOUND

51412-GC4-003

$6.10

RING, BACK-UP (SHOWA)

51412-KK4-003

$6.30

CASE, R. FR. (LOWER) (COO) (SHOWA)

51420-K36-305

$64.00

PIECE, OIL LOCK

51432-KM7-910

$18.75

RING, PISTON

51437-GS3-003

$7.45

SEAT, SPRING (UPPER)

51454-KWN-711

$44.56

RING, STOPPER (SHOWA)

51456-355-003

$6.54

PIPE, SEAT

51470-KWN-901

$9.26

SEAL SET, FR. FORK (SHOWA)

51490-KRM-852

$19.31

FORK ASSY., L. FR. (COO) (SHOWA)

51500-K36-305

$197.18

CASE, L. FR. (LOWER) (COO) (SHOWA)

51520-K36-305

$61.57

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

Unavailable

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

RING, OIL SEAL STOP (SHOWA)

90601-354-000

$4.89

DUST SEAL (SHOWA)

91254-GAA-003

$15.61

O-RING

91356-GBB-003

$0.81
