Description

Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

HOSE, FR. BRAKE

45126-KWN-711

$42.13

3

CLAMP A, BRAKE HOSE

45155-KWN-710

$4.34

4

CLAMP B, BRAKE HOSE

45157-KWN-930

$1.49

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)

45510-K36-305

$64.11

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

DIAPHRAGM

45520-GE2-006

$9.58

11

PLATE, DIAPHRAGM

45521-K21-901

$2.34

12

MASTER CYLINDER SET

45530-471-831

$40.86

13

LEVER, R. HANDLEBAR (COO)

53175-KWN-315

$18.06

14

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$1.49

15

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$1.49

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

17

WASHER, OIL BOLT

90545-300-000

$3.99

18

CIRCLIP

90651-MA5-671

$2.66

19

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

19

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

20

SCREW-WASHER (4X12)

93893-04012-07

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

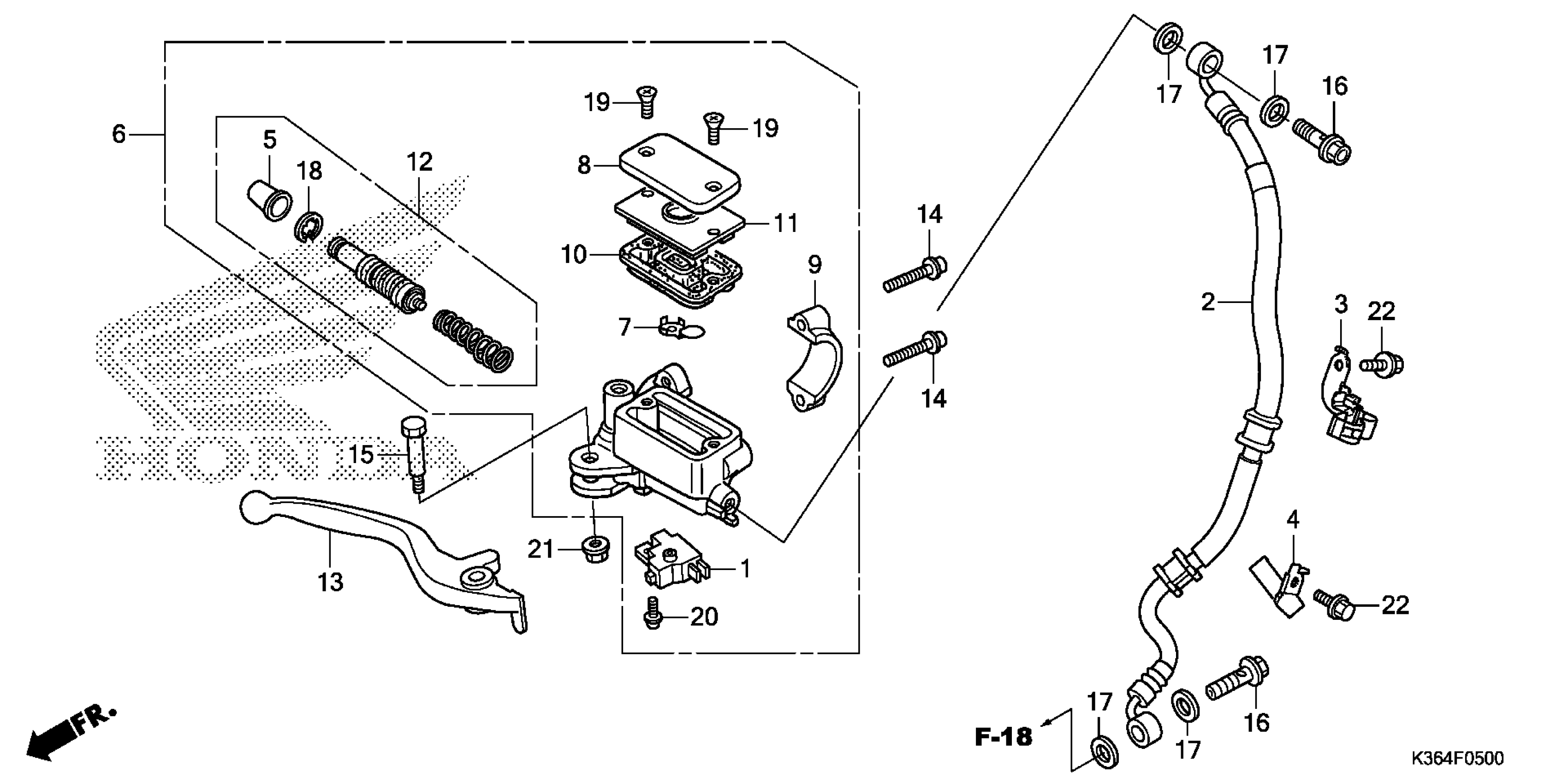

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 FRONT BRAKE MASTER CYLINDER Diagram
