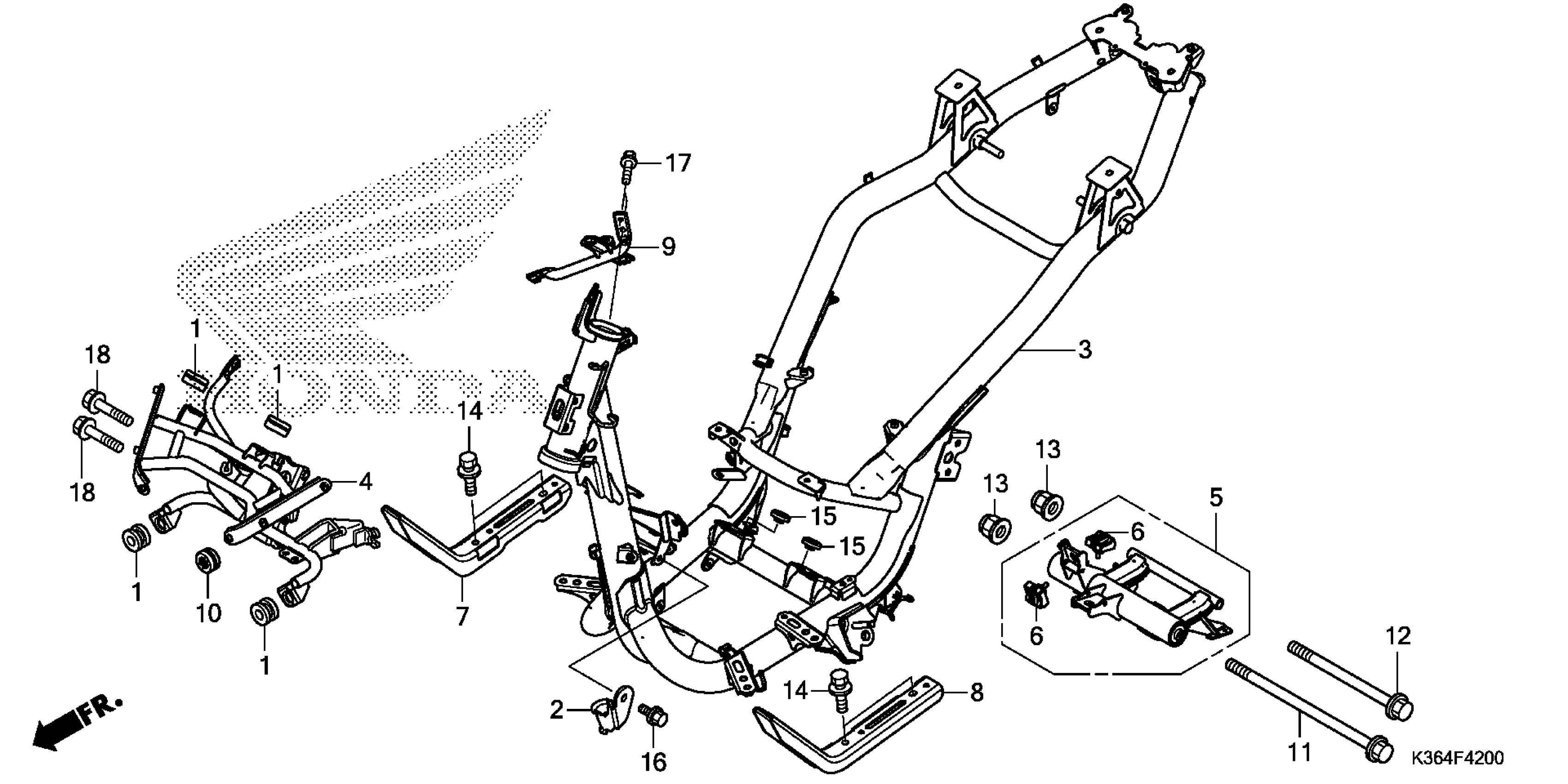

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 FRAME Diagram

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.63

CLAMP A, RR. BRAKE CABLE

43456-K35-V00

$1.66

FRAME

50100-K35-V00

$348.00

STAY, FR. COVER

50310-K36-A00

$49.99

LINK ASSY., ENGINE HANGER

50350-K35-V00

$60.19

RUBBER, LINK STOPPER

50352-K35-V00

$5.07

STAY, R. FLOOR

50620-K35-V00

$8.72

STAY, L. FLOOR

50621-K35-V00

$8.72

STAY, ELECTRONIC CONTROL UNIT

50622-K35-V00

$5.74

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.31

BOLT, FLANGE (10X270)

90105-KVY-900

$6.41

BOLT, FLANGE (10X238)

90106-GCC-C50

$6.24

NUT, U (10MM)

90304-KGH-901

Unavailable

BOLT-WASHER (8X16)

93404-08016-00

$1.25

RUBBER C, STAND STOPPER

95011-63000

$3.73

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BOLT, FLANGE (8X45)

95801-08045-08

$1.29
