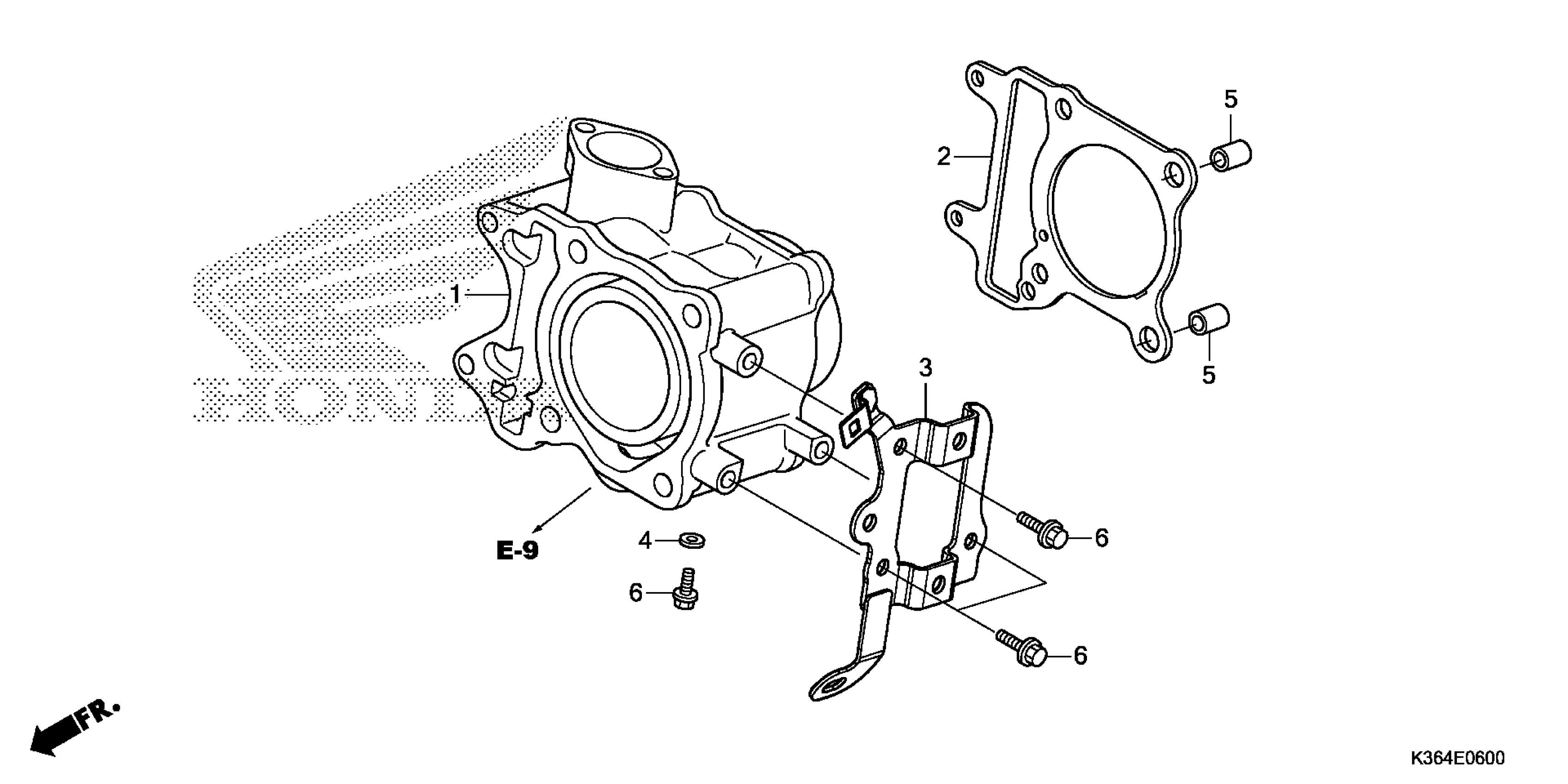

Honda PCX1502AC (18) PCX150, VNM, VIN# RLHKF280-JY300001 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-KZY-701

$52.32

2

GASKET, CYLINDER

12191-KZR-600

$4.33

3

STAY, IGNITION COIL

30515-K35-V00

$3.68

4

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

5

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24

6

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91
