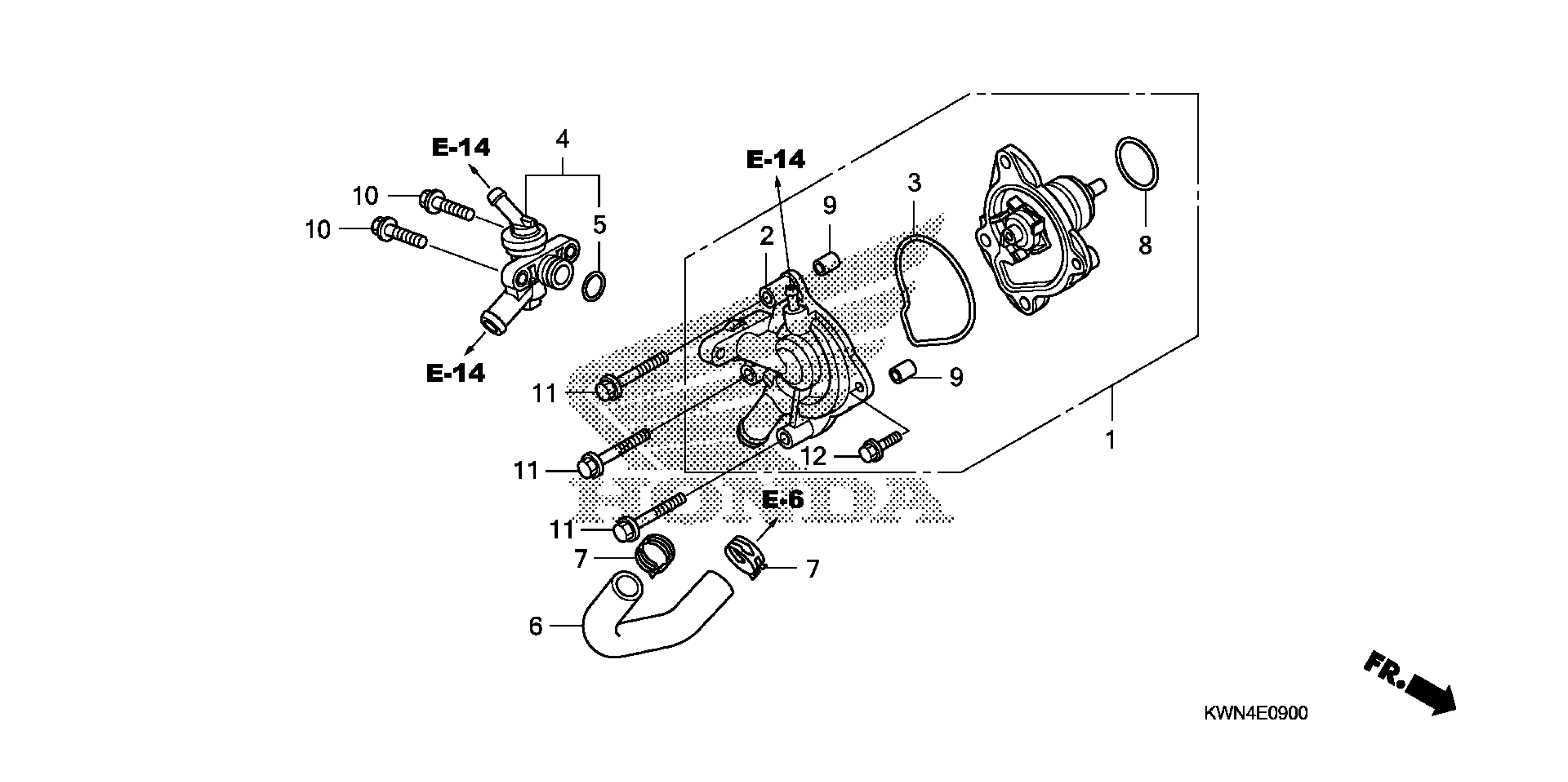

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY.

19200-KWN-901

$78.13

2

COVER, WATER PUMP

19220-KWN-900

$15.47

3

GASKET, WATER PUMP COVER

19226-KWN-900

$1.01

4

THERMOSTAT ASSY.

19300-KWN-901

$68.97

5

O-RING

19381-KWN-900

$1.79

6

HOSE C, WATER

19503-KWN-900

$6.74

7

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$0.76

8

O-RING (34X2)

91302-KWN-900

$0.60

10

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

11

BOLT, FLANGE (6X40)

95701-06040-00

$1.88

12

BOLT, FLANGE (6X16)

96001-06016-00

$0.97
