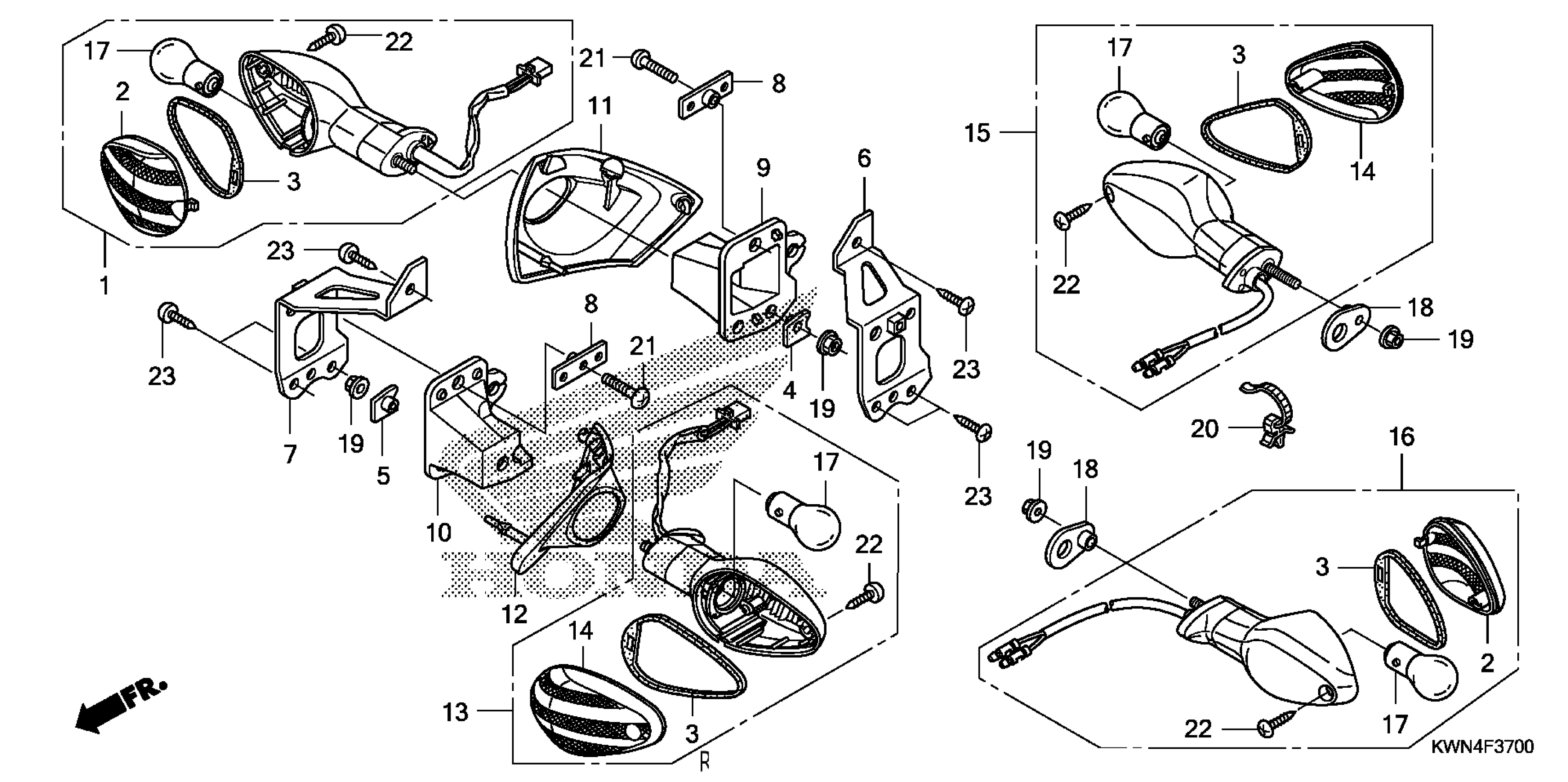

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (12V 21W) (COO) This part replaces 33400-KWN-305.

33400-KWN-315

$103.17

1

TURN SIGNAL ASSY., R. FR. (12V 21W) (COO)

33400-KWN-315

$103.17

2

LENS, R. TURN SIGNAL (COO) (R. FR./L. RR.)

33402-KWN-305

$9.12

3

GASKET, LENS

33407-MFJ-A41

$2.86

4

BACK PLATE, R. TURN SIGNAL

33411-KWN-670

$0.99

5

BACK PLATE, L. TURN SIGNAL

33412-KWN-670

$0.99

6

SUPPORT, R. TURN SIGNAL

33413-KWN-670

$3.13

7

SUPPORT, L. TURN SIGNAL

33414-KWN-670

$3.13

8

PLATE, TURN SIGNAL

33415-KWN-670

$2.06

9

STAY, R. FR. TURN SIGNAL

33417-KWN-670

$4.80

10

STAY, L. FR. TURN SIGNAL

33418-KWN-670

$12.59

11

COVER, R. TURN SIGNAL

33421-KWN-670

$17.68

12

COVER, L. TURN SIGNAL

33422-KWN-670

$17.68

13

TURN SIGNAL ASSY., L. FR. (12V 21W) (COO) This part replaces 33450-KWN-305.

33450-KWN-315

$103.17

13

TURN SIGNAL ASSY., L. FR. (12V 21W) (COO)

33450-KWN-315

$103.17

14

LENS, L. TURN SIGNAL (COO) (L. FR./R. RR.)

33452-KWN-305

$9.12

15

TURN SIGNAL ASSY., R. RR. (12V 21W) (COO) This part replaces 33600-KWN-305.

33600-KWN-315

$103.17

15

TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)

33600-KWN-315

$103.17

16

TURN SIGNAL ASSY., L. RR. (12V 21W) (COO) This part replaces 33650-KWN-305.

33650-KWN-315

$103.17

16

TURN SIGNAL ASSY., L. RR. (12V 21W) (COO)

33650-KWN-315

$103.17

17

BULB, TURN SIGNAL (12V 21W)

34905-MAS-601

$2.94

18

PLATE, RR. TURN SIGNAL SETTING

80115-KWN-670

$2.22

19

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26

20

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

$5.81

21

SCREW, PAN (6X16)

93500-06016-0A

$1.04

22

SCREW, TAPPING (4X16)

93901-34480

$0.75

23

SCREW, TAPPING (4X16)

93903-34410

$0.75
