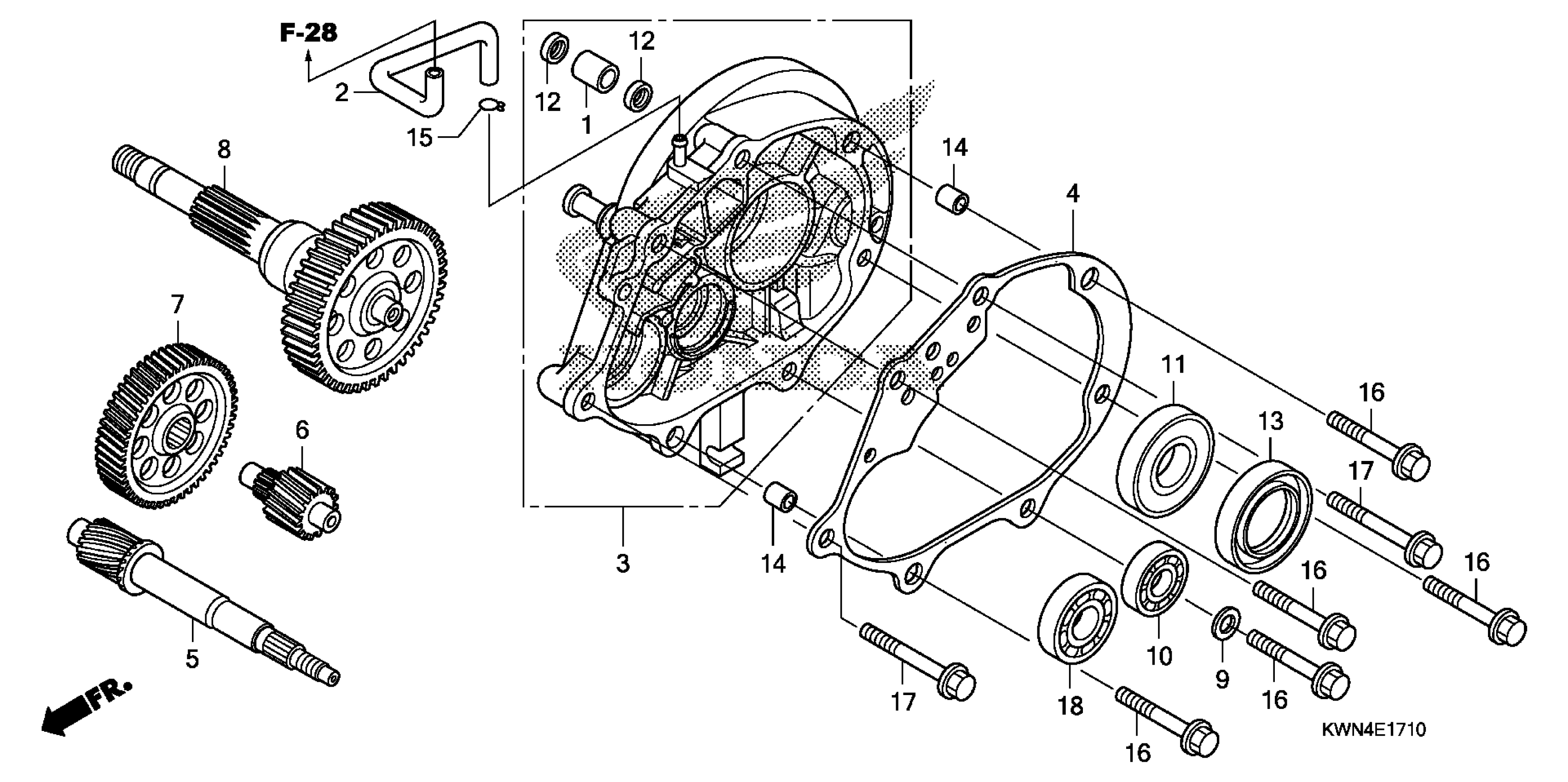

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 TRANSMISSION Diagram

SLEEVE, RR. BRAKE CAM

11204-KGF-900

$8.12

TUBE, TRANSMISSION BREATHER

11211-KWN-900

$1.94

CASE, TRANSMISSION

21200-KWN-900

$35.66

GASKET, TRANSMISSION CASE

21395-KWN-900

$4.21

SHAFT, DRIVE (17T)

23411-KWN-900

$15.94

COUNTERSHAFT (13T)

23421-KWN-900

$11.96

GEAR, COUNTERSHAFT (53T)

23422-KWN-900

$17.01

GEAR, FINAL (47T)

23430-KWN-900

$35.76

WASHER, SEALING (8MM)

90495-MN5-000

$3.40

BEARING, RADIAL BALL (6201)

91006-KWN-901

$6.97

BEARING, RADIAL BALL (6205UU) (NTN)

91009-KWN-901

$7.11

OIL SEAL (14X20X3.2)

91201-434-003

$4.07

OIL SEAL (34X52X7)

91204-KWN-900

Unavailable

PIN, DOWEL (10X12)

94301-10120

$2.80

CLIP, TUBE (C9)

95002-50000

$1.16

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

BOLT, FLANGE (8X55)

95701-08055-00

$2.80

BEARING, RADIAL BALL (6202)

96100-62020-00

$8.08
