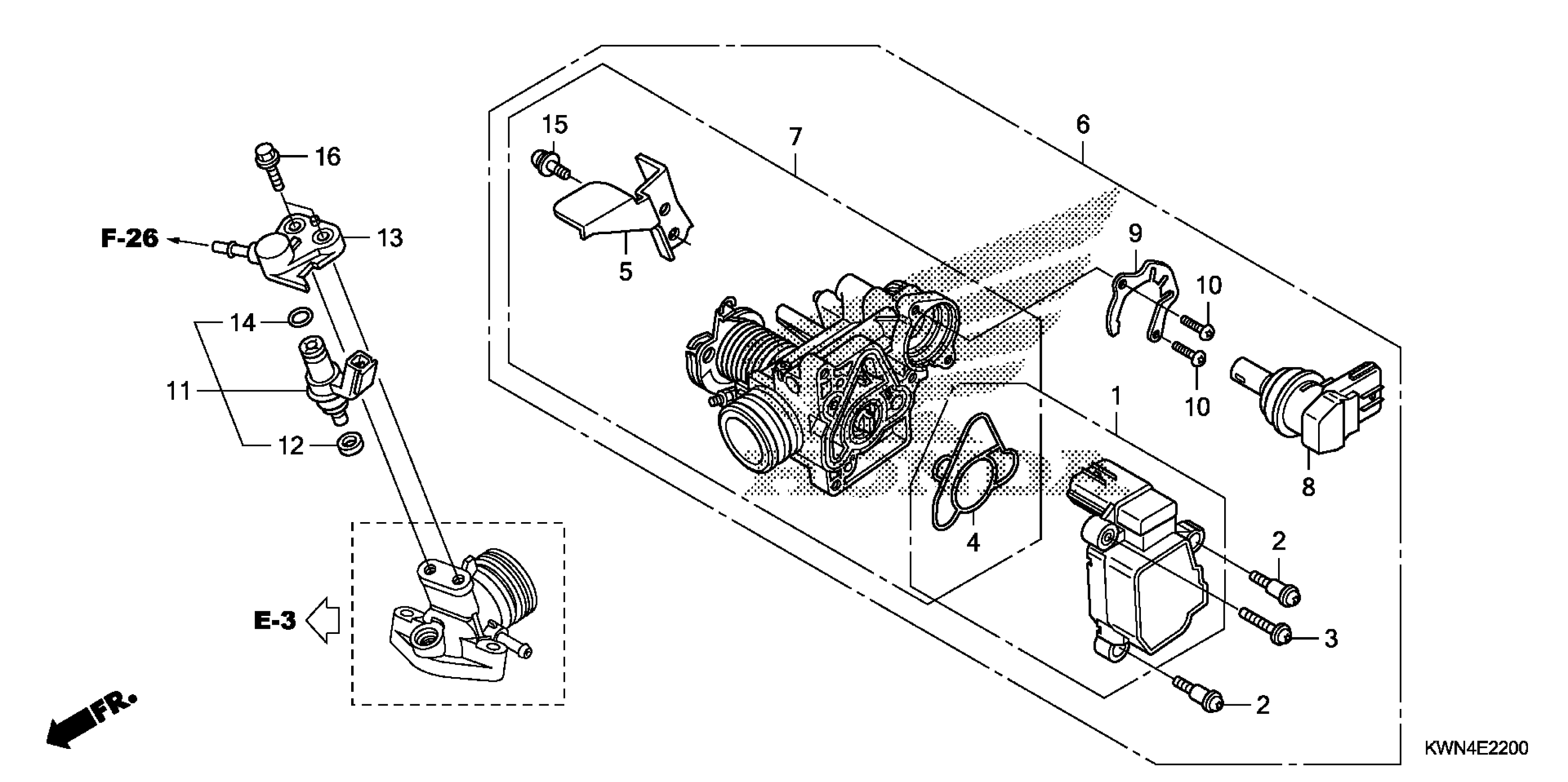

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 THROTTLE BODY Diagram

#

Description
Price

1

SENSOR SET

16060-GFZ-003

$98.43

2

SCREW, TORX (5X8.7)

16081-KPH-701

$3.12

3

SCREW, TORX (5X17)

16082-KPH-701

$5.43

4

O-RING, THROTTLE BODY

16083-KTR-941

$1.49

5

PLATE, STAY

16169-GFM-901

$9.59

6

BODY ASSY., THROTTLE (GQY0A B) | Use from Engine SN 2010999

16400-KWN-902

$145.21

7

BODY SET

16410-KWN-901

$75.66

8

VALVE ASSY., IDLE AIR CONTROL | Use up to Engine SN GQY0A A This part replaces 16430-GFM-901.

16430-GFM-902

$79.95

8

VALVE ASSY., IDLE AIR CONTROL | Use up to Engine SN GQY0A A

16430-GFM-902

$79.95

8

VALVE ASSY., IDLE AIR CONTROL | Use from Engine SN GQY0A B

16430-GFM-902

$79.95

9

PLATE, IDLE AIR CONTROL VALVE

16432-GFM-901

$5.74

10

SCREW, TORX

16433-HN8-A61

$1.49

11

INJECTOR ASSY., FUEL

16450-KWN-901

$36.70

12

RING, SEAL

16472-KPH-701

$4.82

13

JOINT, INJECTOR

17560-KWN-900

$8.61

14

O-RING (7.3X2.2)

91301-KPH-701

$2.92

15

SCREW-WASHER (5X12)

93892-05012-08

$1.49

15

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

16

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
