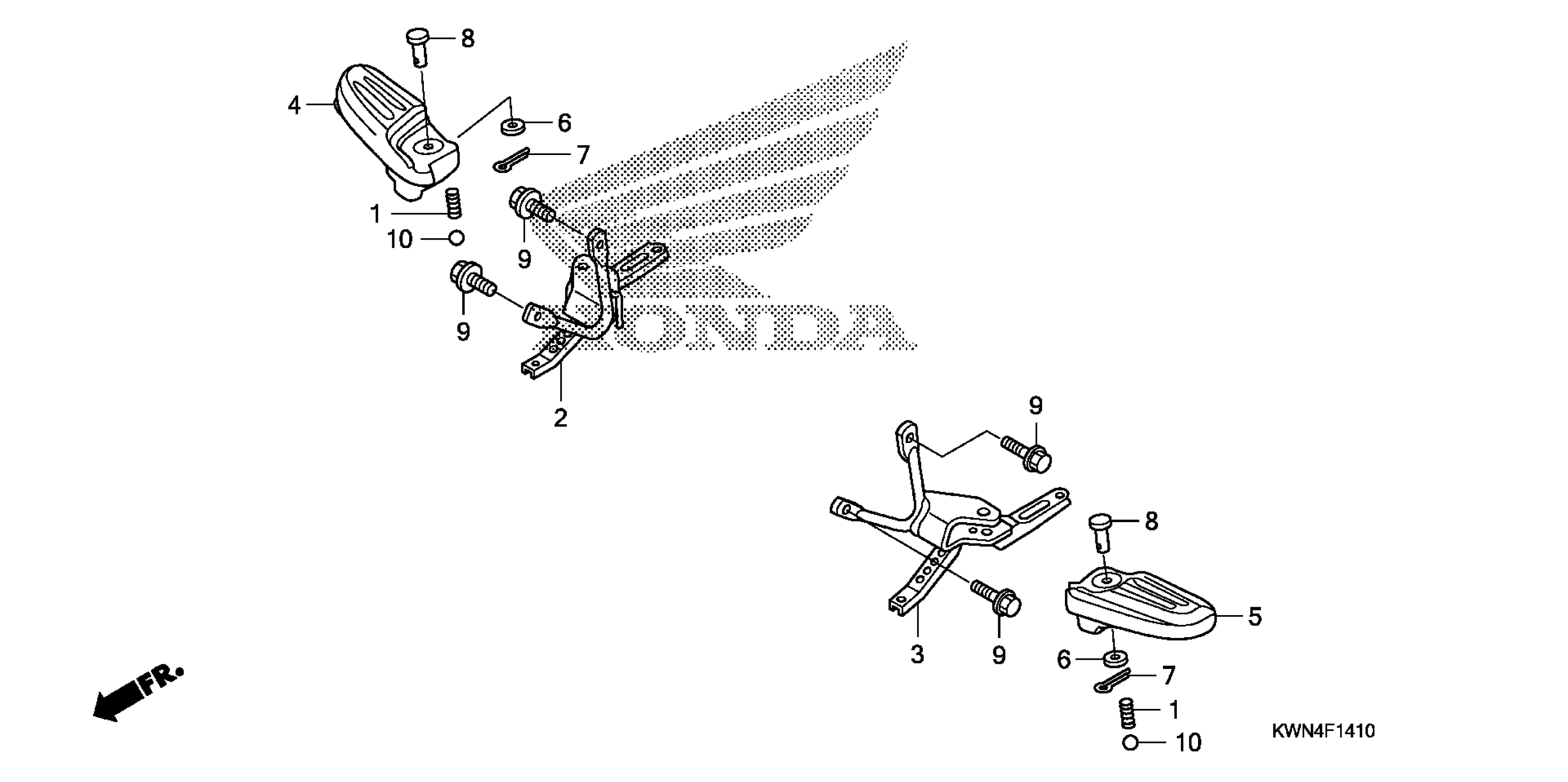

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 STEP Diagram

#

Description

Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

BRACKET, R. PILLION STEP

50715-KWN-900

$12.13

3

BRACKET, L. PILLION STEP

50716-KWN-900

$12.13

4

ARM, R. PILLION STEP (COO)

50720-KWN-305

$8.64

5

ARM, L. PILLION STEP (COO)

50730-KWN-305

$8.64

6

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

6

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

6

WASHER, PLAIN (6MM)

94101-06800

Unavailable

7

PIN, SPLIT (1.6X12)

94201-16120

$0.94

8

PIN A, PILLION STEP

95015-81000

$2.01

9

BOLT, FLANGE (8X20)

95701-08020-00

$1.70

10

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
