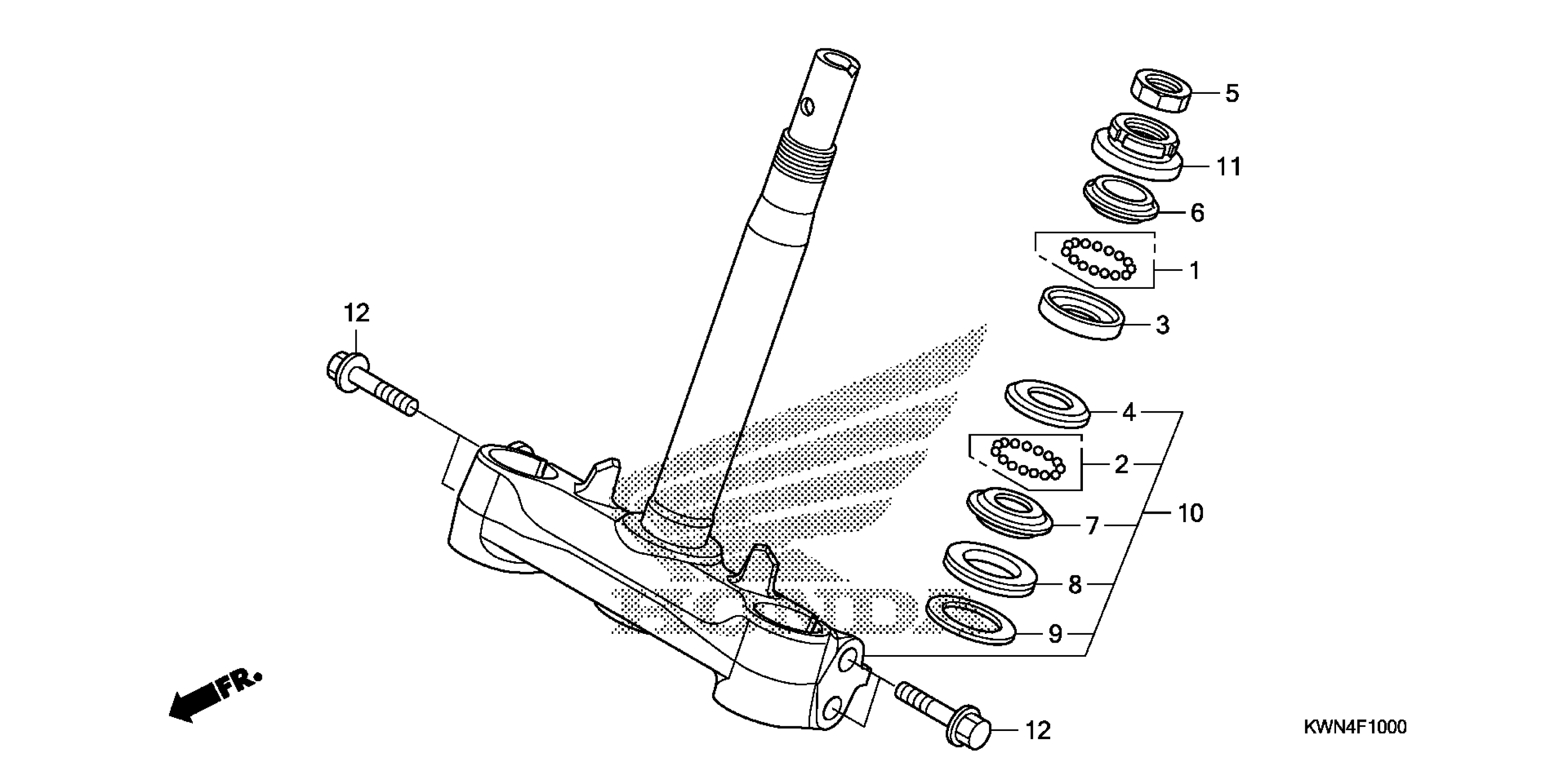

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 STEERING STEM Diagram

#

Description

Price

1

BALL SET, STEEL (#6X23)

06530-GBG-B20

$3.43

2

BALL SET, STEEL (#6X29)

06531-GBG-B20

Unavailable

3

RACE, STEERING TOP BALL

50301-GN5-901

$13.15

4

RACE, STEERING BALL (LOWER)

50302-GN5-900

$10.40

5

NUT, STEERING STEM LOCK

50306-GN5-900

$8.15

6

RACE, STEERING TOP CONE

53211-GN5-900

$13.57

7

RACE, STEERING CONE (LOWER)

53212-GN5-900

$11.25

8

DUST SEAL, STEERING HEAD

53214-GN5-900

$4.72

9

WASHER, STEERING HEAD DUST SEAL

53215-GN5-900

$3.72

10

STEM SUB-ASSY., STEERING

53219-KWN-900

$75.10

11

THREAD, STEERING HEAD TOP

53220-GN5-850

$11.41

12

BOLT, FLANGE (10X40)

95801-10040-08

$2.30
