Partiron

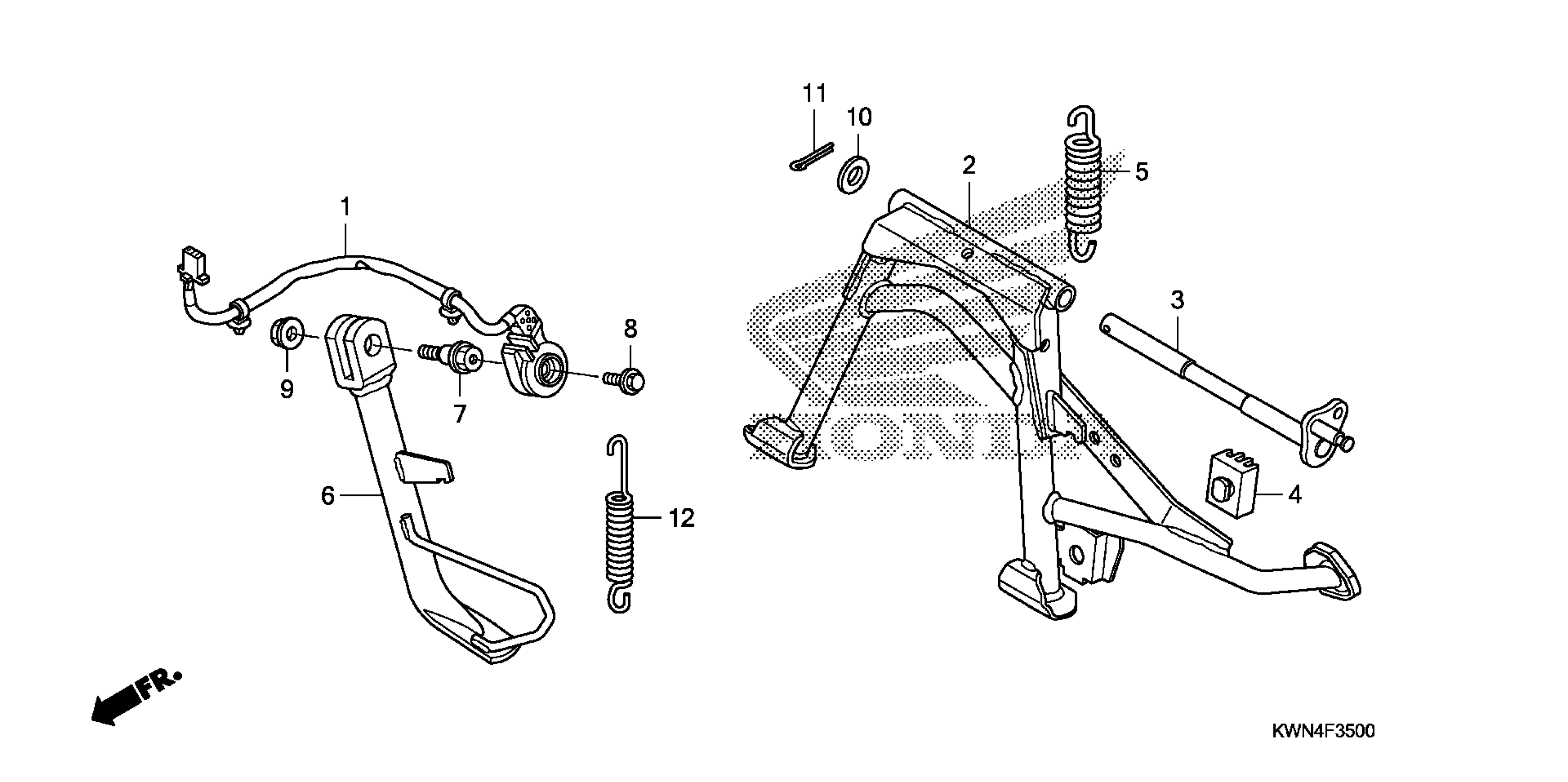

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 STAND Diagram

#

Description
Price

1

SWITCH ASSY., SIDE STAND

35700-KWN-901

$40.00

2

STAND, MAIN (COO) This part replaces 50500-KWN-305.

50500-KWN-315

$93.63

2

STAND, MAIN (COO)

50500-KWN-315

$93.63

3

SHAFT, MAIN STAND

50503-KWN-900

$3.01

4

RUBBER, STAND STOPPER

50505-GR1-710

$2.51

5

SPRING, MAIN STAND

50520-KVB-900

$1.84

6

BAR, SIDE STAND (COO)

50530-KWN-305

$11.47

7

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.43

8

BOLT, SWITCH SETTING

90147-KVY-900

$1.29

9

NUT, SIDE STAND

90203-KVB-900

$1.60

10

WASHER, PLAIN (10MM)

94101-10800

$1.74

11

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$0.96

11

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

11

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$0.96

11

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

11

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

11

PIN, SPLIT (3.0X45)

94201-30450

$0.96

12

SPRING A, SIDE STAND

95014-72102

$2.62
