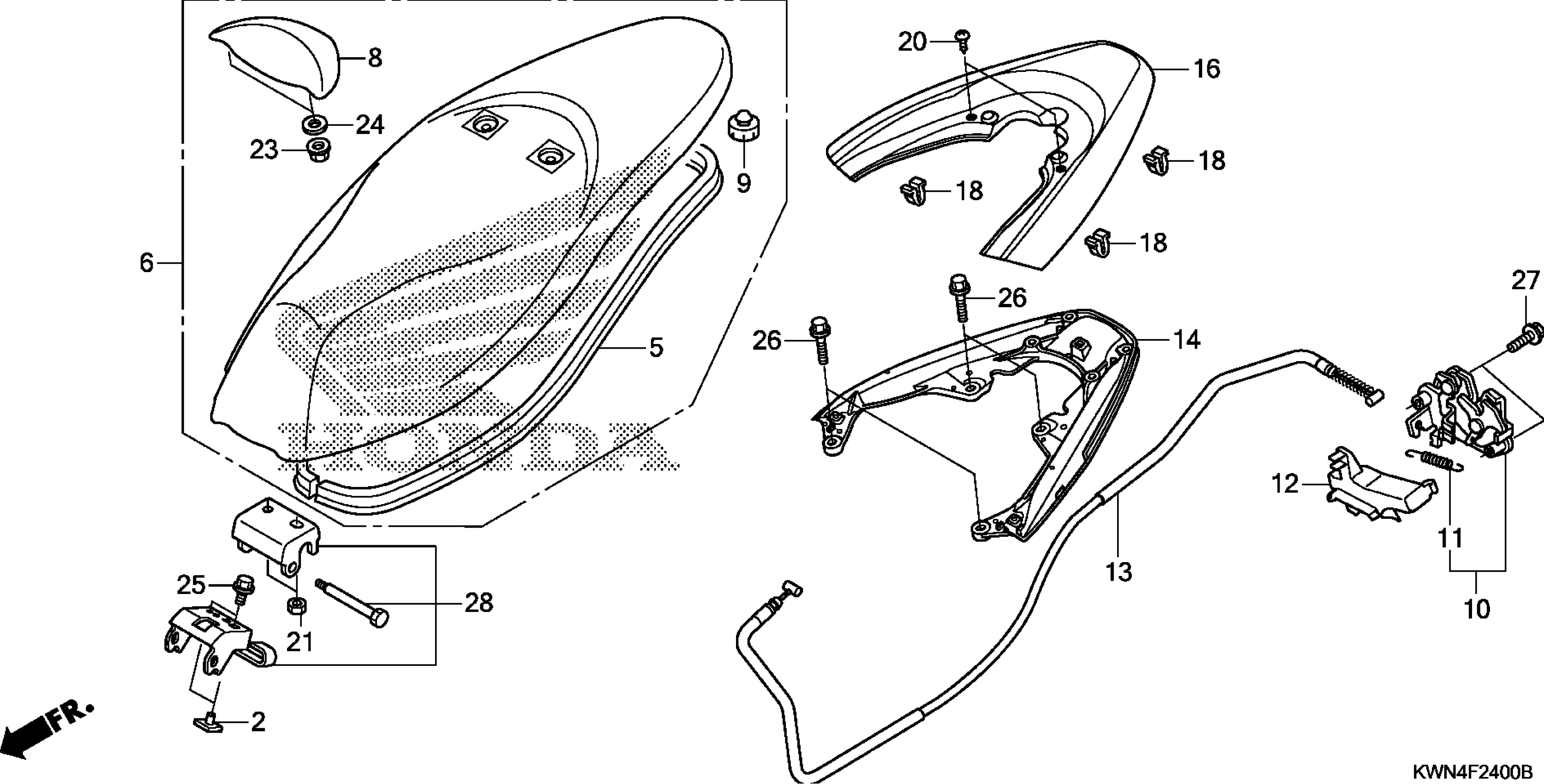

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 SEAT Diagram

#

Description
Price

2

NUT, SPECIAL (6X7)

61304-958-003

$3.10

3

HINGE A, SEAT (INCLUDED WITH REF#28 HINGE ASSY,SEAT SHOWN AS UPPER PART)

77111-KWN-900

$2.22

4

HINGE B, SEAT (INCLUDED WITH REF#28 HINGE ASSY,SEAT SHOWN AS LOWER PART)

77112-KWN-670

Unavailable

5

RUBBER, SEAL

77115-KWN-900

$11.76

6

SEAT, DOUBLE *NH1L* (BLACK) This part replaces 77200-KWN-901ZC.

77200-KWN-902ZC

$416.93

6

SEAT, DOUBLE *NH1L* (BLACK)

77200-KWN-902ZC

$416.93

8

BACKREST ASSY. *NH1L* (BLACK)

77210-KWN-901ZC

$23.41

9

RUBBER C, SEAT SETTING

77215-KW7-900

$5.04

10

CATCH, SEAT

77230-KWN-900

$6.15

11

SPRING, SEAT LOCK

77234-GN2-000

$3.74

12

COVER, SEAT CATCH

77237-KWN-900

$0.91

13

CABLE, SEAT LOCK

77241-KWN-701

$101.29

14

GRAB RAIL, RR.

84100-KWN-901

$42.31

16

COVER SET, RR. GRAB RAIL (TYPE2) (WL) (PEARL HIMALAYAS WHITE) | Pearl himalayas white NHA87P;

84155-KWN-900ZE

$20.06

16

COVER SET, RR. GRAB RAIL (TYPE3) (WL) (CANDY ROSY RED) | Candy rosy red R340C;

84155-KWN-900ZF

$68.37

17

BOLT, SEAT HINGE

90105-KWN-900

$0.93

18

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$0.76

20

SCREW-WASHER (5X8)

93891-05008-07

$0.91

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

21

NUT, HEX. (6MM)

94001-06200-0S

$1.21

23

NUT, FLANGE (6MM)

94050-06000

$0.60

24

WASHER, PLAIN (6MM)

94103-06000

$0.91

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

26

BOLT, FLANGE (8X28)

95701-08028-00

$1.28

27

BOLT, FLANGE (6X22)

95701-06022-08

$1.66

27

BOLT, FLANGE (6X22) This part replaces 95801-06022-08.

95701-06022-08

$1.66

28

HINGE ASSY., SEAT

77110-KWN-670

$37.69
