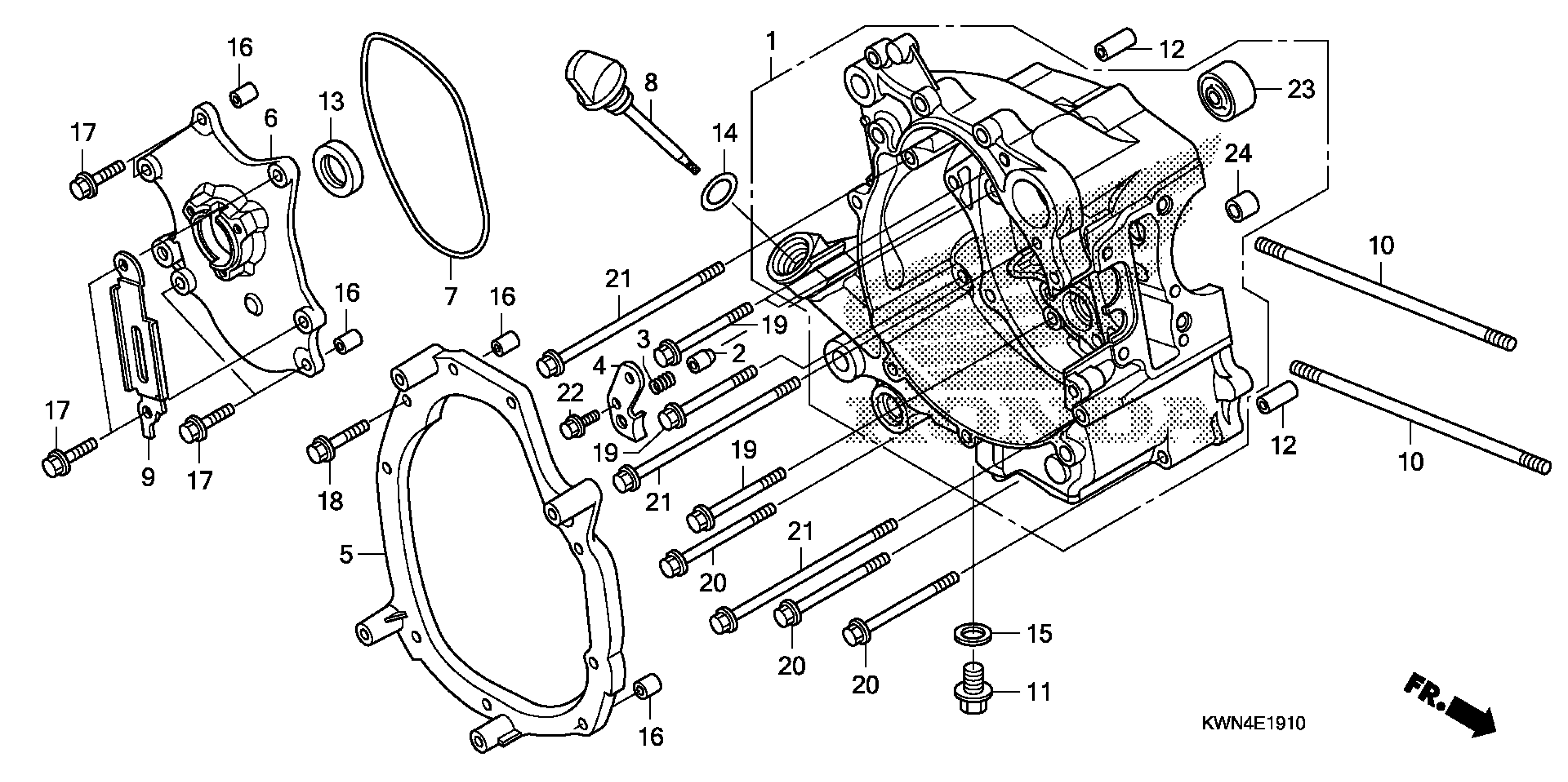

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 RIGHT CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-KWN-900

$120.21

2

PLUG, BEARING PUSH

11114-KWN-900

$1.49

3

SPRING, BEARING PUSH

11116-KWN-900

$1.49

4

PLATE, BEARING PUSH

11117-KWN-901

$1.49

5

HOLDER, RADIATOR

11331-KWN-900

$14.43

6

BASE, STATOR This part replaces 11361-KWN-900.

11361-KWN-901

$9.59

6

BASE, STATOR

11361-KWN-901

$9.59

7

GASKET, STATOR BASE

11363-KWN-900

$1.49

8

DIPSTICK, OIL

15651-KWN-900

$1.61

9

CLAMP, ALTERNATOR WIRE

32961-KWN-900

$1.49

10

BOLT A, STUD (8X200.5)

90031-KWN-900

$2.30

11

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

11

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

12

PIN, DOWEL SPECIAL (6.3X10X30)

90702-KWN-900

$1.49

13

OIL SEAL (20.8X32X6)

91201-KWN-901

$1.49

14

O-RING (18X3)

91307-035-000

$2.92

15

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

16

PIN, DOWEL (8X10)

94301-08100

$2.25

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

18

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

19

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

20

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

21

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

22

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

23

BUSH, ENGINE HANGER RUBBER (HOKUSHIN)

11103-KVB-901

$3.67

24

BUSH, MAIN STAND

11205-GBC-300

$1.49
