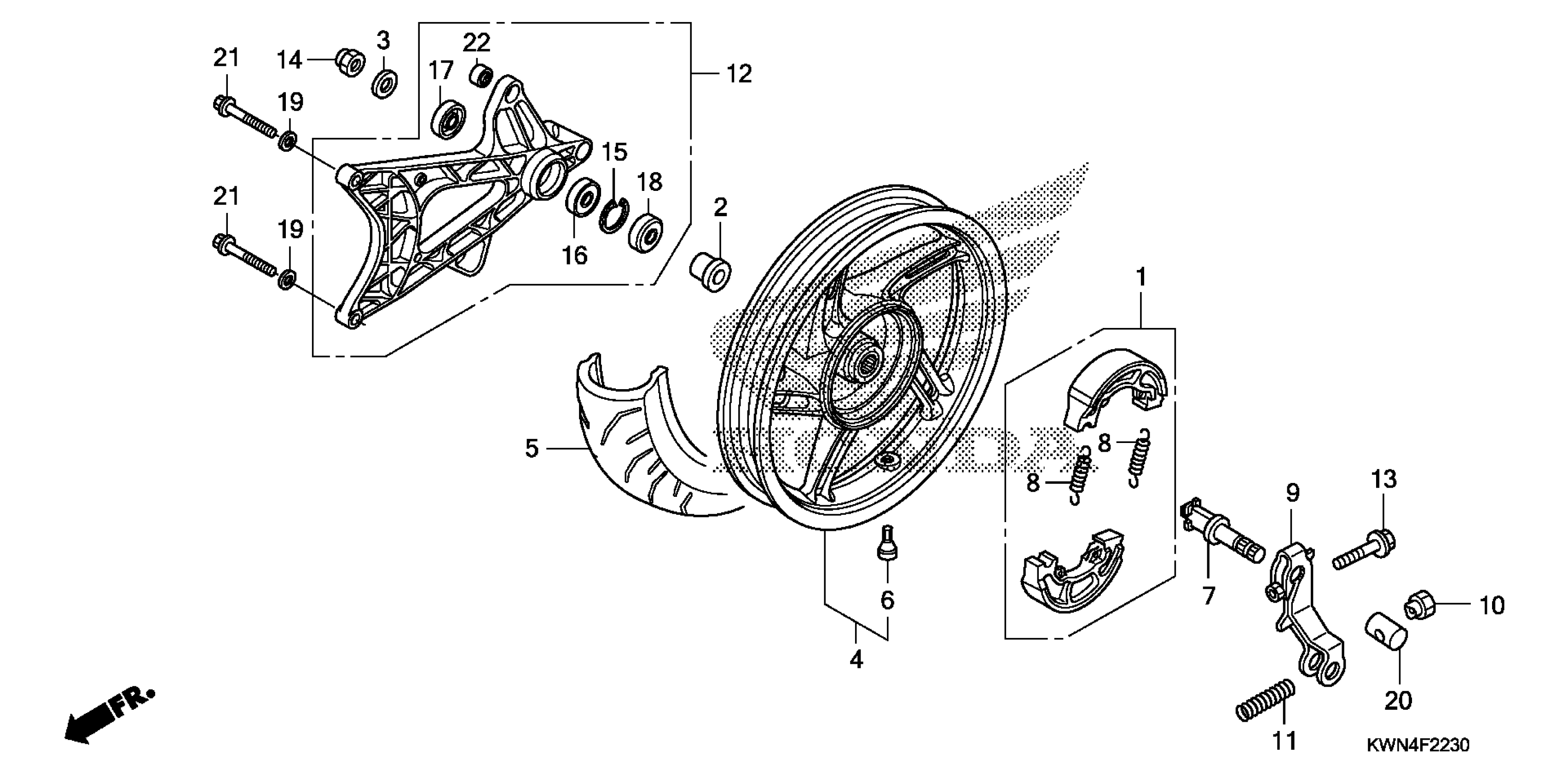

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 REAR WHEEL + SWINGARM Diagram

SHOE SET, BRAKE (JB)

06430-KWN-900

$19.89

COLLAR, RR. WHEEL SIDE

42311-KWN-900

$4.04

COLLAR B, RR. WHEEL SIDE

42312-KWN-700

$1.93

WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC)

42650-KWN-305ZA

$198.23

TIRE,RR(IRC) This part replaces 42711-KWN-901.

42711-KWN-903

Unavailable

TIRE,RR(IRC) This part replaces 42711-KWN-902.

42711-KWN-903

Unavailable

VALVE, RIM (IRC)

42753-GM9-743

$7.79

CAM, RR. BRAKE

43141-KWN-930

$6.17

SPRING, BRAKE SHOE

43151-329-000

$2.62

ARM, RR. BRAKE

43410-KWN-900

$2.06

NUT B, BRAKE ROD ADJUSTING This part replaces 43459-GN5-760.

95015-42000

$1.75

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

SPRING, RR. BRAKE ARM

43472-KVB-900

$1.25

SWINGARM ASSY.

52100-KWN-900

$60.46

BOLT, FLANGE (6X32)

90112-KVB-900

$0.70

NUT, U (16MM)

90305-KWN-701

$5.10

CIRCLIP (INNER) (47)

90601-KVG-900

$2.35

BEARING, RADIAL BALL (6303)

91051-KS4-003

$34.41

DUST SEAL (37X25X6)

91258-HB3-003

$6.75

SEAL (25X47X5)

91259-KM1-003

$7.77

WASHER, PLAIN (10MM)

94101-10000

Unavailable

JOINT B, BRAKE ARM

95015-32001

$0.86

BOLT, FLANGE (10X40)

95701-10040-00

$1.38

BUSH, RR. CUSHION RUBBER (LOWER) (HOKUSHIN)

11203-KVB-901

$3.97
