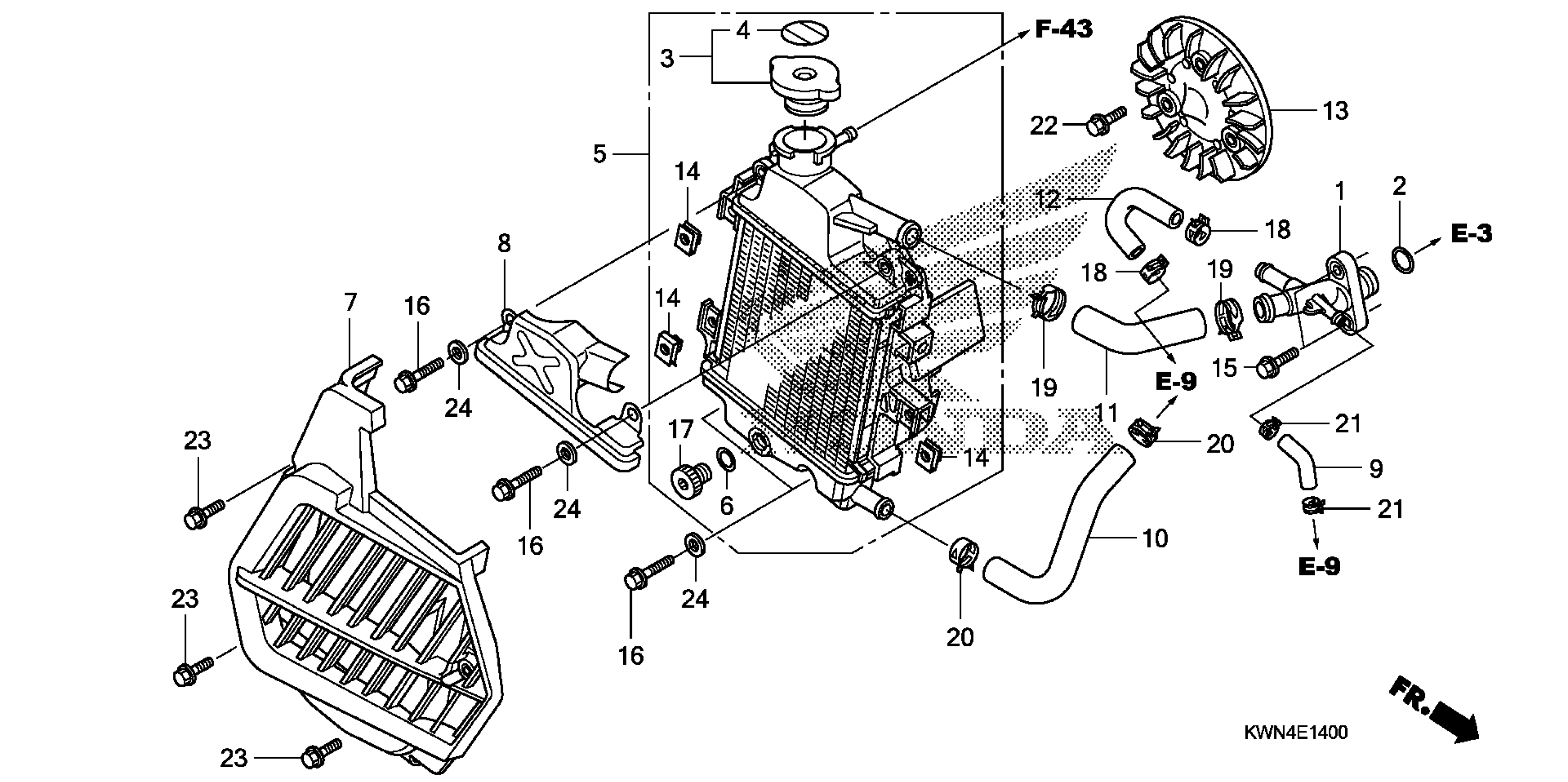

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 RADIATOR Diagram

#

Description
Price

1

JOINT, WATER HOSE

12206-KWN-900

$7.59

2

O-RING (15.4X2)

12207-KWN-900

$0.96

3

CAP, RADIATOR

19037-GEE-710

$27.19

4

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

5

RADIATOR ASSY.

19100-KWN-700

$112.36

6

SEAL, DRAIN

19109-GET-003

$2.06

7

COVER, RADIATOR

19150-KWN-900

$6.70

8

COVER, RADIATOR TOP

19161-KWN-900

$1.54

9

TUBE, AIR BREATHER

19332-KWN-900

$0.88

10

HOSE A, WATER

19501-KWN-900

$5.80

11

HOSE B, WATER

19502-KWN-900

$5.74

12

HOSE, BYPASS

19504-KWN-900

$4.39

13

FAN, COOLING

19510-KWN-900

$3.94

14

NUT, FENDER SETTING

84601-HA7-670

$5.15

15

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.52

16

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

17

BOLT, DRAIN

90103-GET-003

$3.80

18

CLIP, HOSE

90678-MR1-690

$2.14

19

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$0.75

20

CLAMP, WATER HOSE (21MM)

90701-MF5-003

$5.14

21

CLAMP, TUBE (D10.5)

95002-41050-08

$2.30

22

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

23

BOLT, FLANGE (6X16)

96001-06016-07

$0.96

24

WASHER, PLAIN (6MM)

90583-KVB-900

$0.83
