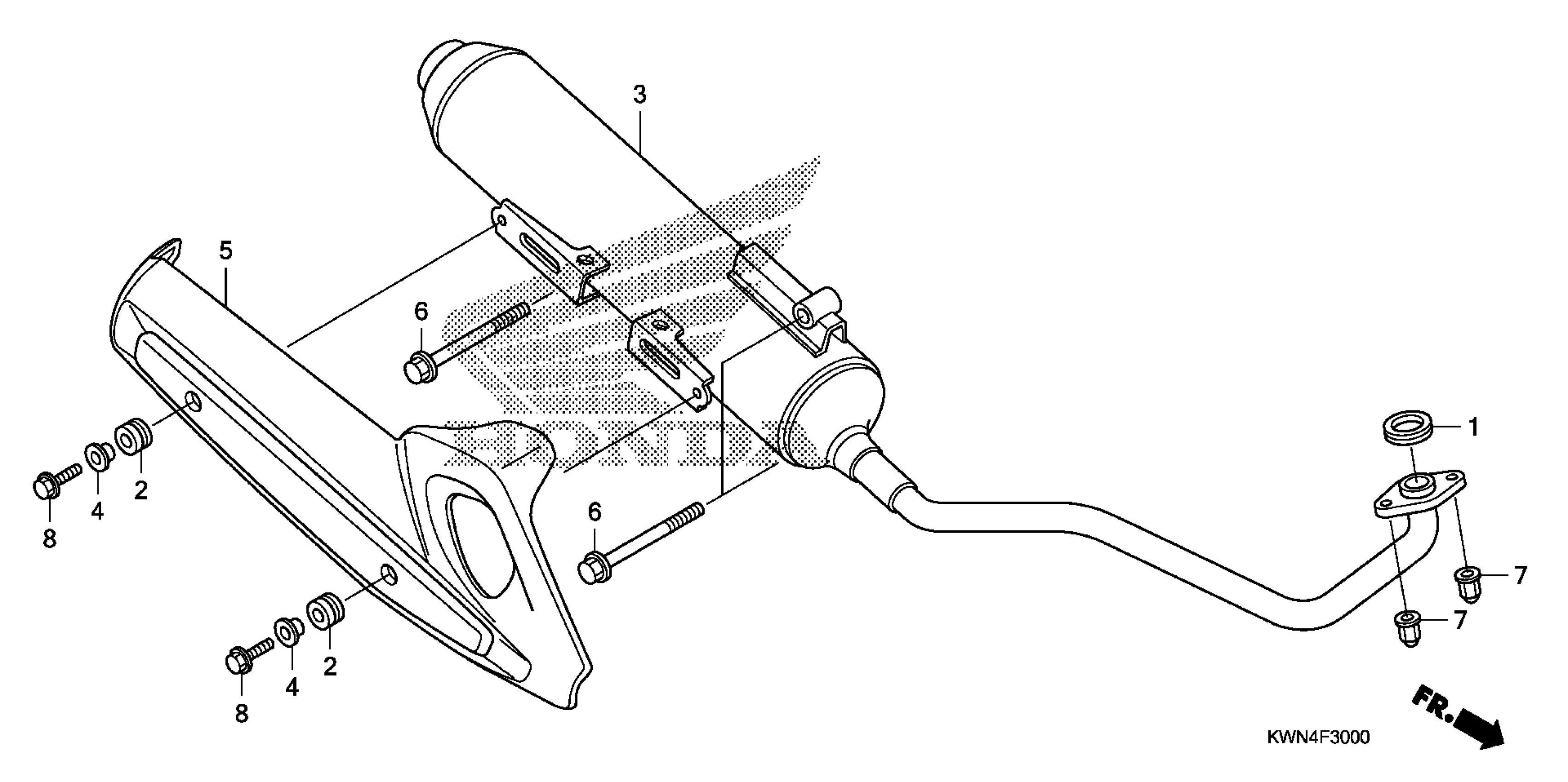

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 MUFFLER Diagram

#

Description

Price

1

GASKET, EX. PIPE

18291-KVB-900

$0.72

2

RUBBER, PROTECTOR GASKET

18293-KSB-900

$1.49

3

MUFFLER, EX. (COO)

18300-KWN-305

$230.37

4

COLLAR, MUFFLER PROTECTOR

18316-KVB-900

$1.68

5

PROTECTOR, MUFFLER

18318-KWN-900

$10.03

6

BOLT, FLANGE (10X65)

90102-KWN-900

$2.73

7

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.57

8

BOLT, FLANGE (6X16)

95801-06016-02

$1.25
