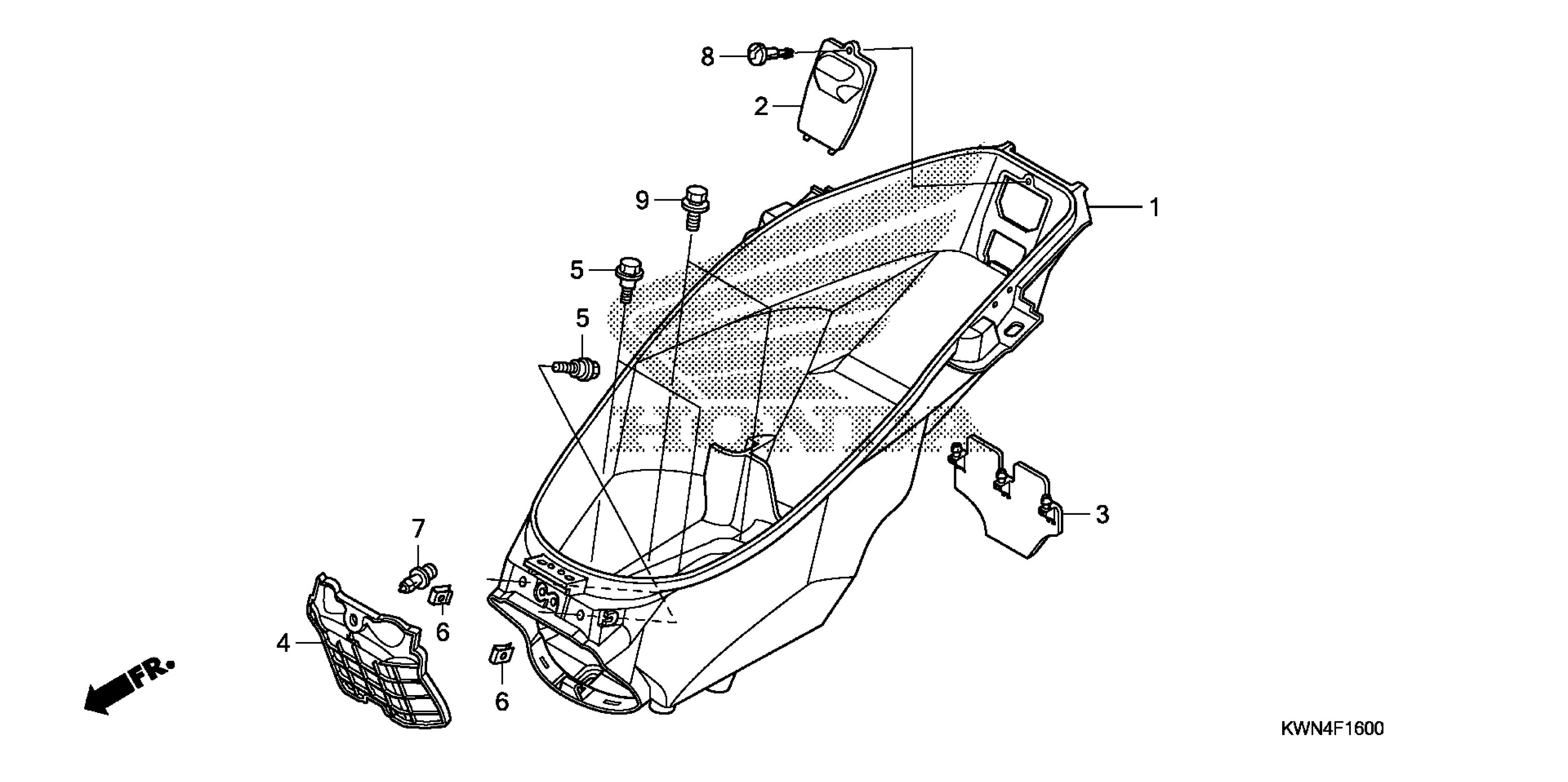

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 LUGGAGE BOX Diagram

#

Description
Price

1

BOX, LUGGAGE

81250-KWN-900

$29.40

2

LID, LUGGAGE BOX

81253-KWN-900

$1.09

3

SPLASH GUARD, RR.

81265-KWN-900

$3.09

4

COVER, BATTERY

81290-KWN-900

$2.50

5

BOLT, FLANGE (6MM)

90111-187-000

$7.39

6

NUT, SPRING (4MM)

90302-SA4-003

$5.32

7

CLIP, BATTERY COVER

90634-KPG-900

$0.38

8

CLIP, TRIM

90683-GAZ-003

$3.63

9

BOLT-WASHER (6X12)

93404-06012-00

$1.63
