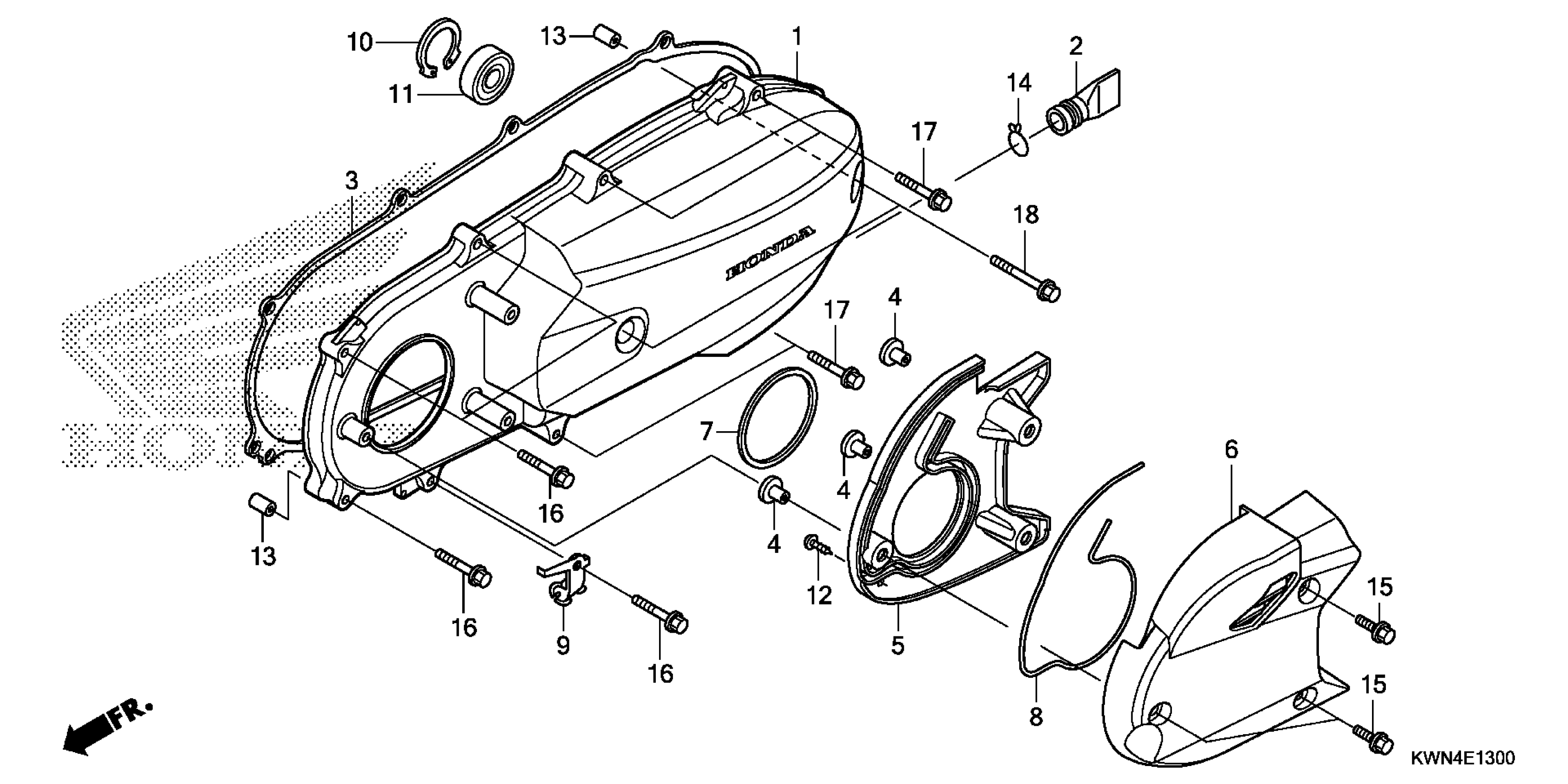

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 LEFT SIDE COVER Diagram

Description

Price

COVER, L. SIDE

11340-KWN-900

$43.57

TUBE, DRAIN

11343-KVG-900

$1.29

GASKET, L. COVER

11395-KWN-900

$6.74

COLLAR

19416-KEY-900

$0.72

DUCT, L. COVER

19641-KWN-900

$3.40

CAP, L. COVER

19642-KWN-900

$4.66

SEAL, BELT COVER DUCT

19645-KWN-900

$1.74

SEAL, L. COVER DUCT

19649-KWN-900

$0.57

CLAMP B, RR. BRAKE CABLE

43455-KWN-900

$0.35

CIRCLIP (INNER) (32MM)

90652-KVB-900

$0.57

BEARING (6002UU) (NTN)

91005-KVB-900

$7.85

SCREW, TAPPING (4X16)

93903-24480

$0.90

PIN, DOWEL (8X14)

94301-08140

$2.76

CLIP, TUBE (C12)

95002-80000

$0.43

BOLT, FLANGE (6X18)

96001-06018-07

$1.16

BOLT, FLANGE (6X28)

96001-06028-00

$2.75

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

BOLT, FLANGE (6X65)

96001-06065-00

Unavailable
