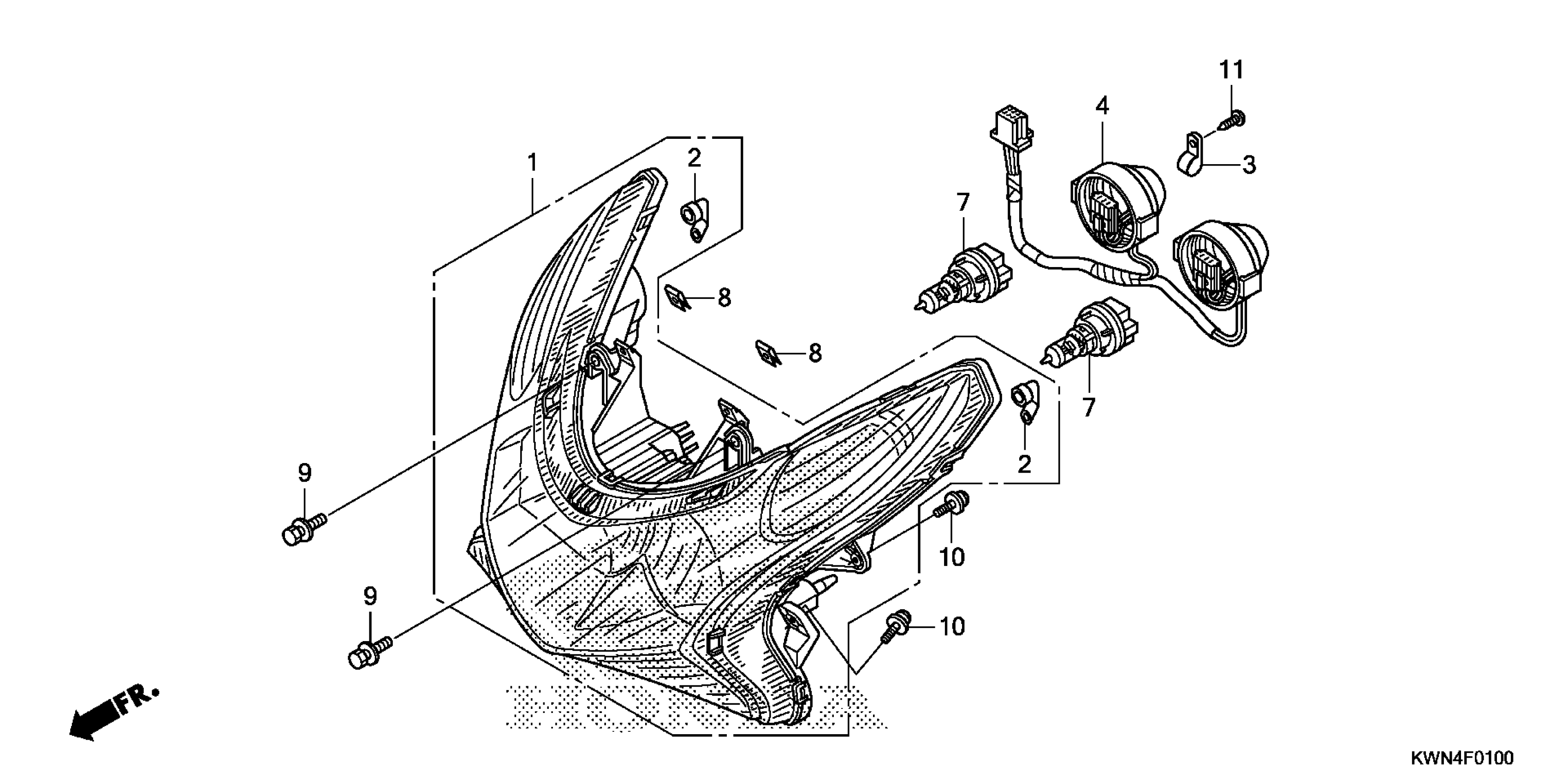

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 HEADLIGHT Diagram

#

Description

Price

1

HEADLIGHT UNIT (COO)

33110-KWN-305

$200.61

2

PIPE, CP

33113-KVB-T01

$1.19

3

CLAMP, WIRE

32920-MN5-003

$3.09

4

SOCKET ASSY., HEADLIGHT

33150-KWN-671

$20.88

7

BULB, HEADLIGHT (12V 35/30W) (HS5) (STANLEY)

34901-GFM-971

$70.22

7

BULB, HEADLIGHT (12V 35/30W) (HS5) (STANLEY) This part replaces 34901-GGE-901.

34901-GFM-971

$70.22

8

NUT, SPRING (4MM)

90302-SA4-003

$4.91

9

BOLT-WASHER (6X12)

93404-06012-00

$1.48

10

SCREW-WASHER (5X14)

93894-05014-00

$0.80

11

SCREW, TAPPING (4X12) (PO)

93911-24310

$0.83
