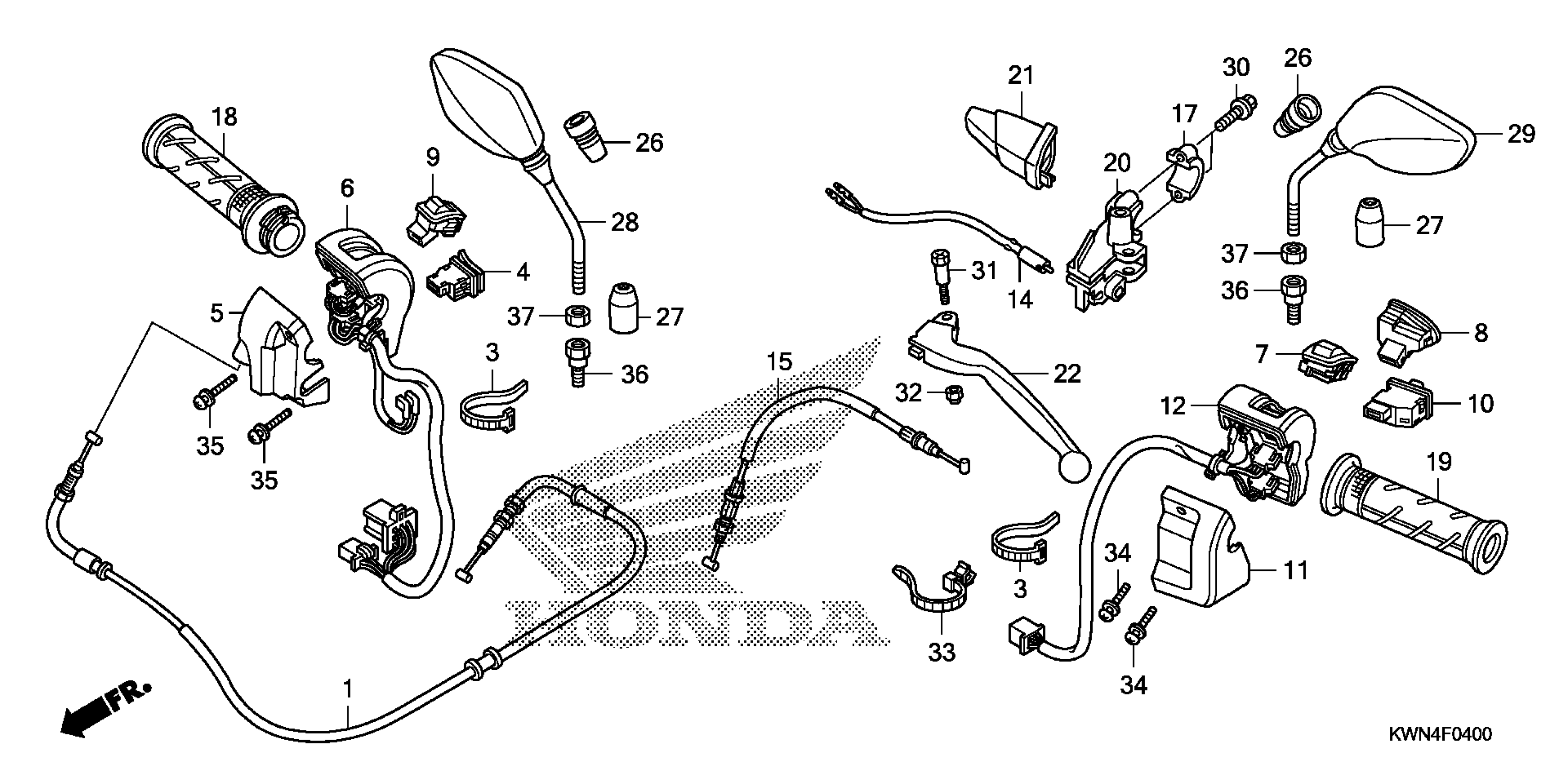

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 HANDLE LEVER + SWITCH + CABLE Diagram

CABLE, THROTTLE

17910-KWN-901

$40.18

BAND B1, WIRE

32161-404-000

$2.23

SWITCH UNIT, STARTER | Use from Frame SN B5000904

35160-KWW-A01

Unavailable

SWITCH UNIT, STARTER | Use up to Frame SN B5000903

35160-KWW-711

Unavailable

HOUSING, RR. STARTER SWITCH

35162-KWN-901

$3.52

HOUSING, STARTER SWITCH

35165-KWN-671

$26.80

SWITCH UNIT, DIMMER

35170-KWW-A02

$3.93

SWITCH UNIT, DIMMER | Use up to Frame SN B5000903 This part replaces 35170-KWW-602.

35170-KWW-A02

$3.93

SWITCH UNIT, HORN | Use from Frame SN B5000904

35180-KWW-A01

$29.02

SWITCH UNIT, HORN | Use up to Frame SN B5000903

35180-KWW-601

$6.23

SWITCH UNIT, ENGINE STOP

35130-KWN-671

$13.97

SWITCH UNIT, TURN SIGNAL | Use from Frame SN B5000904

35200-KWW-A01

Unavailable

SWITCH UNIT, TURN SIGNAL | Use up to Frame SN B5000903

35200-KWW-601

Unavailable

HOUSING, RR. TURN SIGNAL SWITCH

35202-KWN-901

$2.95

HOUSING, TURN SIGNAL SWITCH

35205-KWN-901

$21.20

SWITCH ASSY., RR. STOP

35345-KWN-701

$15.10

CABLE, RR. BRAKE FIRST

43440-KWN-671

$15.49

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

GRIP, THROTTLE (COO)

53140-KWN-305

$5.66

GRIP, L. HANDLE (COO)

53166-KWN-305

$7.90

BRACKET, L. HANDLE LEVER

53172-KWN-670

$11.51

BOOT, L. LEVER

53177-KWN-900

$1.59

LEVER, L. HANDLEBAR (COO)

53178-KWN-305

$11.96

BOOT, MIRROR

88114-KWN-900

$2.07

CAP, LOCK NUT

88115-KWN-900

$1.66

MIRROR, R. (COO)

88210-KWN-305

$21.59

MIRROR, L. (COO)

88220-KWN-305

$21.59

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$1.49

BOLT, HANDLE LEVER PIVOT

90115-KWN-700

$1.49

NUT, HEX. (5MM)

90302-435-761

$2.23

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

$6.24

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X25)

93892-05025-07

$1.49

BOLT, ADAPTER (10MM)

90103-KWN-901

$1.49

NUT, HEX. (10MM) (LEFT HAND THREAD)

90302-KWN-901

$1.49
