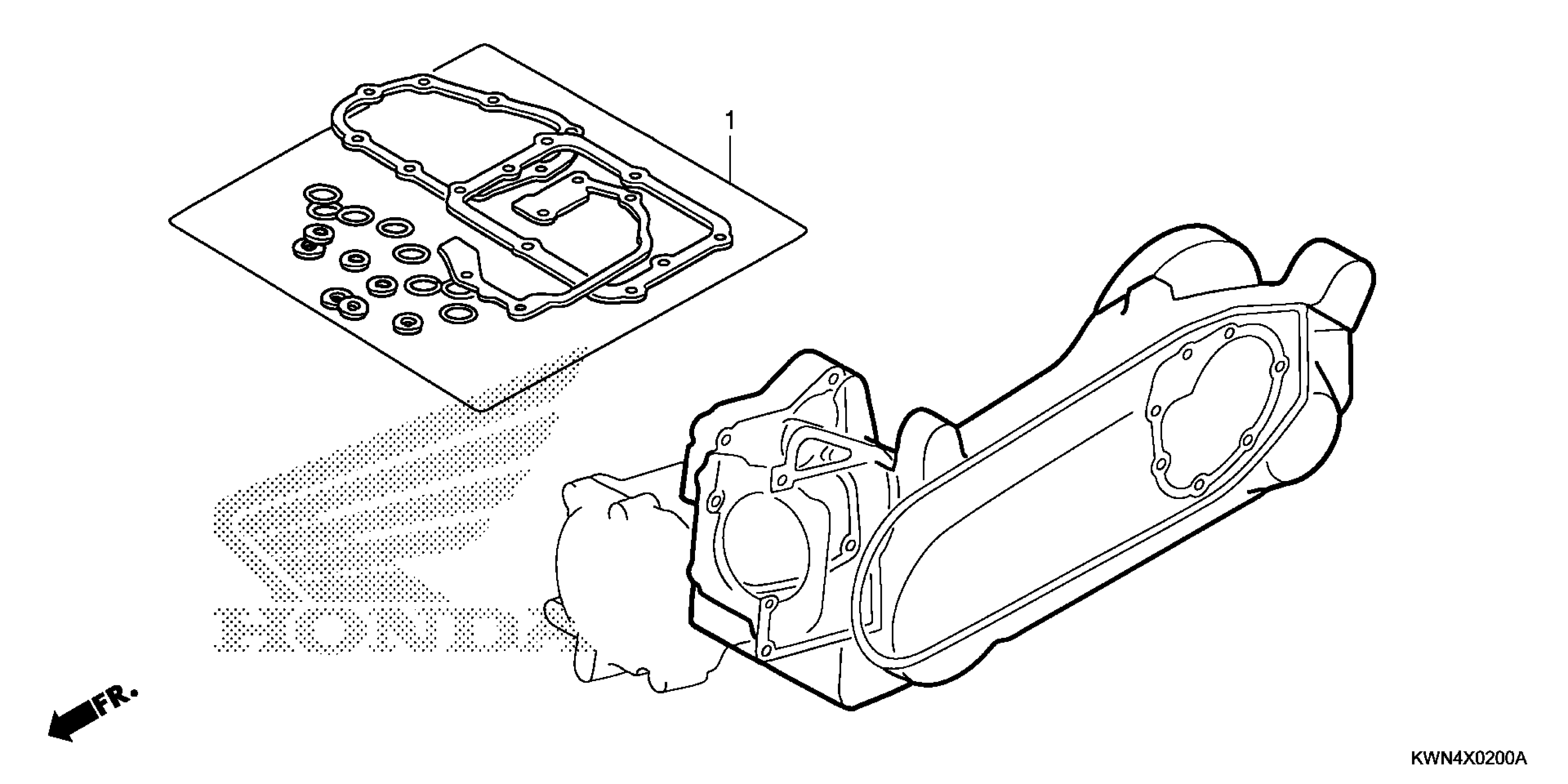

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 GASKET KIT B Diagram

GASKET KIT B (COMPONENT PARTS)

06112-KWN-700

$81.07

GASKET, STATOR BASE

11363-KWN-900

$1.49

GASKET, L. COVER

11395-KWN-900

$7.51

SEAL, BELT COVER DUCT

19645-KWN-900

$1.93

SEAL, L. COVER DUCT

19649-KWN-900

$1.49

GASKET, TRANSMISSION CASE

21395-KWN-900

$4.26

WASHER, SEALING (8MM)

90495-MN5-000

$3.56

O-RING (30.8MM)

91302-001-020

$3.75

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING (18X3)

91307-035-000

$2.92

O-RING (38.5X2)

91351-GR1-000

$2.92

O-RING, PINION CAP

91351-642-000

$4.22

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49
