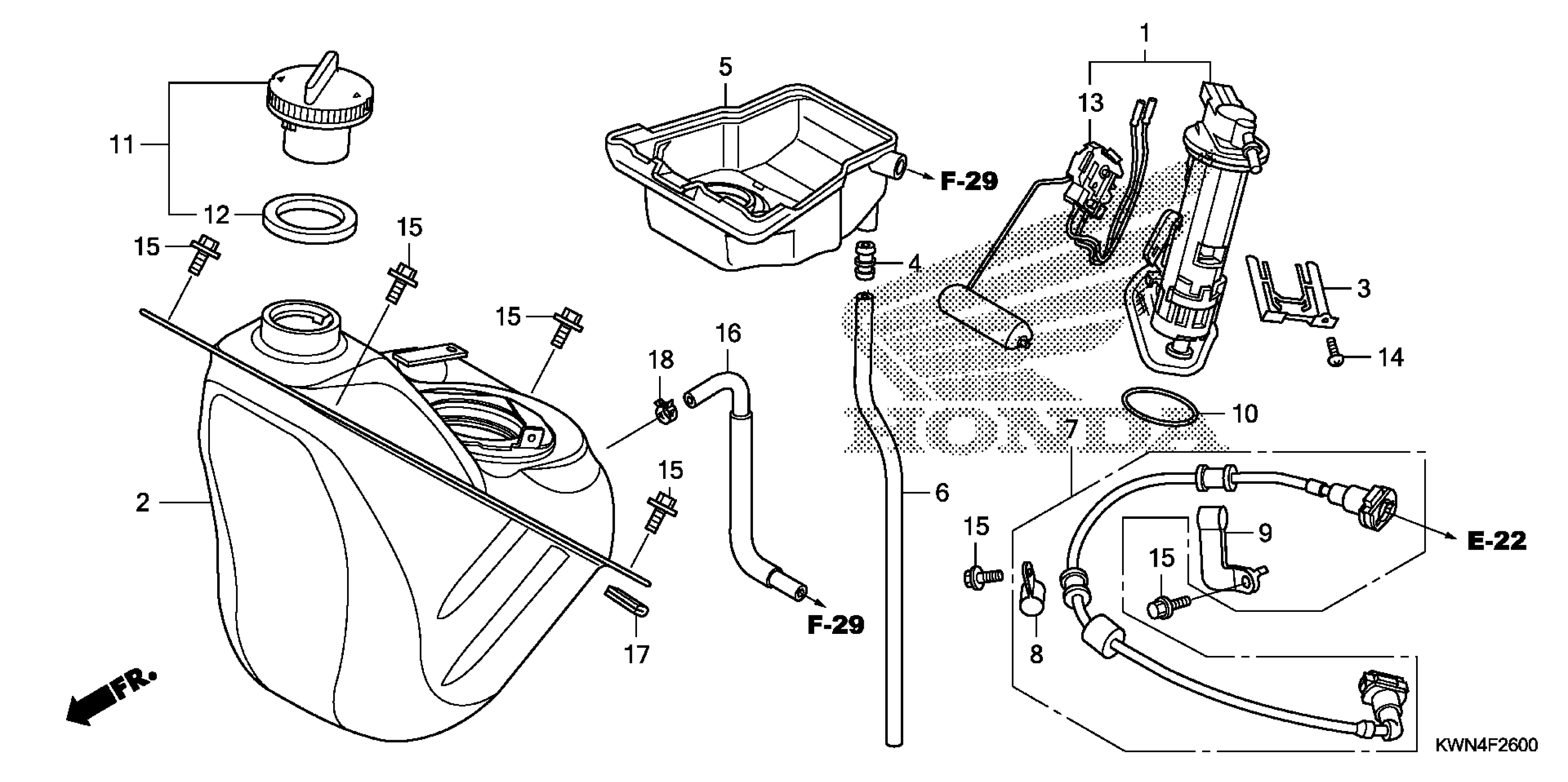

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 FUEL TANK Diagram

#

Description
Price

1

PUMP UNIT, FUEL | Use up to Frame SN B5001047 This part replaces 16700-KWN-901.

16700-KWN-904

$143.70

1

PUMP UNIT, FUEL | Use up to Frame SN B5001047 This part replaces 16700-KWN-903.

16700-KWN-904

$143.70

1

PUMP UNIT, FUEL | Use up to Frame SN B5001047

16700-KWN-904

$143.70

1

PUMP UNIT, FUEL | Use from Frame SN B5001583

16700-KWN-904

$143.70

2

TANK, FUEL

17510-KWN-670

$58.64

3

RETAINER, FUEL PUMP

17517-KWB-600

$1.80

4

JOINT, FUEL TUBE

17525-KBN-900

$3.52

5

TRAY, FUEL

17525-KWN-900

$3.77

6

TUBE, DRAIN

17526-KWN-900

$0.87

7

HOSE, FUEL FEED

17531-KWN-901

$29.67

8

CLAMP, FUEL HOSE

17568-KWN-900

$0.86

9

CLAMP B, FUEL FEED HOSE

17569-KWN-900

$0.84

10

O-RING, FUEL PUMP

17572-KWB-600

$1.83

11

CAP COMP.,FUEL FILL This part replaces 17620-KTG-A10.

17620-KTG-A11

$38.04

12

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

Unavailable

13

FUEL UNIT

37800-KWN-901

$43.09

14

SCREW, PAN (4X10)

93500-04010-0G

$0.58

15

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

16

TUBE, CHARGE

17411-KWN-670

$7.58

17

TRIM, FUEL TANK

17516-HC0-000

$4.49

18

CLAMP, TUBE (D7.3)

95002-40730-08

$2.30
