Description

Price

1

FORK ASSY., R. FR. (COO)

51400-KWN-305

$160.26

2

SPRING, FR. FORK

51401-KWN-901

$6.06

3

PIPE, FR. FORK

51410-KWN-901

$36.59

4

SPRING, FR. FORK REBOUND

51412-GC4-003

$6.10

5

RING, BACK-UP (SHOWA)

51412-KK4-003

$6.30

6

CASE, R. FR. (LOWER) (SHOWA)

51420-KWN-671

$37.75

7

PIECE, OIL LOCK

51432-KM7-910

$18.75

8

RING, PISTON

51437-GS3-003

$7.45

9

CAP, FORK PIPE

51449-GBY-631

$1.76

10

SEAT, SPRING (UPPER)

51454-GBY-631

$3.97

11

RING, STOPPER (SHOWA)

51456-355-003

$6.54

12

PIPE, SEAT

51470-KWN-901

$9.26

13

SEAL SET, FR. FORK (SHOWA)

51490-KRM-852

$19.31

14

FORK ASSY., L. FR. (COO)

51500-KWN-305

$160.34

15

CASE, L. FR. (LOWER) (SHOWA)

51520-KWN-671

$39.26

16

BOLT, SOCKET (8X27) (SHOWA)

90116-383-721

Unavailable

17

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

18

RING, OIL SEAL STOP (SHOWA)

90601-354-000

$4.89

19

DUST SEAL (SHOWA)

91254-GAA-003

$15.61

20

O-RING

91356-GBB-003

$0.81

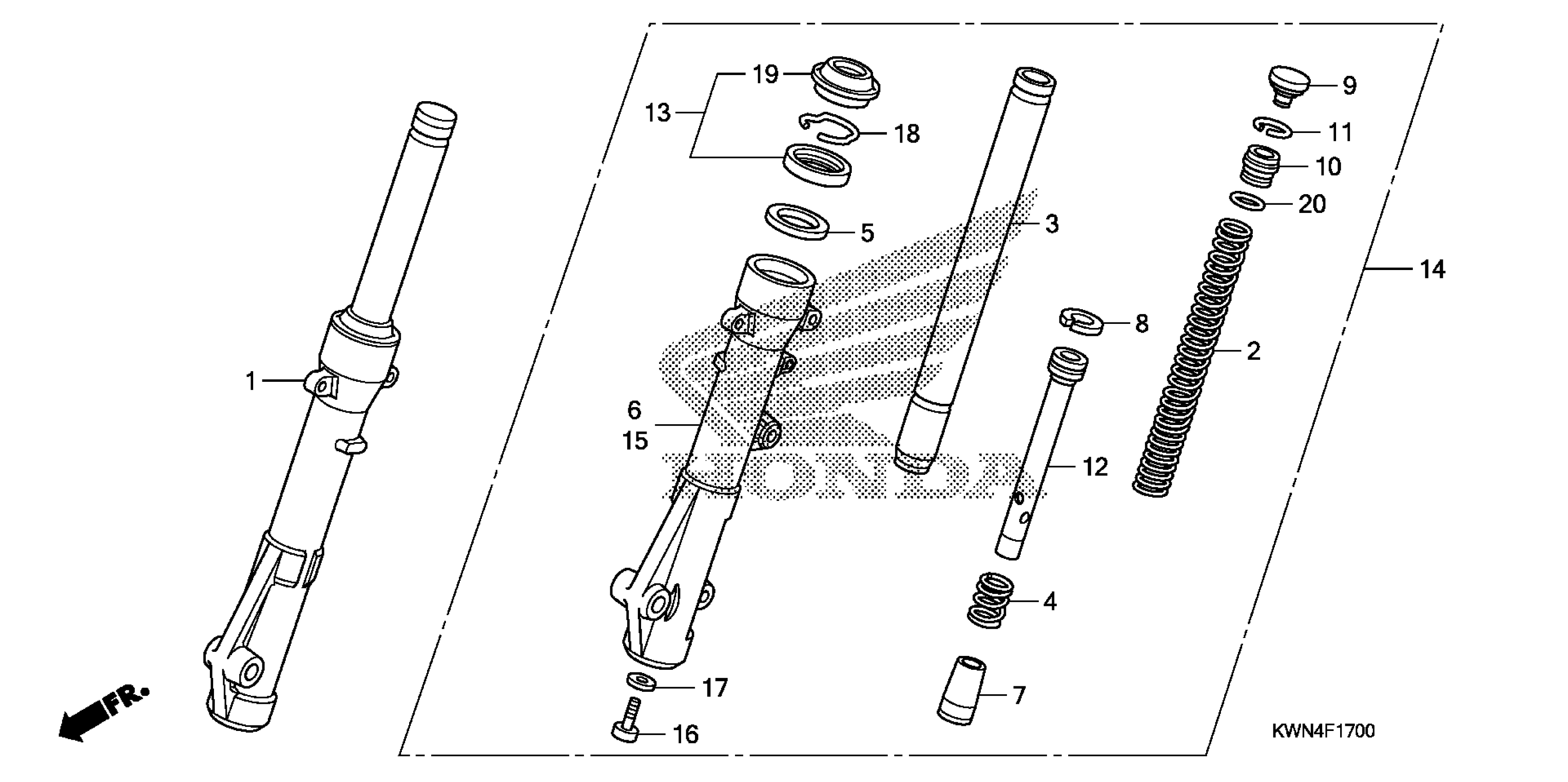

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 FRONT FORK Diagram
