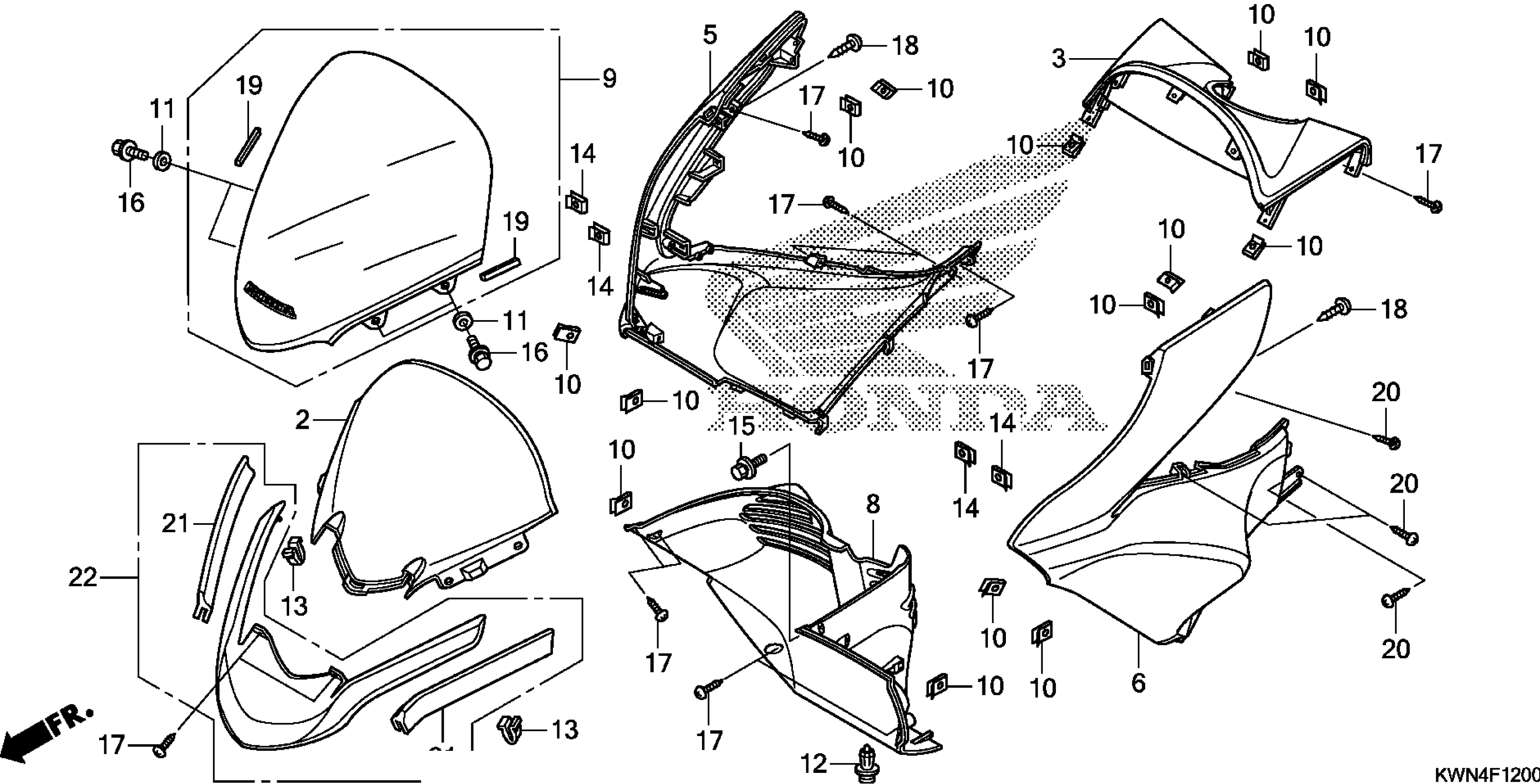

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 FRONT COVER Diagram

#

Description
Price

2

PANEL, FR. METER *NH1* (BLACK)

64336-KWN-900ZA

$5.99

3

PANEL, RR. METER *NHA87P* (PEARL HIMALAYAS WHITE) | Pearl himalayas white NHA87P;

64337-KWN-900ZB

$28.80

3

PANEL, RR. METER *R340C* (CANDY ROSY RED) | Candy rosy red R340C;

64337-KWN-900ZC

$28.71

5

COVER, R. FR. *NHA87P* (PEARL HIMALAYAS WHITE) This part replaces 64501-KWN-901ZB.

64501-KWN-902ZB

$45.22

5

COVER, R. FR. *R340C* (CANDY ROSY RED) This part replaces 64501-KWN-901ZC.

64501-KWN-902ZC

$44.97

5

COVER, R. FR. *NHA87P* (PEARL HIMALAYAS WHITE)

64501-KWN-902ZB

$45.22

5

COVER, R. FR. *R340C* (CANDY ROSY RED)

64501-KWN-902ZC

$44.97

6

COVER, L. FR. *NHA87P* (PEARL HIMALAYAS WHITE) This part replaces 64502-KWN-901ZB.

64502-KWN-902ZB

$48.64

6

COVER, L. FR. *R340C* (CANDY ROSY RED) This part replaces 64502-KWN-901ZC.

64502-KWN-902ZC

$44.97

6

COVER, L. FR. *NHA87P* (PEARL HIMALAYAS WHITE)

64502-KWN-902ZB

$48.64

6

COVER, L. FR. *R340C* (CANDY ROSY RED)

64502-KWN-902ZC

$44.97

8

COVER, FR. (LOWER) *NH1* (BLACK)

64520-KWN-900ZA

$32.07

9

VISOR SET, METER (TYPE1) (WL)(COO) This part replaces 67100-KWN-640ZA.

67100-KZY-305ZA

$46.36

9

VISOR SET, METER (TYPE1) (WL)(COO)

67100-KZY-305ZA

$46.36

10

NUT, SPRING (4MM)

90302-SA4-003

$4.91

11

WASHER (9.5X18)

90504-KWN-900

$0.86

12

CLIP, AIR IN. DUCT PUSH

90601-PV3-003

$3.80

13

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$0.75

14

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

15

BOLT-WASHER (6X12)

93404-06012-07

$1.48

16

BOLT-WASHER (6X12)

93404-06012-07

$1.48

16

BOLT-WASHER (6X12) This part replaces 93414-06012-07.

93404-06012-07

$1.48

17

SCREW, TAPPING (4X16)

93903-34480

$0.83

18

SCREW, TAPPING (5X16)

93903-35380

$0.83

19

SPONGE, RUBBER

80109-KWN-700

$0.51

20

SCREW, TAPPING (4X16)

93903-34410

$0.75

21

MOLDING, WINDSCREEN

64105-KWN-640

$6.40

22

GRILL ASSY., FR. *NHA87P* (PEARL HIMALAYAS WHITE) | Pearl himalayas white NHA87P;

64300-KWN-640ZC

$45.42

22

GRILL ASSY., FR. *R340C* (CANDY ROSY RED) | Candy rosy red R340C;

64300-KWN-640ZD

$45.04
