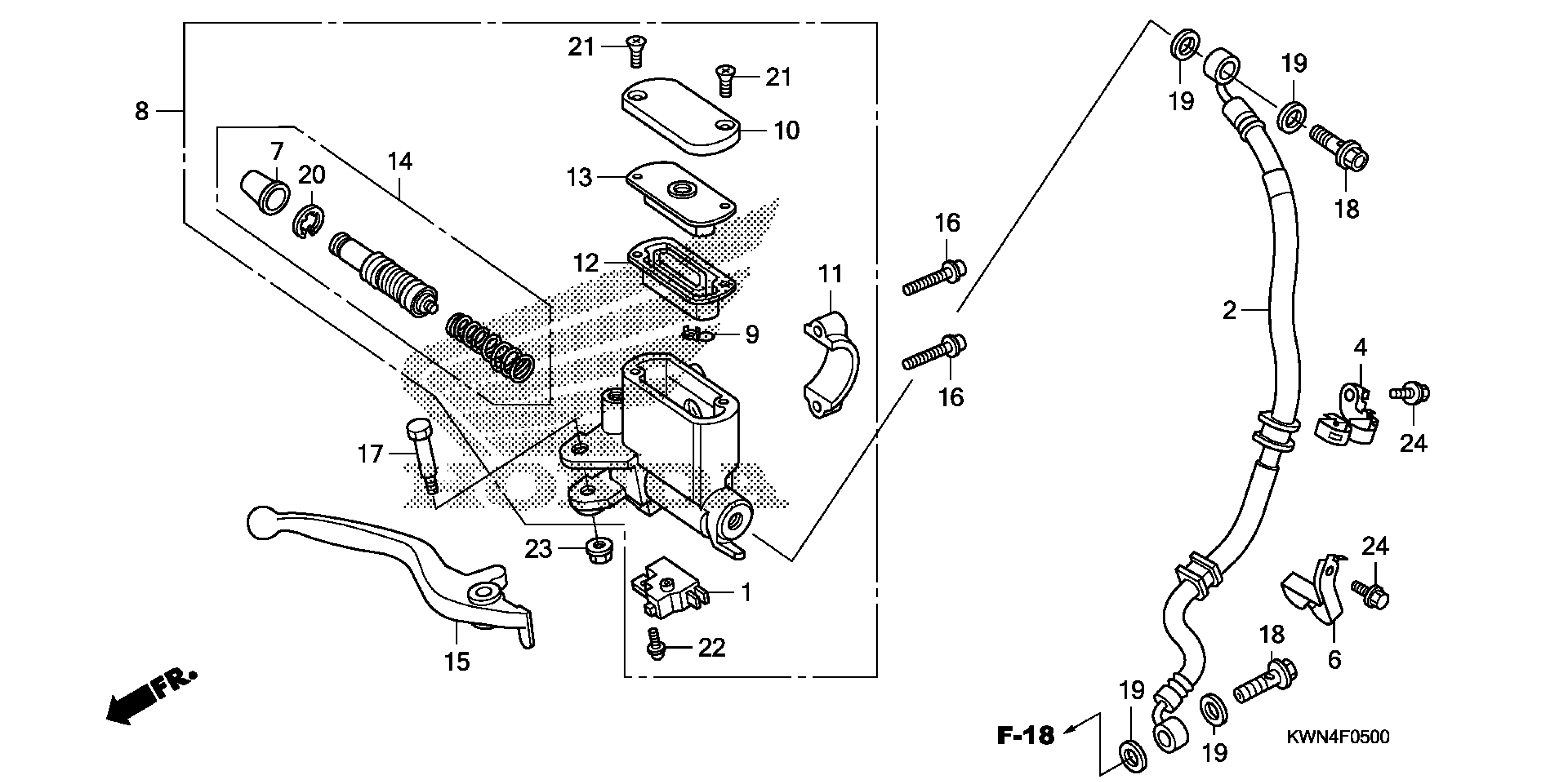

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

HOSE, FR. BRAKE

45126-KWN-701

$26.57

4

CLAMP A, BRAKE HOSE

45155-KWN-930

$1.49

6

CLAMP B, BRAKE HOSE

45157-KWN-930

$1.49

7

BOOT

45504-410-003

$12.16

8

MASTER CYLINDER SUB-ASSY. (COO)

45510-KWN-306

$78.62

9

PROTECTOR

45512-MA6-006

$4.28

10

CAP, MASTER CYLINDER

45513-KWN-671

$20.16

11

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

12

DIAPHRAGM

45520-GW0-911

$7.28

13

PLATE, DIAPHRAGM

45521-GW0-911

$5.72

14

MASTER CYLINDER SET

45530-471-831

$40.86

15

LEVER, R. HANDLEBAR (COO) This part replaces 53175-KWN-305.

53175-KWN-315

$18.06

15

LEVER, R. HANDLEBAR (COO)

53175-KWN-315

$18.06

16

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$1.49

17

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$1.49

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

CIRCLIP

90651-MA5-671

$2.66

21

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

22

SCREW-WASHER (4X12)

93893-04012-07

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
