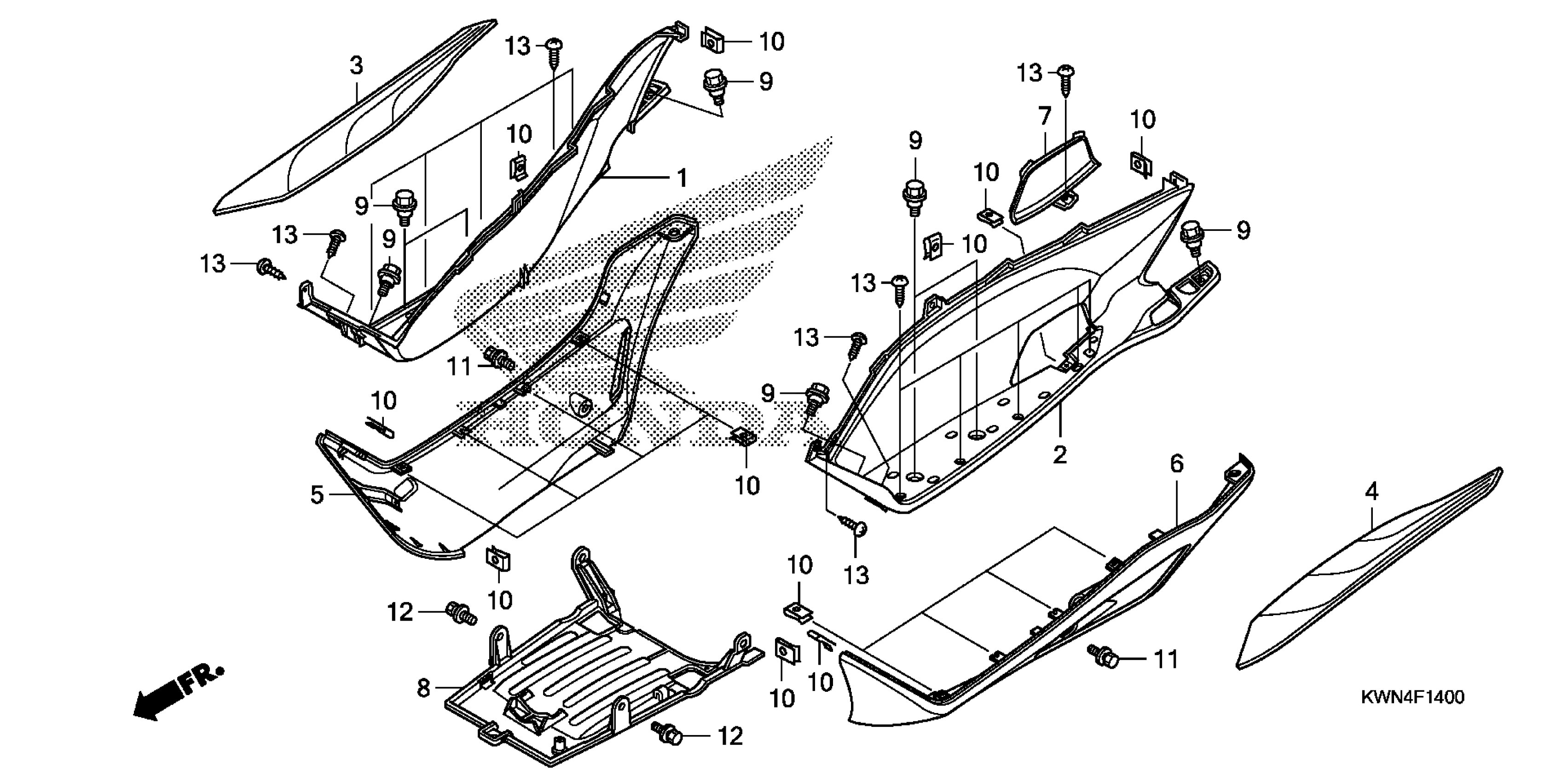

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 FLOOR PANEL Diagram

STEP, R. FLOOR *NH1* (BLACK)

64311-KWN-900ZB

$26.78

STEP, L. FLOOR *NH1* (BLACK)

64321-KWN-900ZB

$28.50

FLOOR MAT, R.

64325-KWN-900

$3.87

FLOOR MAT, L.

64326-KWN-900

$3.87

COVER, R. SIDE *NHA87P* (PEARL HIMALAYAS WHITE) | Pearl himalayas white NHA87P;

64431-KWN-900ZB

$20.18

COVER, R. SIDE *R340C* (CANDY ROSY RED) | Candy rosy red R340C;

64431-KWN-900ZC

$38.50

COVER, L. SIDE *NHA87P* (PEARL HIMALAYAS WHITE) | Pearl himalayas white NHA87P;

64432-KWN-900ZB

$20.16

COVER, L. SIDE *R340C* (CANDY ROSY RED) | Candy rosy red R340C;

64432-KWN-900ZC

$48.90

LID, PLUG MAINTENANCE *NH1* (BLACK)

64434-KWN-900ZB

$7.74

COVER (LOWER)

64530-KWN-901

$123.12

BOLT, FLANGE (6MM)

90116-KVB-900

$0.91

NUT, SPRING (4MM)

90302-SA4-003

$5.04

BOLT-WASHER (6X12)

93404-06012-07

$1.50

BOLT-WASHER (6X12)

93404-06012-00

$1.50

SCREW, TAPPING (4X16)

93903-34480

$0.84
