Description

Price

1

CLUTCH OUTER

22100-KWN-900

$23.81

2

PLATE, DRIVE

22350-KVB-900

$5.99

3

PLATE, CLUTCH SIDE

22361-KVB-900

$2.80

4

SPRING, CLUTCH

22401-KWN-640

$1.20

5

WEIGHT SET, CLUTCH

22535-KWN-900

$30.19

6

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.51

7

BELT, DRIVE

23100-KWN-901

$31.75

8

FACE SET, DRIVEN

23205-KWN-640

$38.04

9

FACE SET, MOVABLE DRIVEN

23224-KWN-640

$28.64

10

PIN, ROLLER GUIDE

23225-KSY-900

$2.61

11

ROLLER, GUIDE

23226-GFM-900

$1.75

11

ROLLER, GUIDE This part replaces 23226-KVB-900.

23226-GFM-900

$1.75

12

SPRING, DRIVEN FACE This part replaces 23233-KWN-900.

23233-KWN-901

$13.61

12

SPRING, DRIVEN FACE

23233-KWN-901

$13.61

13

COLLAR, SEAL

23237-KWN-900

$10.19

14

COLLAR, SPRING

23238-KWN-900

$2.14

15

NUT, SPECIAL (28MM)

90202-KN7-670

$6.01

16

WASHER (12.2X29X2.5)

90441-GY6-940

$2.55

17

CIRCLIP (7MM)

90605-166-720

$1.64

18

BEARING, NEEDLE (20X29X18) (NTN)

91001-KCW-003

$8.53

18

BEARING, NEEDLE (20X29X18) (SCHAEFFLER) This part replaces 91109-KVY-901.

91109-KVY-902

$6.19

18

BEARING, NEEDLE (20X29X18) (SCHAEFFLER)

91109-KVY-902

$6.19

19

BEARING, RADIAL BALL (6902U) (NTN)

91002-GA7-701

$22.08

19

BEARING, RADIAL BALL (6902U) (NSK)

91009-KVY-961

$4.07

20

SEAL, DRIVEN FACE (34X41X4)

91211-KN7-671

$5.91

21

O-RING (38.5X2)

91351-GR1-000

$2.71

22

O-RING, PINION CAP

91351-642-000

$3.92

23

NUT, HEX. (12MM)

94030-12200

$1.58

24

CIRCLIP (INNER) (28MM)

94520-28000

$1.16

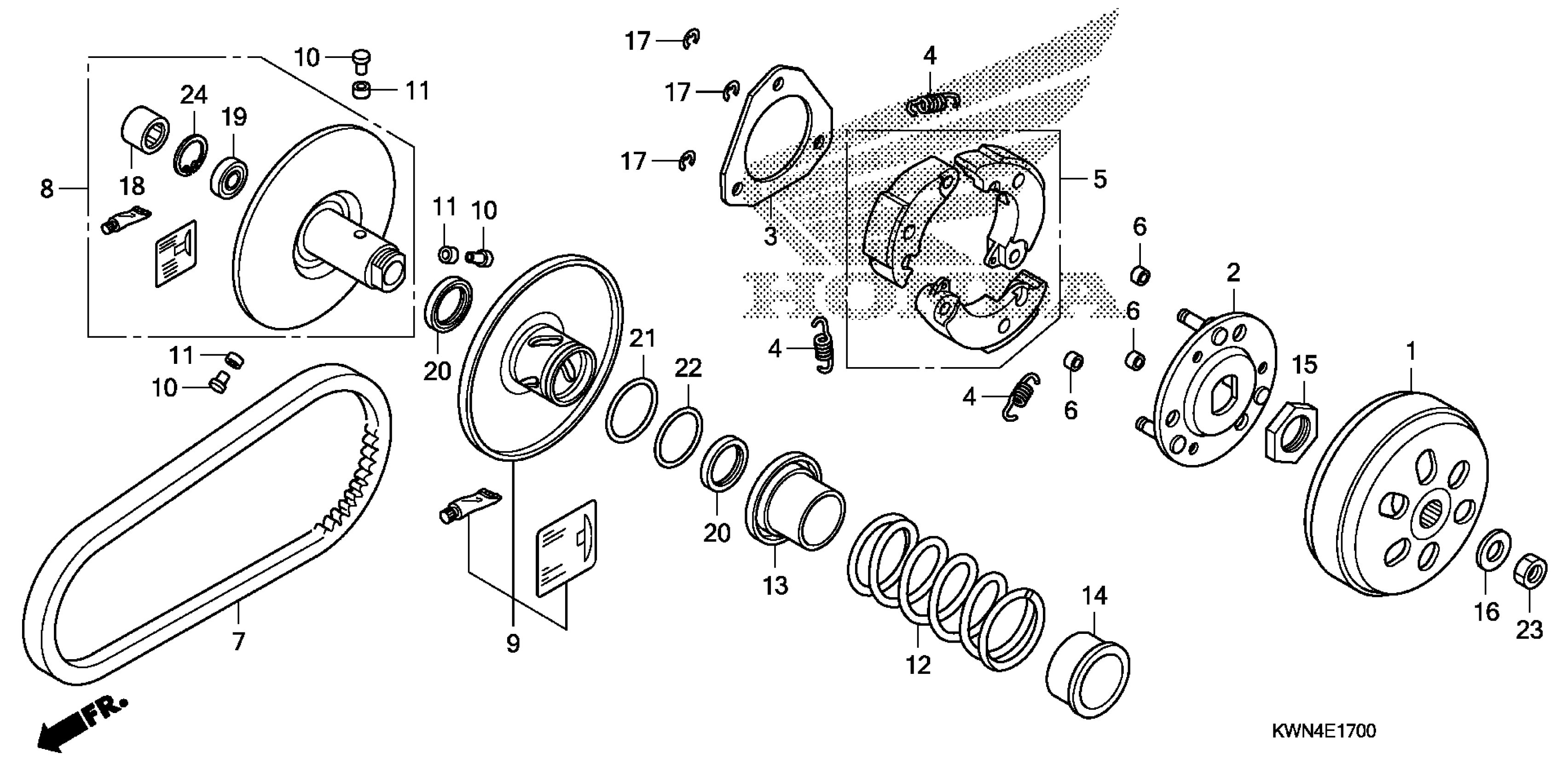

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 DRIVEN FACE Diagram
