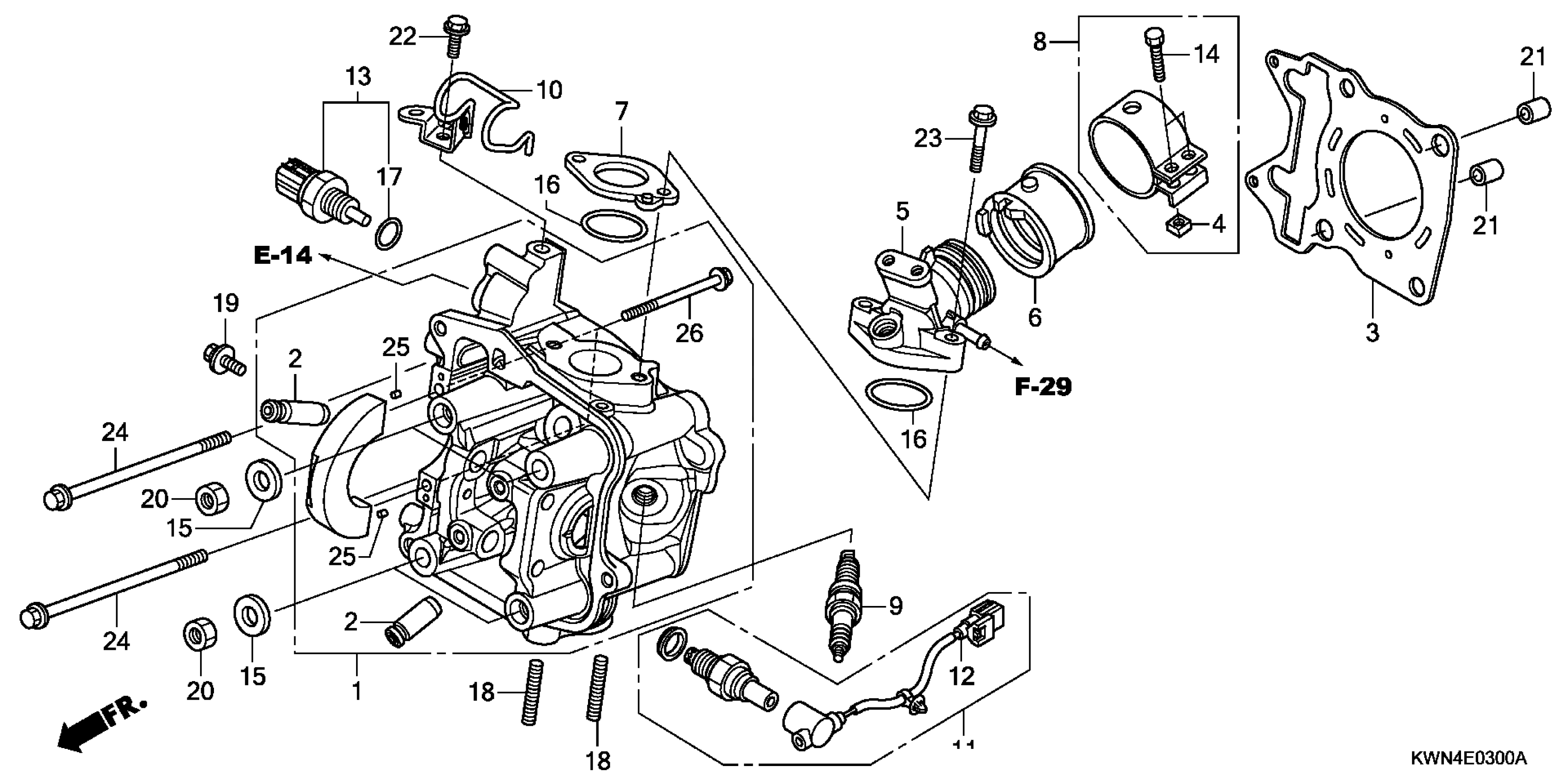

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-KWN-900

$148.03

GUIDE, VALVE (OVER SIZE)

12204-KWN-P00

$10.35

GASKET, CYLINDER HEAD

12251-KWN-901

$4.00

GASKET, CYLINDER HEAD (OVER SIZE) | (Optional).

12252-KWN-900

$92.62

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

PIPE, INLET

17110-KWN-670

$84.56

INSULATOR, THROTTLE BODY

17112-KWN-900

$66.62

INSULATOR, IN. PIPE

17119-KWN-900

$3.57

BAND, INSULATOR

17255-KWN-900

$1.82

SPARK PLUG (CPR7EA-9) (NGK)

31917-KPH-901

$4.33

STAY, ENGINE HARNESS

32962-KWN-900

$1.49

SENSOR, OXYGEN

36532-KWN-901

$78.80

WIRE, OXYGEN SENSOR

36533-KWN-901

$32.18

SENSOR ASSY., WATER TEMPERATURE

37870-HW1-671

$24.75

BOLT, RECESSED (5X22)

90005-MEJ-000

$1.49

WASHER (8MM)

90483-KWN-900

$1.49

O-RING (29X2)

91301-KRJ-901

$3.20

O-RING (9.5X1.5) (HONDA KIKAKI)

91307-PK2-005

$2.34

BOLT, STUD (8X20)

90035-KWN-900

$1.49

BOLT-WASHER (6X12)

93404-06012-00

$1.55

NUT, HEX. (8MM)

94030-08280

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X95)

95701-06095-00

$1.92

PIN, DOWEL (3X5)

94303-03050

$2.25

BOLT, FLANGE (6X80)

96001-06080-00

$2.21
