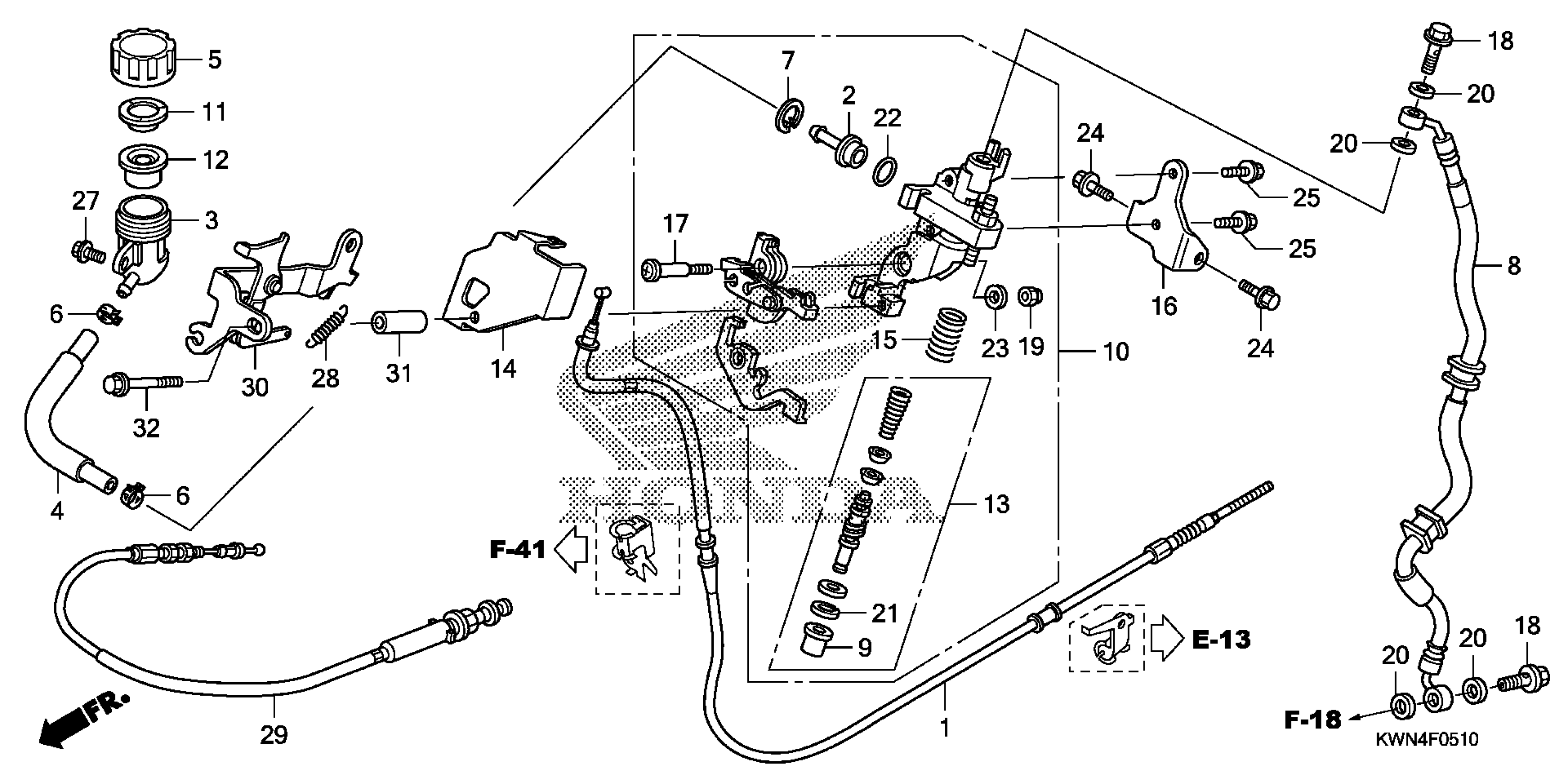

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 BRAKE MASTER CYLINDER (CBS) Diagram

#

Description
Price

1

CABLE, RR. BRAKE SECOND

43450-KWN-931

$50.61

2

CONNECTOR

43503-KZ3-B01

$9.14

3

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.26

4

HOSE, MASTER CYLINDER

43512-KWN-931

$1.86

5

CAP, MASTER CYLINDER

43513-KWN-671

$7.51

6

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

7

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.55

8

HOSE, CBS

45127-KWN-701

$22.28

9

BOOT

45504-410-003

$10.93

10

MASTER CYLINDER SUB-ASSY. (COO) This part replaces 43510-KWN-671.

43510-K36-305

$90.17

10

MASTER CYLINDER SUB-ASSY. (COO)

43510-K36-305

$90.17

11

PLATE, DIAPHRAGM

45518-GM9-711

$4.16

12

DIAPHRAGM

45520-GM9-711

$8.22

13

MASTER CYLINDER SET

45530-KVY-911

$23.49

14

COVER, MASTER CYLINDER This part replaces 47602-KWN-670.

47602-KWN-671

$11.77

14

COVER, MASTER CYLINDER

47602-KWN-671

$11.77

15

SPRING, DELAY

47604-KWN-931

$0.78

16

STAY, MASTER CYLINDER

50320-KWN-931

$2.61

17

BOLT, PIVOT

90114-GEV-712

$1.39

18

BOLT, OIL (10X22)

90145-MS9-612

$6.82

19

NUT, U (6MM)

90301-GEV-711

$0.71

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

CIRCLIP

90651-MA5-671

$2.38

22

O-RING (14.8X2.4)

91212-422-006

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM)

94101-06800

Unavailable

24

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

25

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

27

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

28

SPRING B, BRAKE LOCK CABLE RETURN

46510-KJ9-000

$3.68

29

CABLE, BRAKE LOCK

46620-KWN-671

$22.67

30

STAY, BRAKE LOCK

47660-KWN-670

$114.14

31

COLLAR, BRAKE LOCK STAY

47665-KWN-670

$2.57

32

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

32

BOLT, FLANGE (6X45)

95701-06045-07

$1.97
