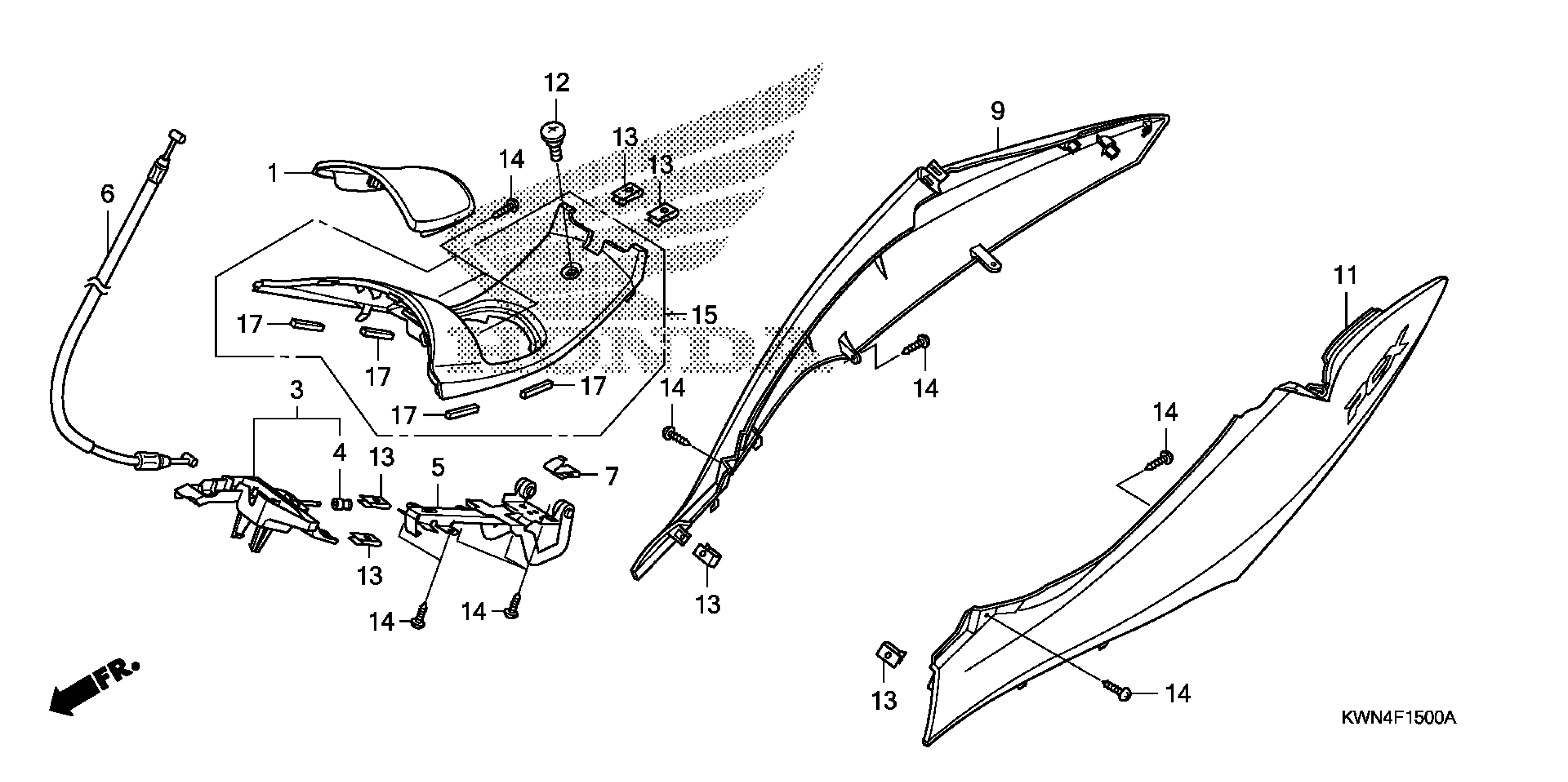

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 BODY COVER Diagram

#

Description
Price

1

LID, FUEL *NH1* (BLACK)

64405-KWN-900ZB

$1.76

3

PIN ASSY., FUEL LID LOCK

64440-KWN-901

$14.26

4

CAP, FUEL LID LOCK

64443-KVG-900

$0.94

5

HINGE ASSY., FUEL LID

64450-KWN-900

$13.13

6

CABLE, FUEL LID

64455-KWN-701

$50.81

7

SPRING This part replaces 74494-S84-A01.

74494-S84-A10

$2.10

9

COVER SET, R. BODY *NHA87P* (WL) (PEARL HIMALAYAS WHITE) This part replaces 83550-KWN-901ZD.

83550-KWN-902ZD

$54.03

9

COVER SET, R. BODY *R340C* (WL) (CANDY ROSY RED) This part replaces 83550-KWN-901ZE.

83550-KWN-902ZE

$53.13

9

COVER SET, R. BODY *NHA87P* (WL) (PEARL HIMALAYAS WHITE)

83550-KWN-902ZD

$54.03

9

COVER SET, R. BODY *R340C* (WL) (CANDY ROSY RED)

83550-KWN-902ZE

$53.13

11

COVER SET, L. BODY *R340C* (WL) (CANDY ROSY RED) | Candy rosy red R340C; This part replaces 83650-KWN-900ZE.

83650-KWN-902ZE

$50.00

11

COVER SET, L. BODY *NHA87P* (WL) (PEARL HIMALAYAS WHITE) This part replaces 83650-KWN-901ZD.

83650-KWN-902ZD

$49.35

11

COVER SET, L. BODY *R340C* (WL) (CANDY ROSY RED) This part replaces 83650-KWN-901ZE.

83650-KWN-902ZE

$50.00

11

COVER SET, L. BODY *NHA87P* (WL) (PEARL HIMALAYAS WHITE)

83650-KWN-902ZD

$49.35

11

COVER SET, L. BODY *R340C* (WL) (CANDY ROSY RED)

83650-KWN-902ZE

$50.00

12

SCREW, SPECIAL (5MM)

90104-KZ3-B00

$3.73

13

NUT, SPRING (4MM)

90302-SA4-003

$5.04

14

SCREW, TAPPING (4X16)

93903-34480

$0.84

15

COVER SET, CENTER *NH1* (BLACK)

64400-KWN-900ZA

$7.18

17

SEAL B, CENTER COVER

64412-KWN-900

$1.28

18

SCREW-WASHER (4X16)

93891-04016-08

$1.06
