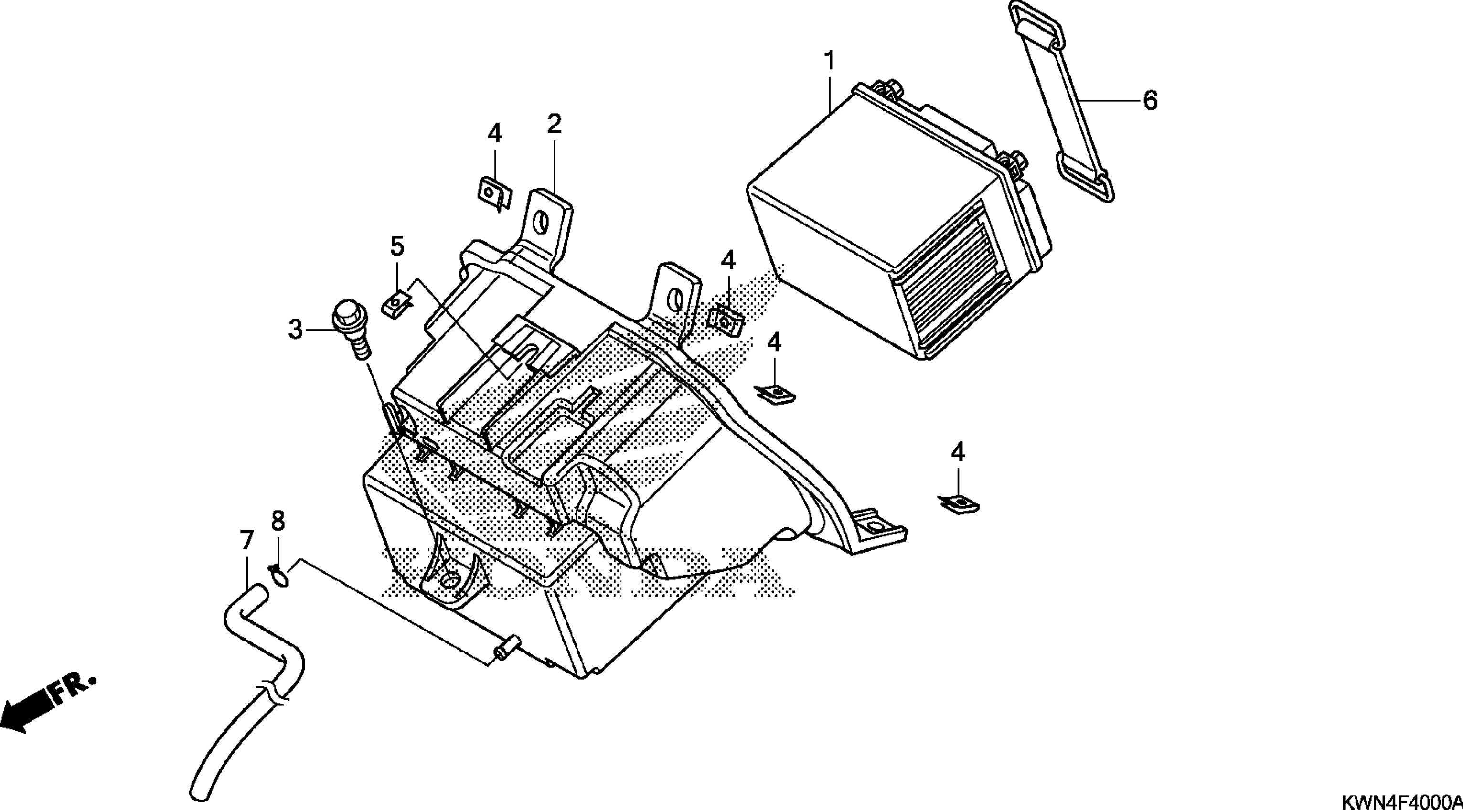

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 BATTERY Diagram

#

Description

Price

1

BATTERY (YTZ7S) This part replaces 31500-HP1-600.

31500-HP1-602

$127.24

1

BATTERY (YTZ7S) This part replaces 31500-HP1-601.

31500-HP1-602

$127.24

1

BATTERY (YTZ7S) This part replaces 31500-HP1-601AH.

31500-HP1-602

$127.24

1

BATTERY (YTZ7S) This part replaces 31500-KGB-901.

31500-HP1-602

$127.24

2

BOX, BATTERY

81320-KWN-901

$55.96

3

BOLT, FLANGE (6MM)

90116-KVB-900

$0.90

4

NUT, CLIP (6MM)

90305-GEE-710

$1.48

5

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

6

BAND B2, BATTERY

95012-13001

$4.92
