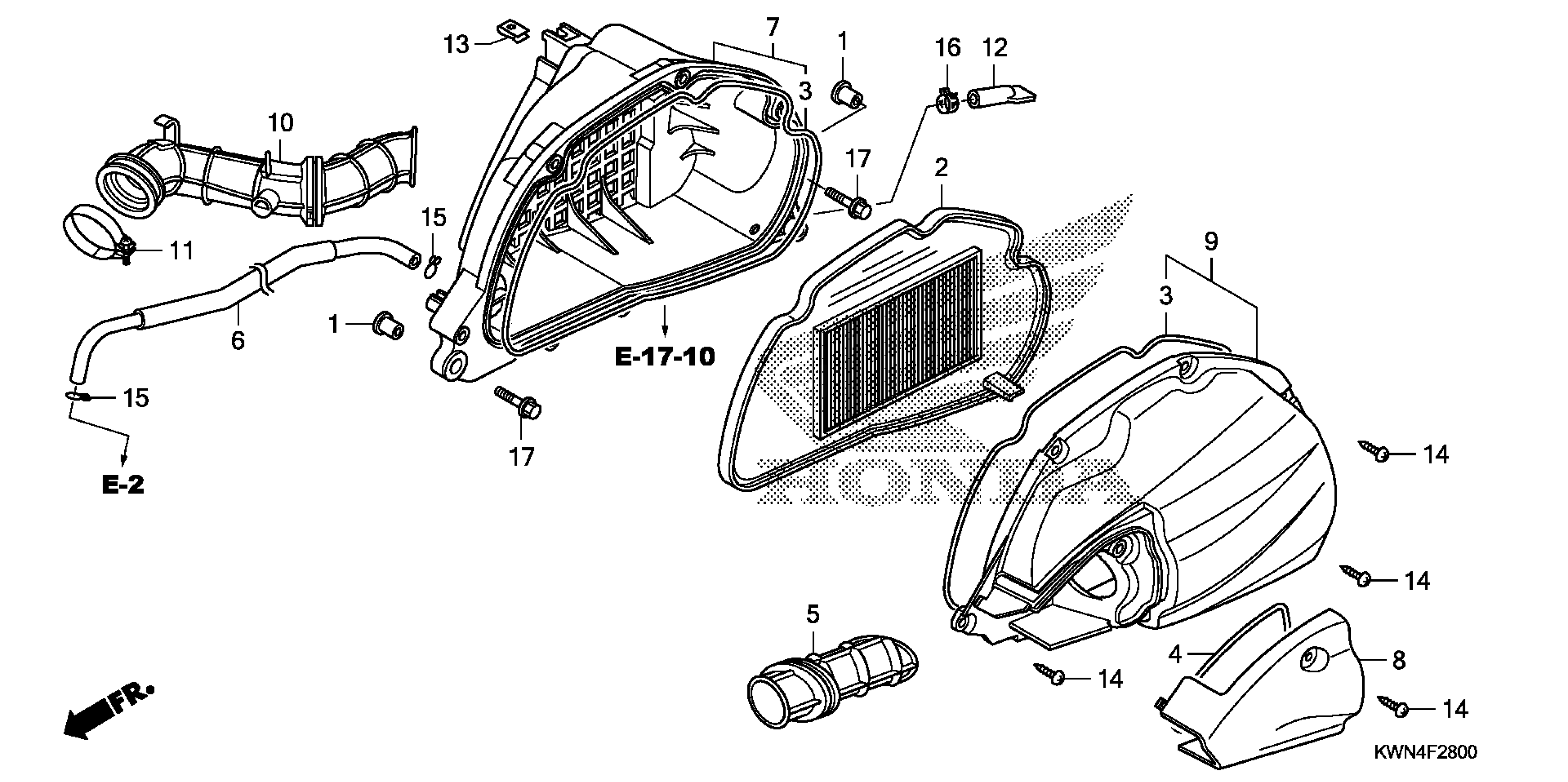

Honda PCX125A (11) PCX125, THA, VIN# MLHJF280-B5000001 AIR CLEANER Diagram

COLLAR, AIR CLEANER SETTING

17208-GR1-010

$2.78

ELEMENT, AIR CLEANER

17210-KWN-900

$5.78

SEAL, AIR CLEANER

17212-KWN-900

$1.42

SEAL, DUCT COVER

17213-KWN-900

$0.57

DUCT, AIR CLEANER

17215-KWN-900

$2.62

TUBE, BREATHER

17218-KWN-900

$6.52

CASE SUB-ASSY., AIR CLEANER

17225-KWN-900

$5.83

COVER, AIR CLEANER DUCT

17234-KWN-900

$1.25

COVER SUB-ASSY., AIR CLEANER

17245-KWN-900

$5.54

TUBE, AIR CLEANER CONNECTING

17253-KWN-900

$10.30

BAND, CONNECTING TUBE (46)

17254-KWN-900

Unavailable

TUBE, DRAIN

17261-KWN-900

$0.84

NUT, CLIP (6MM)

90305-GEE-710

$1.48

SCREW, TAPPING (5X20)

93903-25480

$0.61

CLIP, TUBE (B12.5)

95002-02130

$1.04

CLAMP, TUBE (D12)

95002-41200-08

$2.30

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
