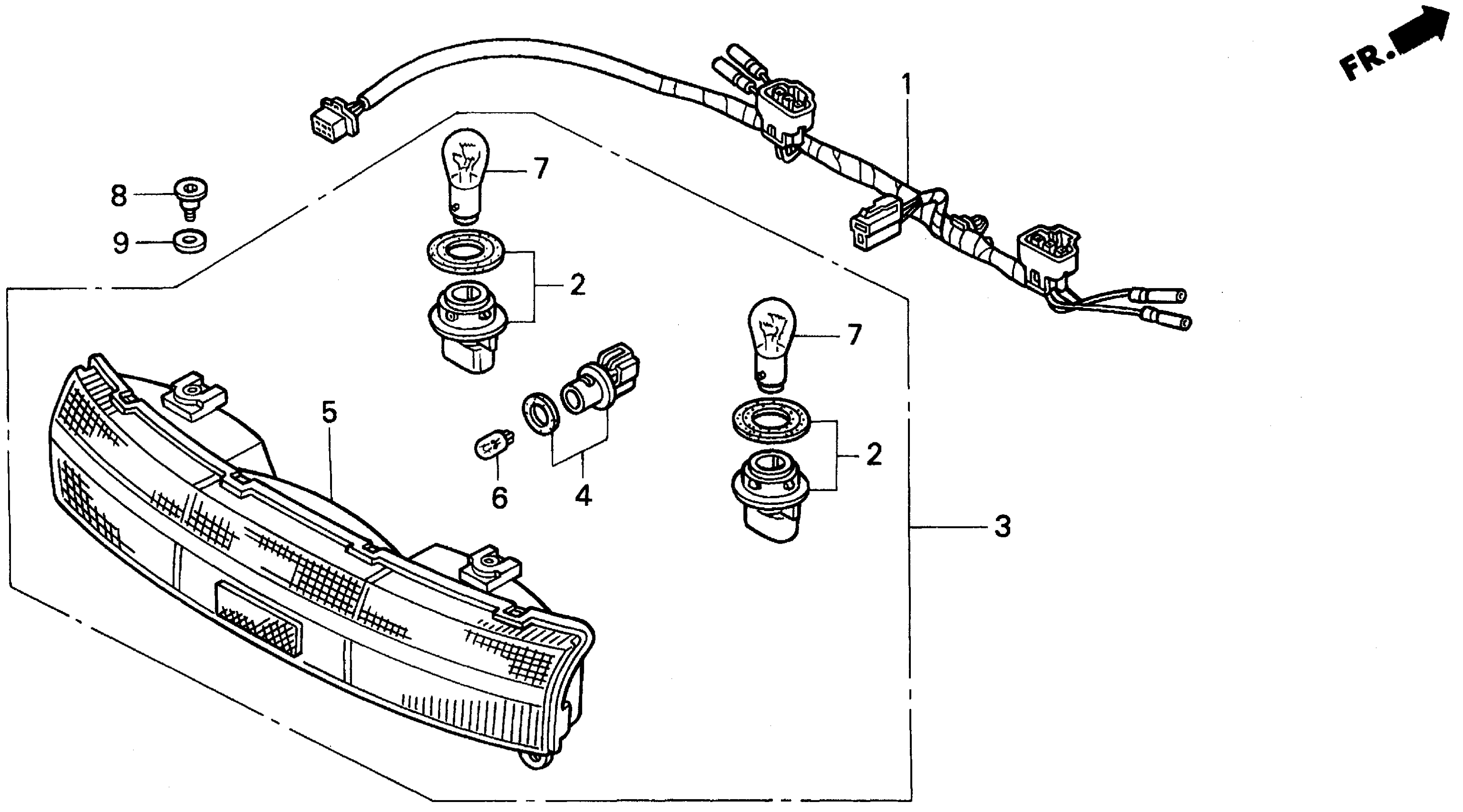

Honda PC800A (98) PACIFIC COAST, JPN, VIN# JH2RC340-WM600001 TAILLIGHT Diagram

#

Description

Price

1

SUB-HARNESS, TAIL

32103-MR5-870

Unavailable

2

SOCKET, BULB (3P)

33405-MR5-671

Unavailable

4

SOCKET, BULB (2P)

33705-MR5-671

Unavailable

5

LENS, TAILLIGHT

33710-MR5-672

Unavailable

6

BULB (12V 5W 3CP) (STANLEY)

34901-SB0-671

$3.14

7

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$3.86

8

BOLT,FLANGE,6X14 This part replaces 90113-MR5-000.

90113-KAZ-000

Unavailable

9

WASHER, SEALING (8.5MM)

90510-MR5-000

Unavailable
