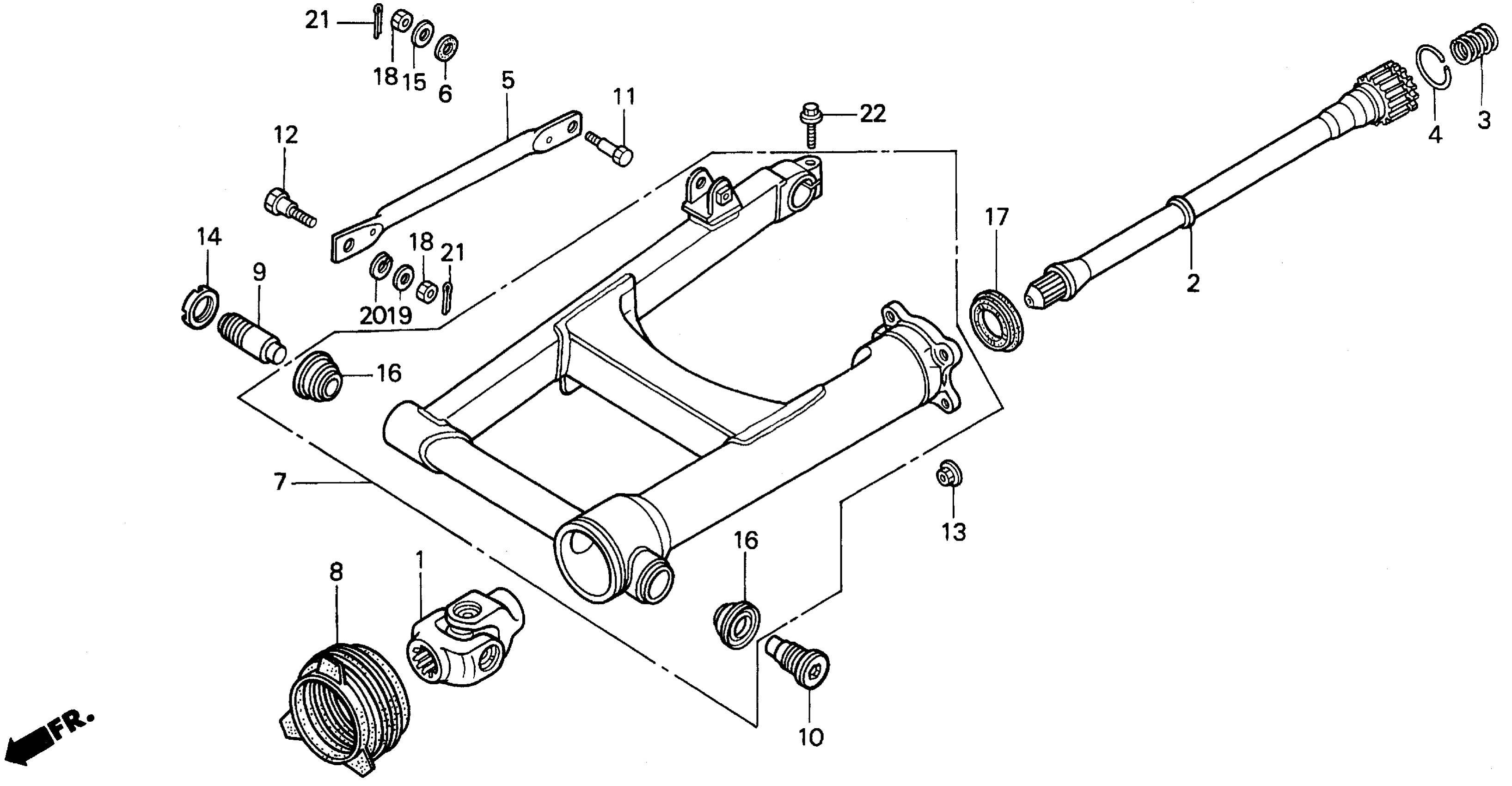

Honda PC800A (98) PACIFIC COAST, JPN, VIN# JH2RC340-WM600001 SWINGARM Diagram

#

Description
Price

1

JOINT, YOKE

40200-MR5-003

Unavailable

2

SHAFT, PROPELLER

40201-MK7-003

Unavailable

3

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

4

RING, STOPPER

40221-MB0-000

$4.53

5

ARM, RR. BRAKE STOPPER

43431-MK4-000

Unavailable

6

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

7

SWINGARM ASSY., RR.

52100-MR5-000

Unavailable

8

BOOT, JOINT

52104-MR5-000

Unavailable

9

BOLT, R. SWINGARM PIVOT

90121-MK7-770

$46.38

10

BOLT, L. SWINGARM PIVOT

90124-MK7-770

$26.16

11

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

12

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

13

NUT, HEX. (10MM)

90308-357-000

$4.85

14

NUT, LOCK (23MM)

90354-MK7-770

Unavailable

15

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

16

BEARING, TAPER ROLLER (30202) (NOT AVAILABLE) This part replaces 91066-MR6-671.

91066-MR6-672

Unavailable

16

BEARING, TAPER ROLLER (30202)

91066-MR6-672

Unavailable

17

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

WASHER, SPRING (10MM)

94111-10000

$1.49

21

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

21

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

21

PIN, SPLIT (2.0X22)

94201-20220

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

21

PIN, COTTER (2.0X35)

94201-20350

$1.49

21

PIN, COTTER (2.0X22)

94201-29220

$1.49

22

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
