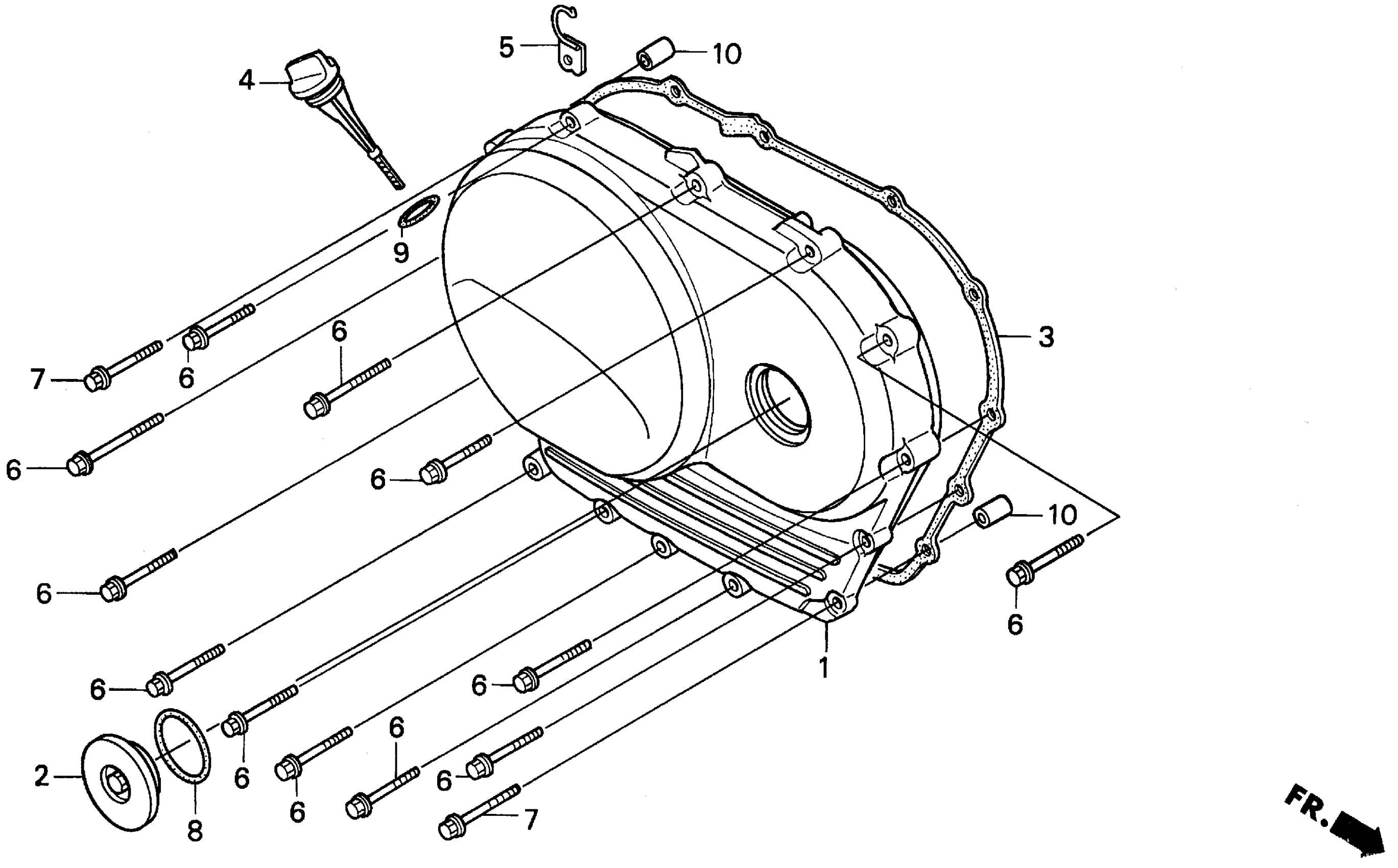

Honda PC800A (98) PACIFIC COAST, JPN, VIN# JH2RC340-WM600001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MR5-670

Unavailable

2

CAP (45MM)

11332-MM5-000

$21.56

3

GASKET, R. CRANKCASE COVER

11394-MR5-801

$23.01

4

DIPSTICK, OIL

15650-MK7-670

Unavailable

5

CLAMP, STARTER CABLE

31250-MR5-870

Unavailable

6

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.79

7

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$3.95

8

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.66

9

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.55

9

O-RING (22X3.0)

91307-425-003

$2.55

10

PIN, DOWEL (8X14)

94301-08140

$2.04
